MP-IP500

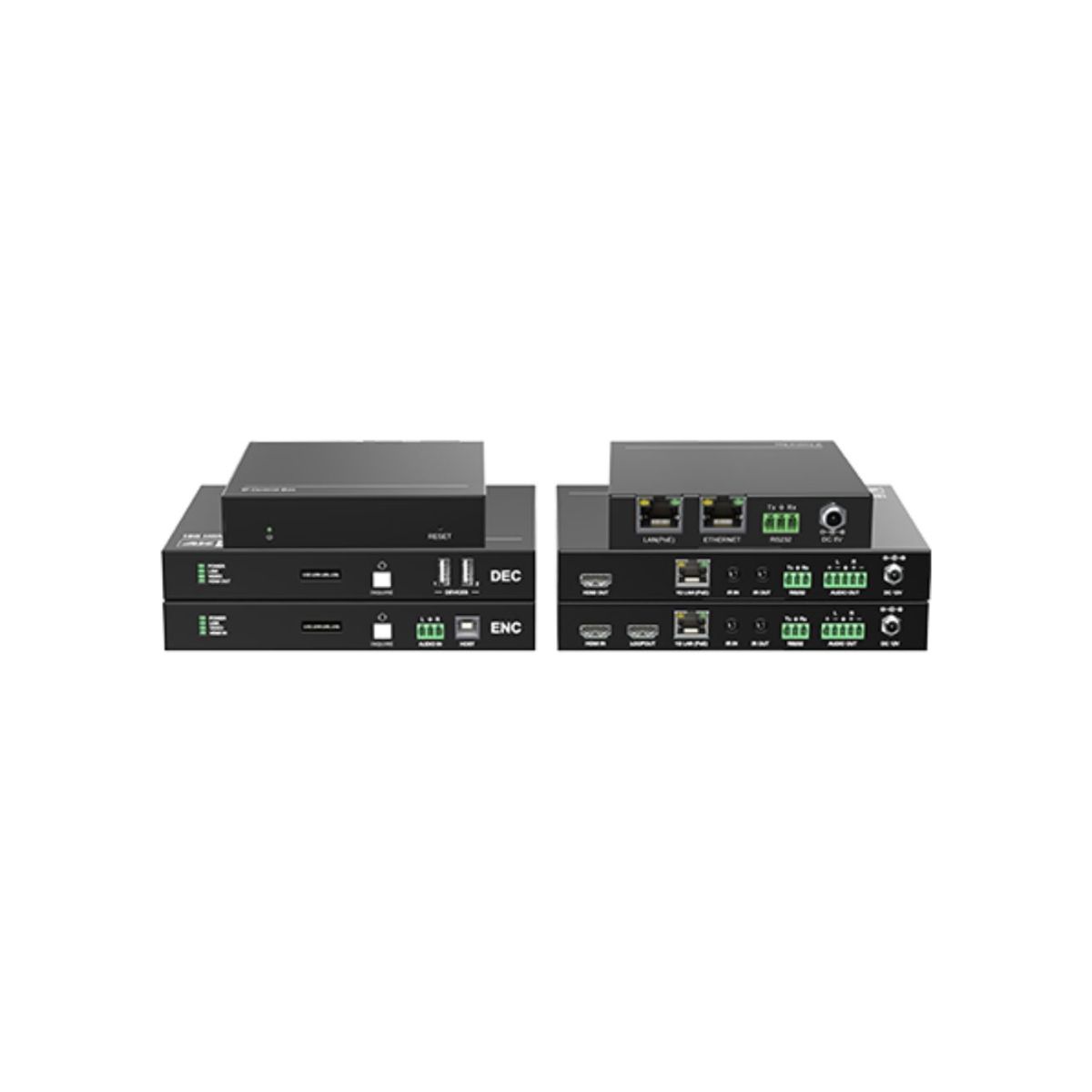

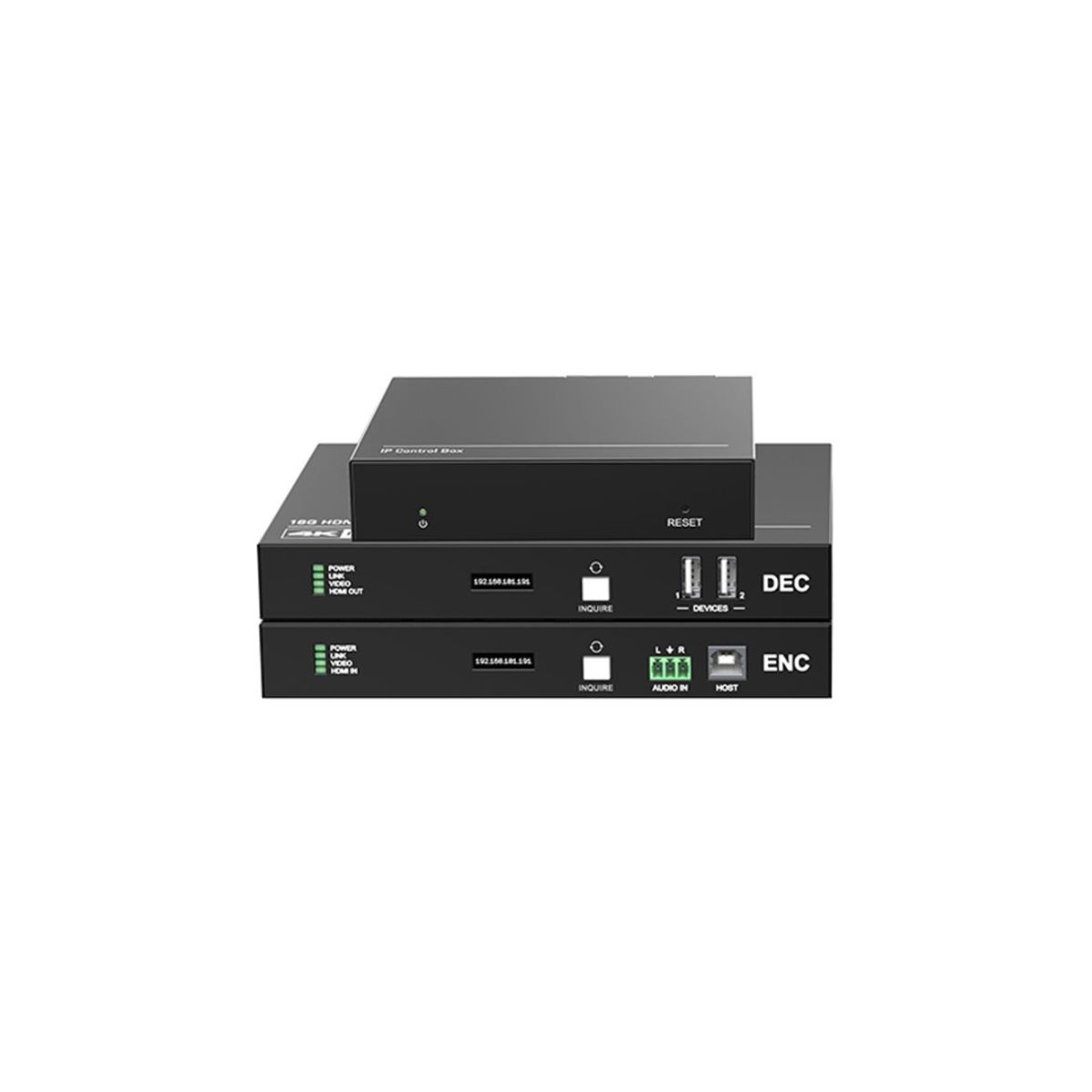

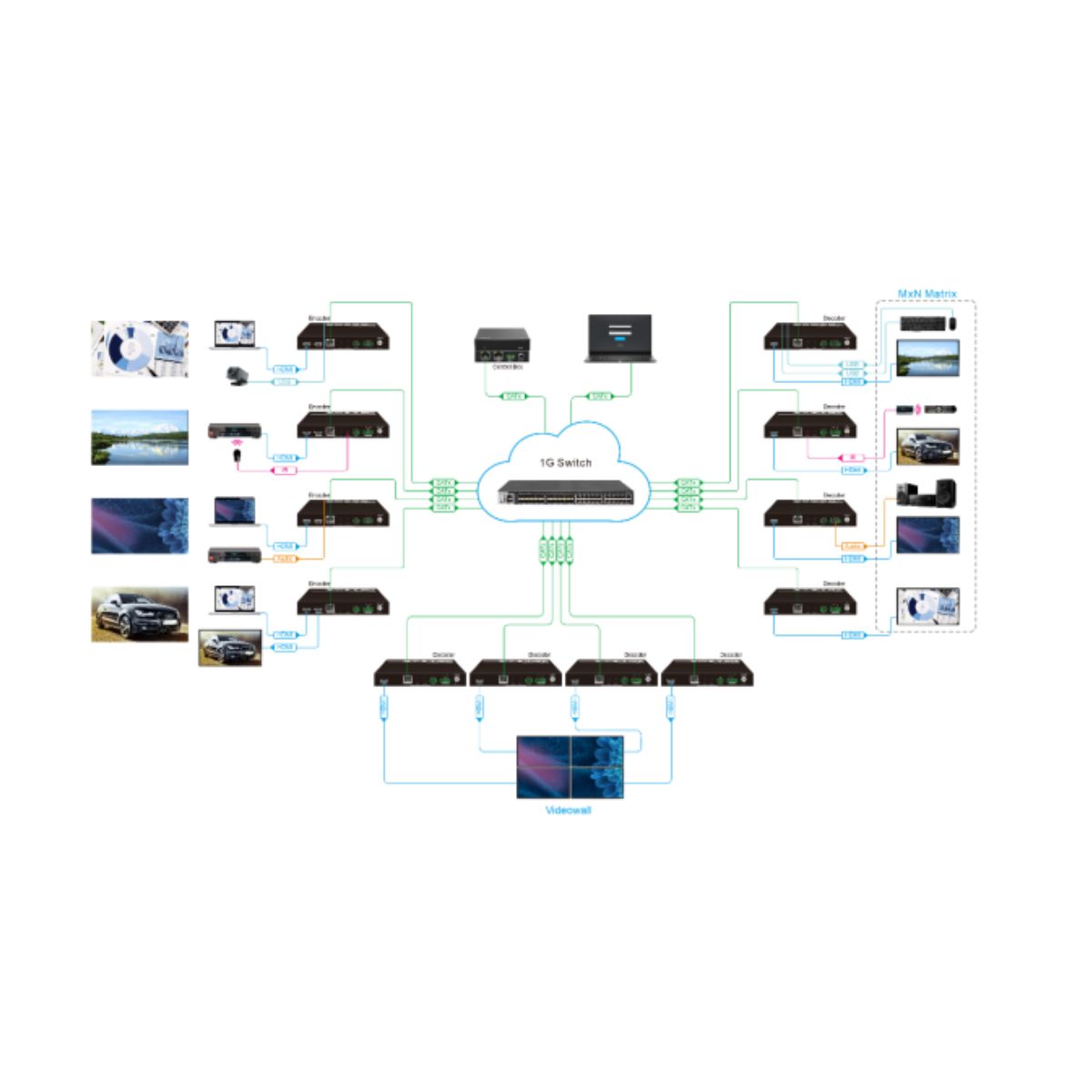

The MP-IP500 is an advanced network AV extender featuring HDMI encoder and decoder capabilities, supporting resolutions up to 4K@60Hz 4:4:4 with HDR. It is designed to transmit HDMI signals and control data over an IP network, with distances of up to 100m over CATx cable. Working with a control PC (Wake-on-IP Control Box) and a 1GbE network switch, the MP-IP500 provides flexible control and distribution across multiple devices. Powered by advanced Aspeed technology, it delivers a powerful IP streaming solution that seamlessly integrates various IP/AV standards into a unified system.
- Streams 4K video with 1-frame latency
- Supports HDMI video resolution up to 4K@60Hz, 4:4:4 8bit.
- Transports RS232 and IR signals to any unit
- Supports Video Wall mode up to 9x9 screens.
- Selectable output resolutions with up to 4K scaling capability.
- Additional 3-pin terminal block for audio embedding.
- IP control box for TCP/IP control.
| Input | |
| Video Input | (1) HDMI |
| Video Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Audio Input | (1) Analog Audio In |
| Audio Input Connector | (1) 3-Pin terminal block |
| Output | |
| Video Output | (1) IP Stream, (1) HDMI |
| Video Output Connector | (1) RJ45, (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Audio Output | (1) IP Stream, (1) De-embedding Output |
| Audio Output Connector | (1) RJ45, (1) 5-Pin terminal block |
| General | |
| Control | (1) IR IN, (1) IR OUT, (1) RS232, (1) host |
| Control Connector | (2) 3.5mm jack, (1) 3-pin terminal block, (1) USB-B |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Consumption | 7.8W (Max) |
| Dimension (W*H*D) | 180 x 142.7 x 25 mm |
| Net Weight | 570g |
