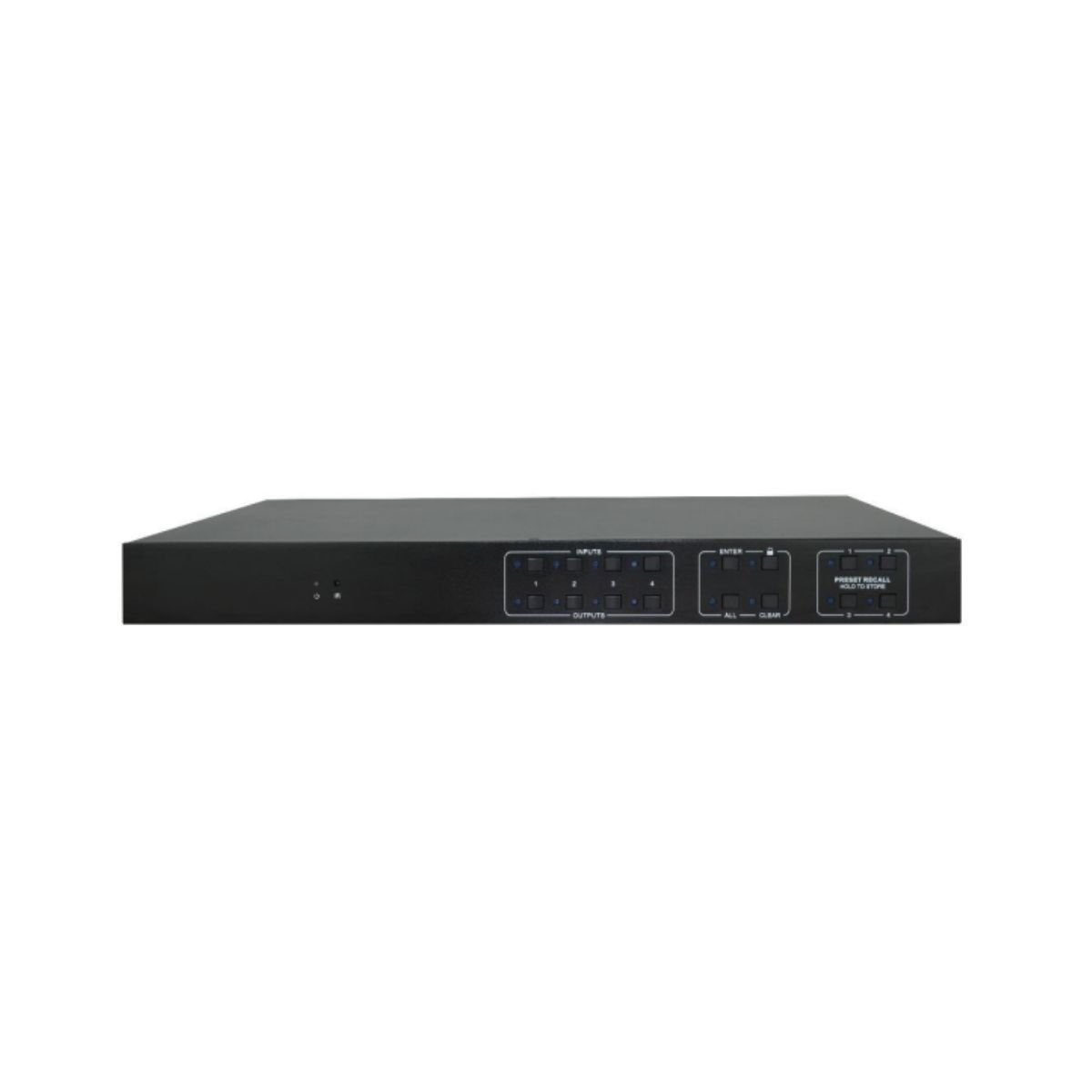

MP-MUH44A2-H2
The MP-MUH44A2-H2 is a professional 4x4 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 4 HDMI inputs, 4 HDMI outputs, and the last two outputs with downscaling function, which is designed for switching two HDMI2.0 and HDCP2.3 compliant It also features 4 SPDIF and 4 analog audio outputs for the audio matrix.
- 4x4 HDMI 2.0 Matrix Switcher.
- Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant.
- Audio Matrix, audio out can be de-embedded from arbitrary input or output.
- Individual volume adjustment on each L+R output
- Supports 4K to 1080p down-scaling up to 2 outputs.
- HDMI out provides 2.5W to power Active Optical Cable (AoC).
- HDMI Output supports up to 5V, 500mA for AoC cable
- Controllable by front panel, IR, RS232, and TCP/IP.
Video
| Video Input | (4) HDMI |
| Video Input Connector | (4) Type-A female HDMI |
| Video input Video Resolution | Up to 4K@60Hz 4:4:4 |
| Video Output | (4) HDMI |
| Video Output Connector | (4) Type-A female HDMI |
| Video output Video Resolution | Up to 4K@60Hz 4:4:4 |
| HDMI Output | Supports up to 5V500mA for AoC cable |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.3 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
