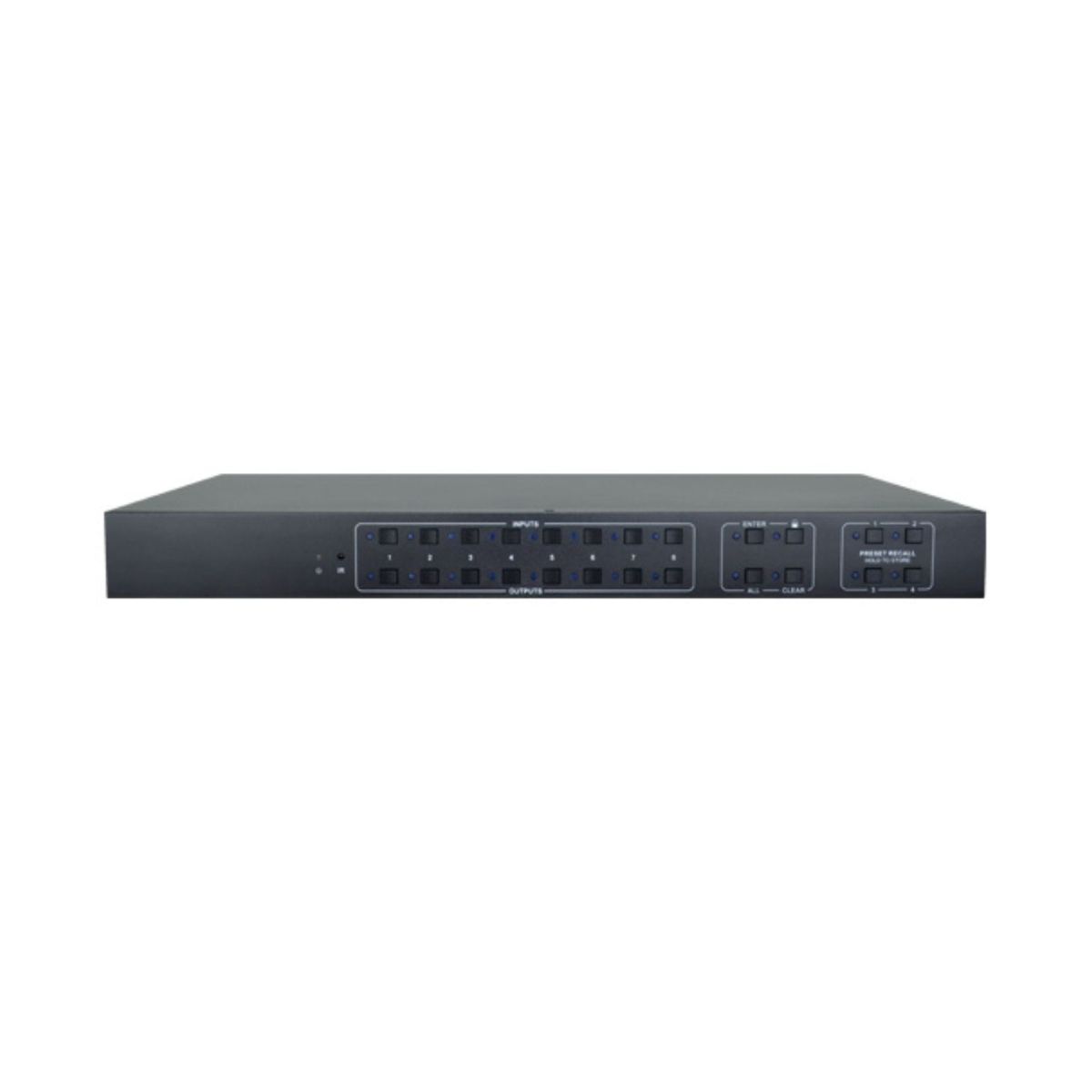

MP-MUH88A2-H2

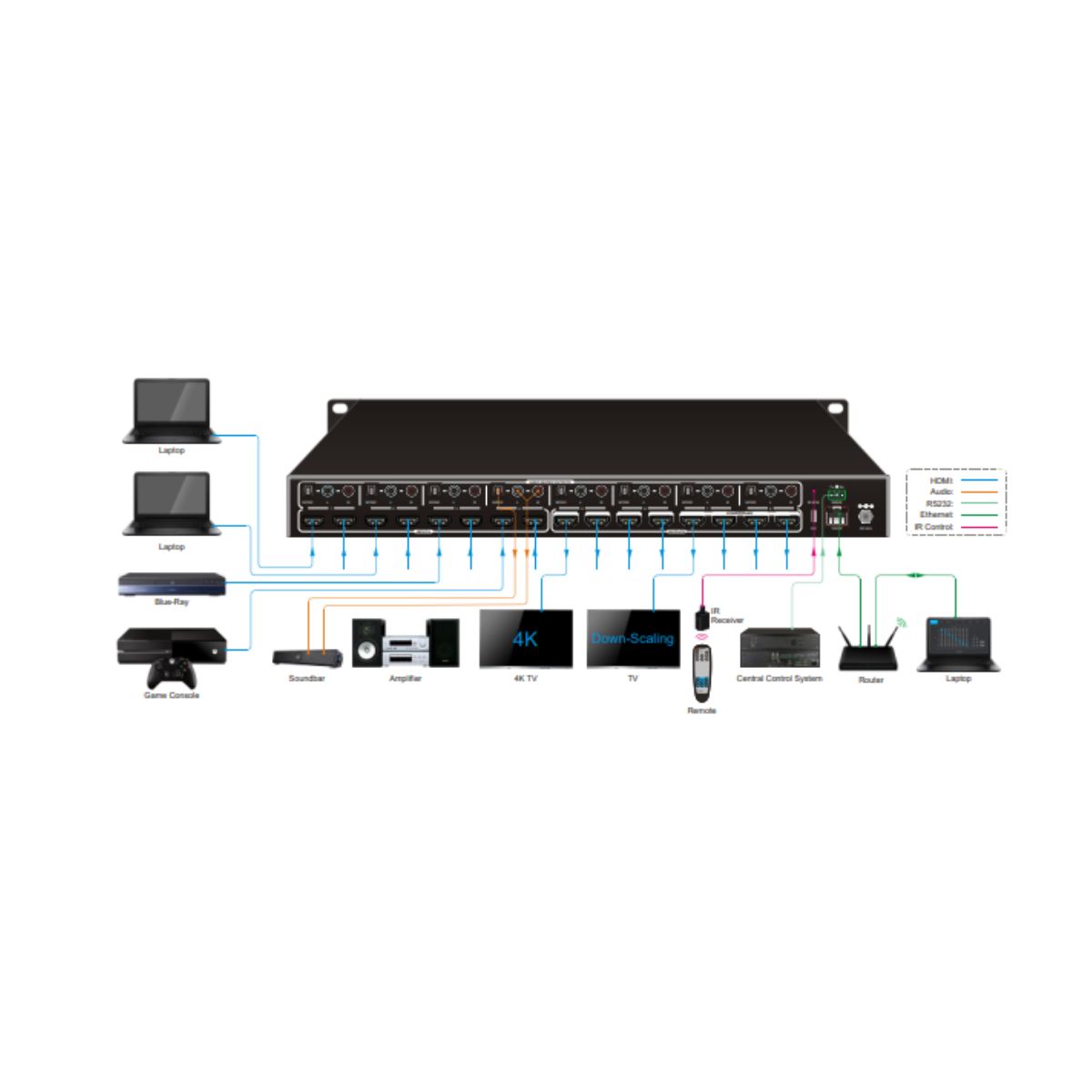

The MP-MUH88A2-H2 is a professional 8x8 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 8 HDMI inputs, 8 HDMI outputs and the last four outputs with down-scaling function, which is designed for switching four HDMI2.0 and HDCP2.3 compliant signals. It also features 8 SPDIF and 8 analog audio outputs for the audio matrix

Contact to Seller
  • 8x8 HDMI 2.0 Matrix Switcher.
  • Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant.
  • Audio Matrix, audio out can be de-embedded from arbitrary input or output.
  • Individual volume adjustment on each L+R output.
  • Supports 4K to 1080p down-scaling up to 4 outputs.
  • HDMI out provides 2.5W to power Active Optical Cable (AOC).
  • HDMI Output supports up to 5V, 500mA for the AOC cable
  • Controllable by front panel, IR, RS232, and TCP/IP.
Download Product catalog

Video

Video Input (8) HDMI
Input Connector (8) Type-A female HDMI
HDMI Input Resolution Up to 4K@60Hz 4:4:4, HDR
Video Output (8) HDMI
Output Connector (8) Type-A female HDMI

Digital Audio Output

Output (8) Digital SPDIF audio
Output Connector (8) Toslink connector
Digital SPDIF Audio Format Supports PCM, Dolby Digital, DTS, DTS-HD
Frequency Response 20Hz – 20KHz,±1dB
THD+N < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
