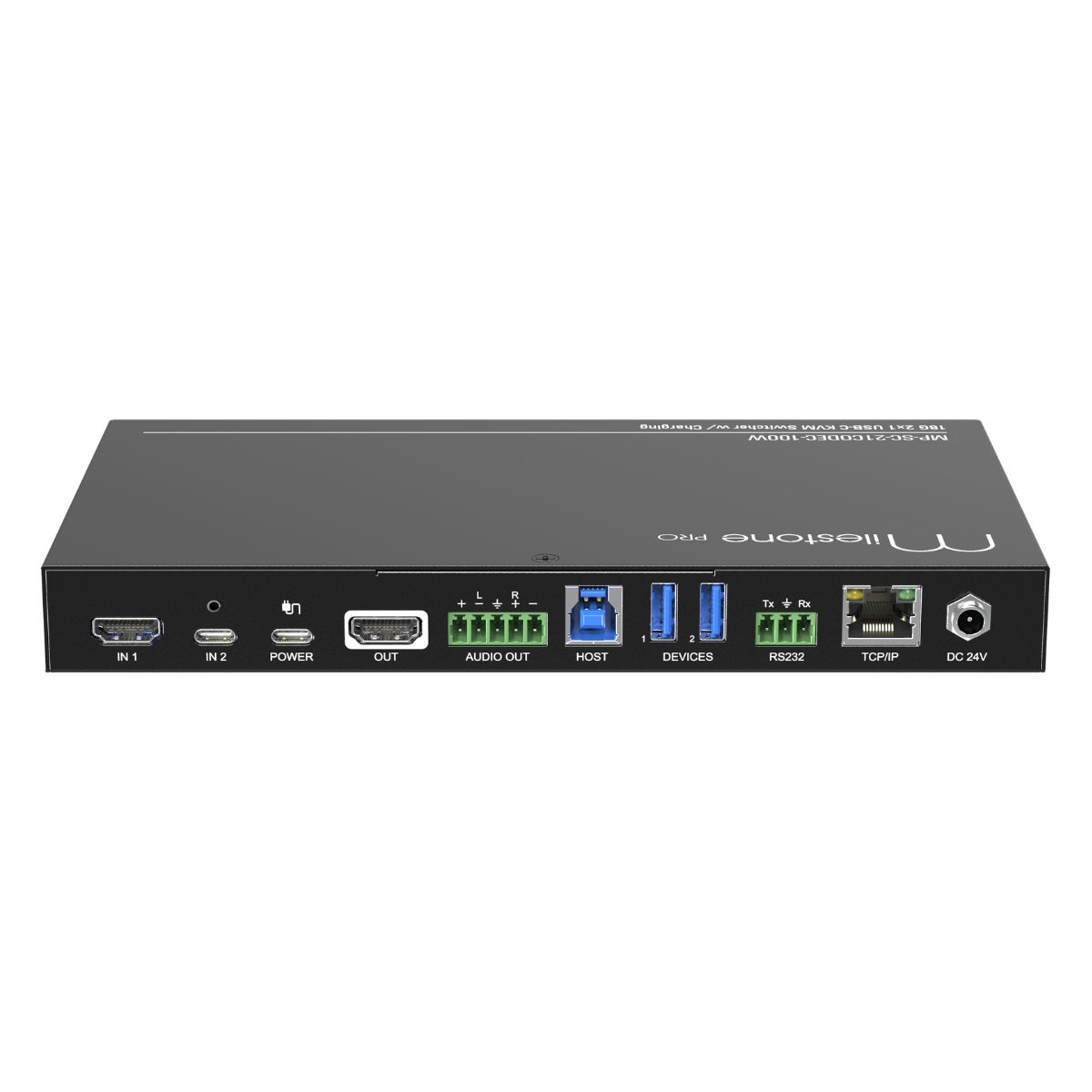

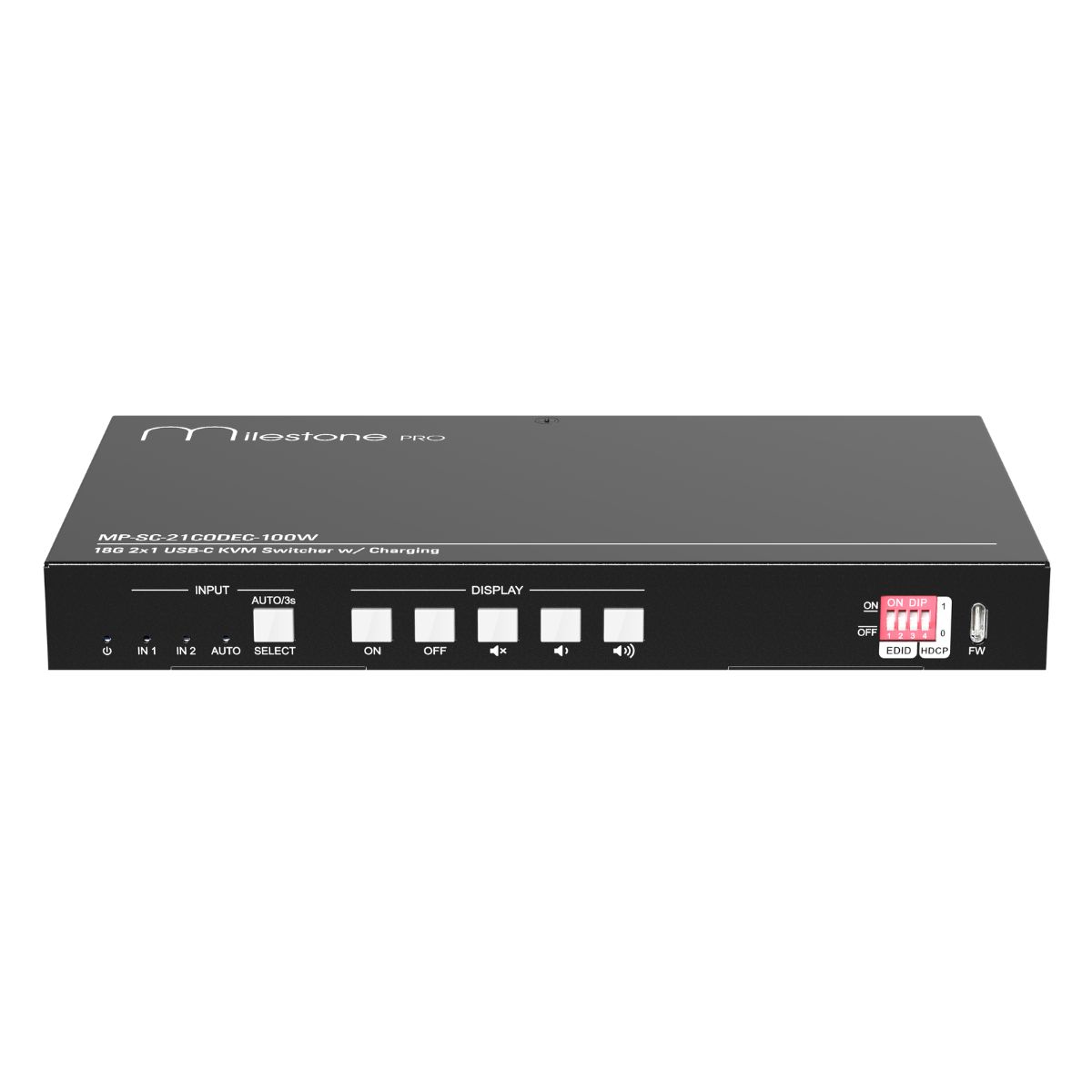

Thanks for choosing the 18G 2x1 USB-C KVM Switcher with charging. Theswitcherisdesigned to switch two inputs to one HDMI output. It supports video resolutionupto4K@60Hz 4:4:4. In addition, there is smart built-in EDID&HDCP settingcanbeselectedby the 4-pin DIP switch on the front panel. The switcher supports audio de-embedding to the balanced analog audio output. It also supports device extension by providing two Type-A USB 3.2 Gen 1 ports for KVM devices such as a camera, a microphone, a keyboard, etc.
Video
| Video Input | (1) HDMI,(1) USB-C |
| Video Input Connector | (1) Type-A female HDMI,(1) Type-C USB |
| Video Input Resolution | Up to 4K@60Hz 4:4:4 |
| Video Output | (1) HDMI |
| Video Output Connector | (1) Type-A female HDMI |
| Video Output Resolution | Up to 4K@60Hz 4:4:4 |
Audio
| Audio Output | (1) AUDIO OUT (Stereo balanced L/R) |
| Audio Output Connector | (1) 5-pin terminal block |
| HDMI Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DolbyDigital®Plus, DTS: X™, and DTS-HD® Master Audio™pass-through |
