MP-SC42M-KVM

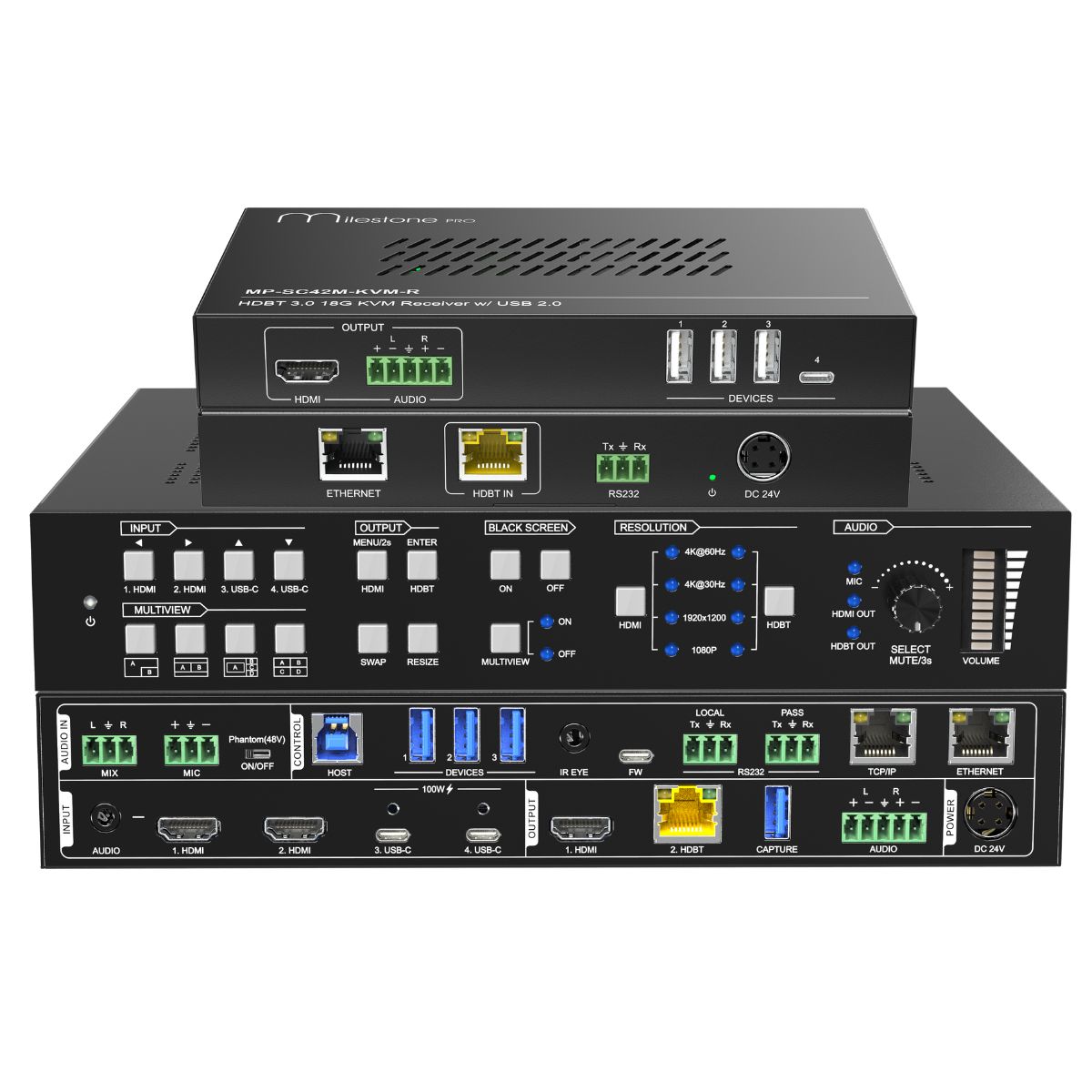

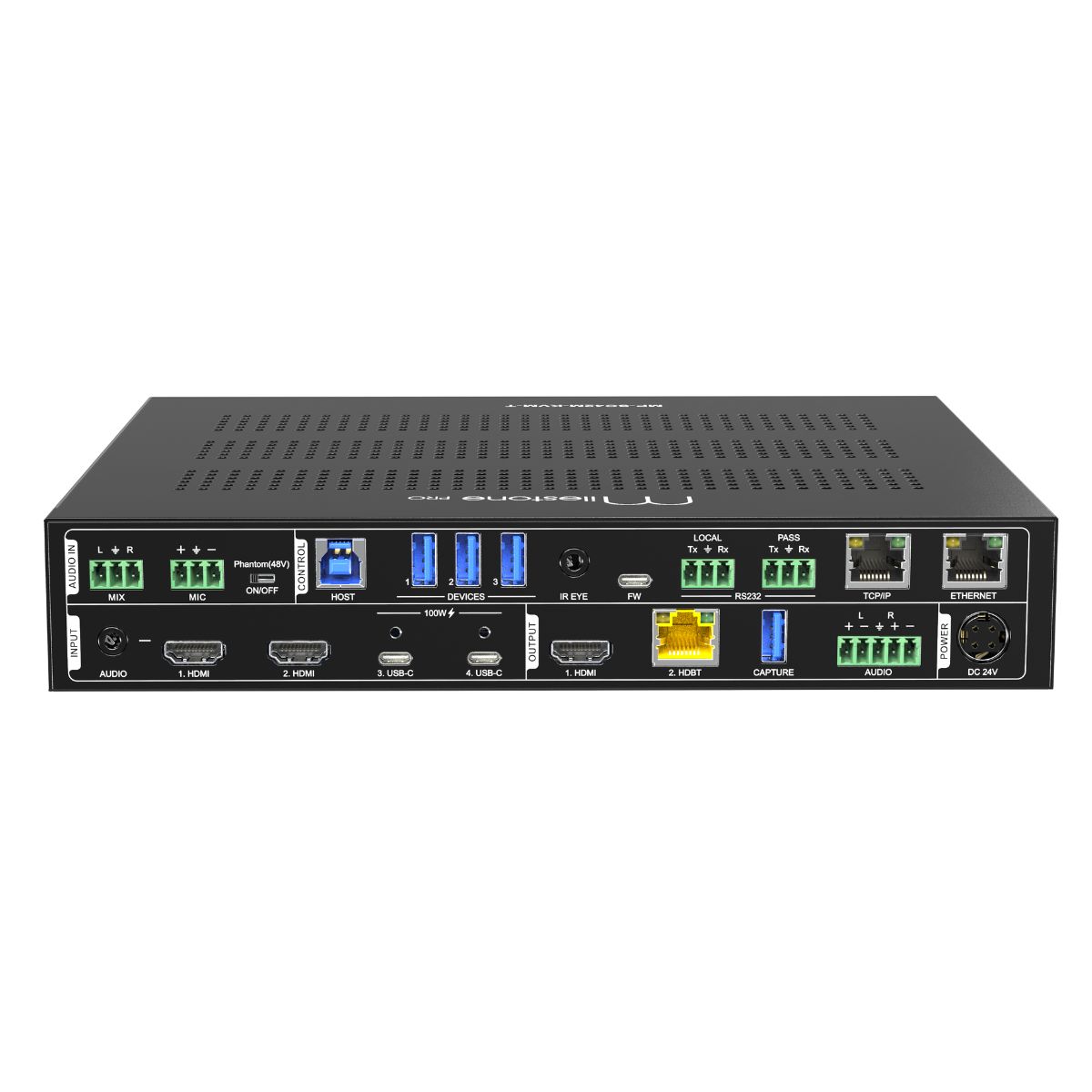

Thank you for choosing MP-SC42M-KVM. This is an 18G seamless KVM switcher with Multiview and HDBT. It supports up to 4K@60Hz and HDCP2.2. The 4Ksignal cantransmit up to 100m. It can be controlled via IR, Web-GUI, and RS-232. It can also be controlled by pressing buttons on the front panel of the transmitter. And it providesmultipleLEDs and button backlight to see the current status.
- Support HDMI 2.0b, 4K@60Hz, and HDCP 2.2
- Support USB-C external 100W charging.
- Support 4K@60Hz signal transmits up to 100m
- Support 24V PoC to power the receiver.
- Support audio embedding, de-embedding, and USB capture
| Video Input | 2 x HDMI IN 2 x USB-C IN | 1 x HDBT IN |
| Video Input Port | 2 x HDMI Type-A female 2.0b 2 x USB-C | 1 x RJ45 |
| Input Resolution | Up to 4K@60Hz | |
| Video Output | 1 x HDMI OUT 1 x HDBT OUT | 1 x HDMI OUT |
| Video Output Port | 1 x HDMI Type-A female 2.0b 1 x RJ45 | 1 x HDMI Type-Afemale2.0b |
| Output Resolution | Up to 4K@60Hz |
