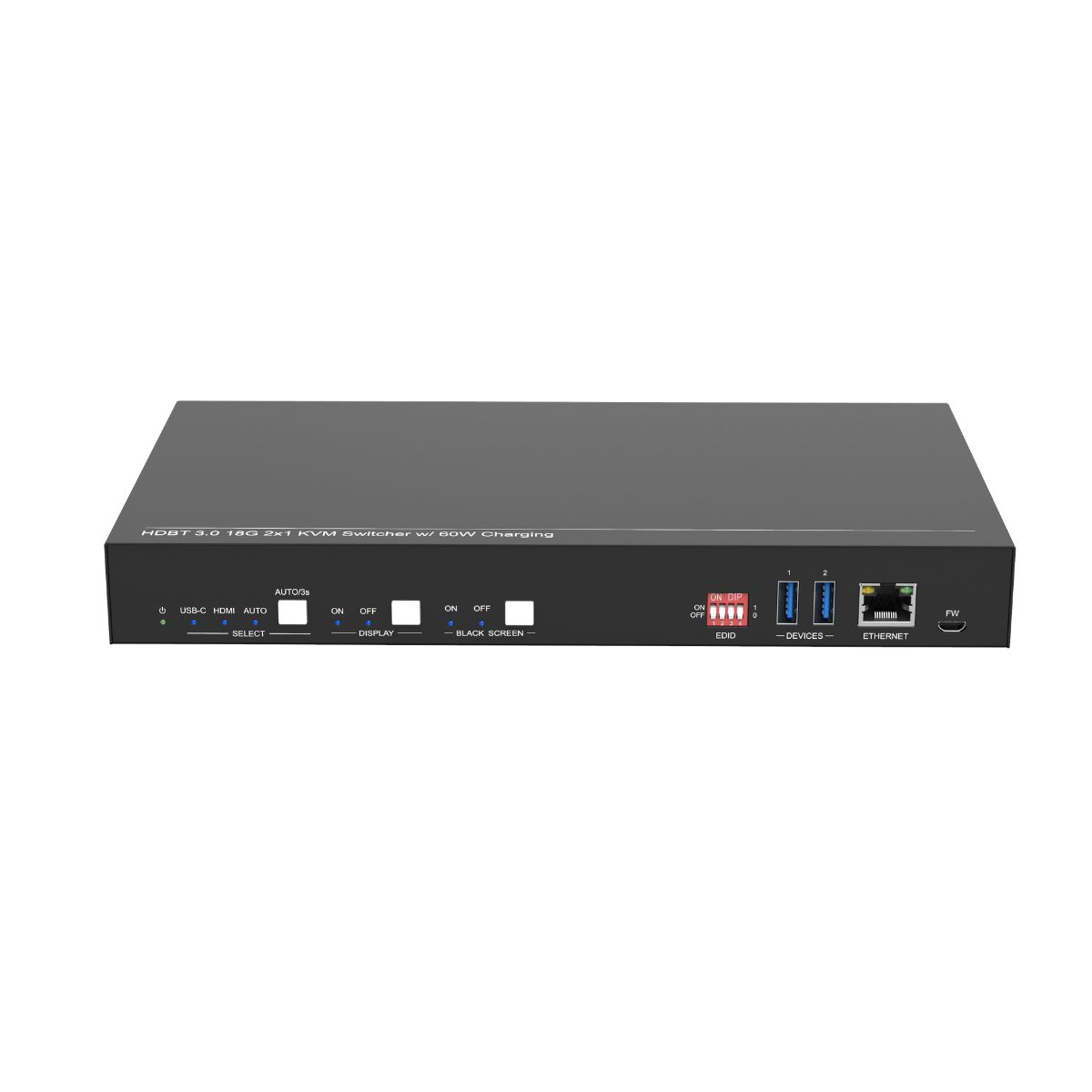

MP-SU21T-KVM
MP-SU21T-KVM is an 18Gbps switcher kit. It supports up to 4K/60/4:4:4, HDR10, Dolby Vision, and HDCP 2.2. It also supports uncompressed transmission of 18Gbps signals with a distance of up to 100m. At the same time, it can be connected to KVM equipment, which is very suitable for equipment connection and signal transmission in conference rooms. The switcher kit also supports RS232 and CEC control and bidirectional 48V PoC
- HDMI 2.0, highest support 4K@60HZ 4:4:4, HDR10 and Dolby Vision, HDCP 2.2,
- 1 x HDMI input, 1 x USB-B host, 1 x USB-C input, 1 x HDMI output and 1 x HDBaseT output
- HDBT 3.0 supports 100m transmission and bidirectional 48V PoC
- Support RS232 control and CEC control
- USB-C input supports 60W external charging
- Auto switch 5V or TMDS detection
- Support Dry Contact control
| Video Input | (1) HDMI IN, (1) USB-C IN | (1) HDBT IN |
| Video Output Connector | (1) Type-A female HDMI (1) Type-C | (1) RJ45 |
| Input Resolution | HDMI: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision USB-C: Up to 4K@60Hz 4:4:4 | Up to 4K@60Hz 4:2:0 |
| Video Output | (1) HDMI OUT (1) HDBT OUT | (1) HDMI |
| Video Output Connector | (2) Type-A female HDMI | (1) Type-A female HDMI |
| Output Resolution | HDMI: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision HDBT: Up to 4K@60Hz 4:2:0 | Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision |
