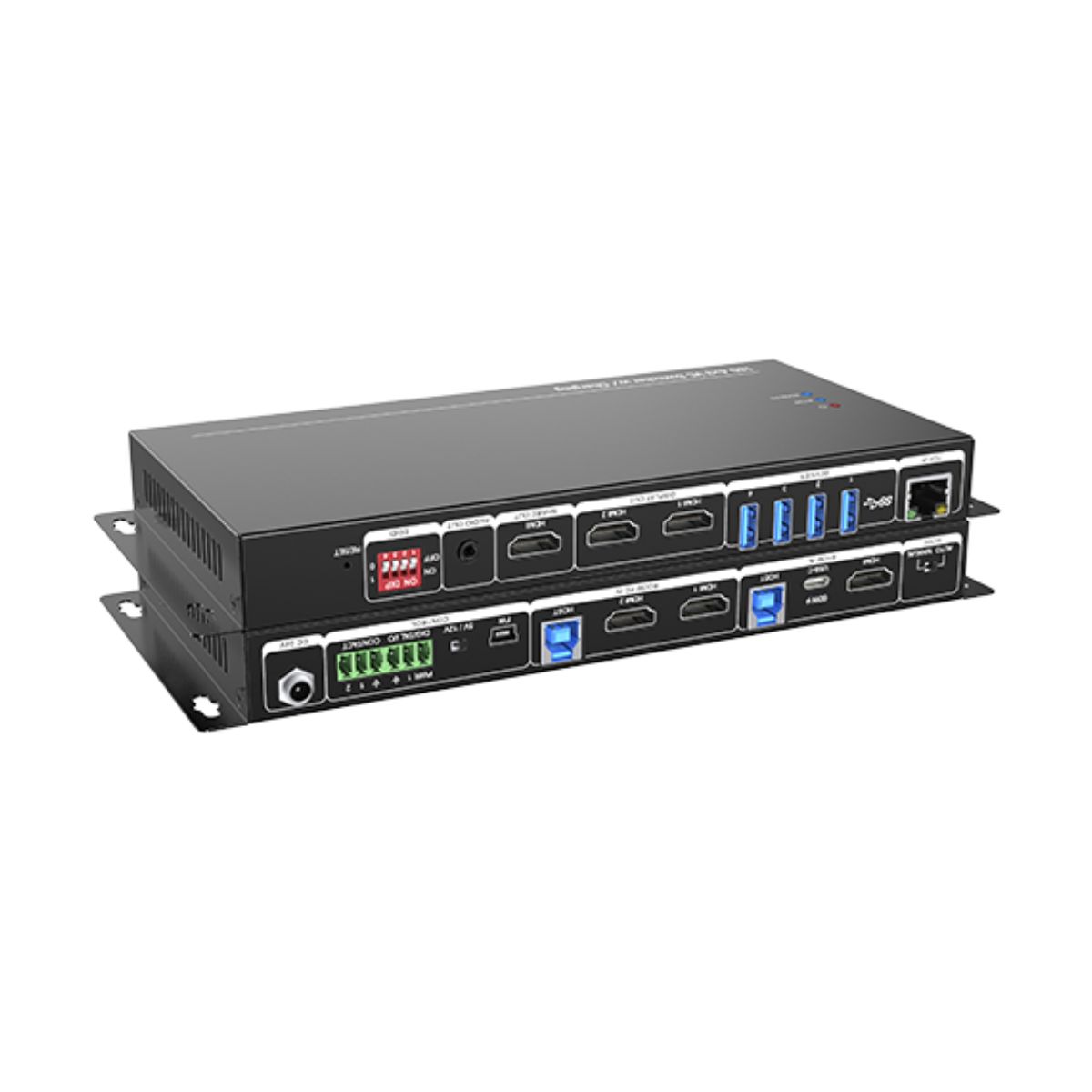

MP-SUH43-KVM
Thanks for choosing the MP-SUH43-KVM HDMI 2.0 Web-Conferencing Room Switcher! The matrix switcher simplifies meeting room and presentation space system integration by providing two video mode (BYOM mode and Standard mode) with three HDMI inputs, one USB-C input and three HDMI output. The USB-C input supports video, data (USB host) and power charging up to 60w. There is a 4-port USB client hub built with 3 USB host ports that can be switched independently
- HDMI 2.0 and HDCP 2.2 compliant.
- Video resolution up to 4K@60Hz 4:4:4, 8bit deep color
- Supports auto-switching.
- USB-C input supports power charging up to 60w.
- Provides an audio output for audio de-embedding.

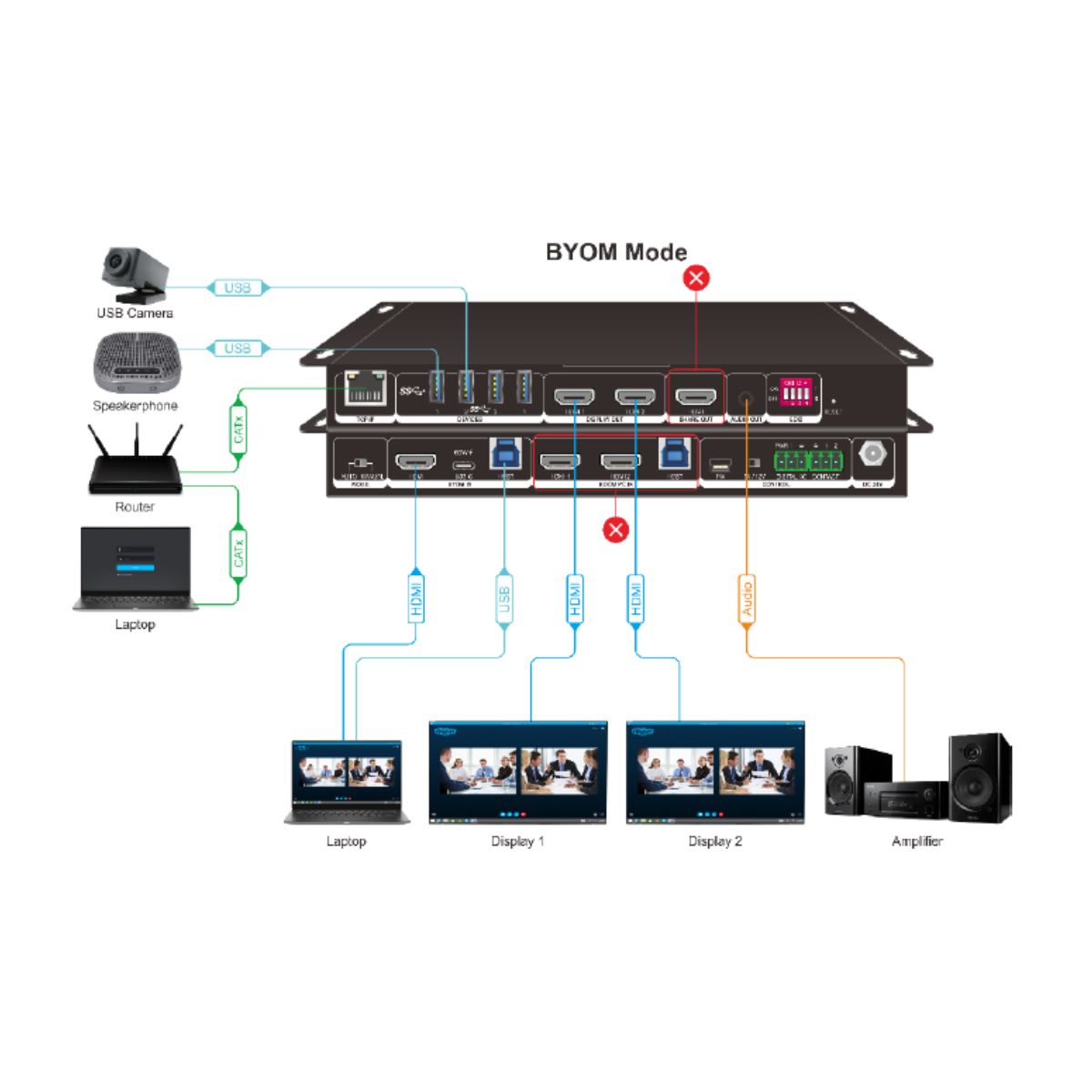

- Automatically switch between the dedicated room system and bring your own meeting (BYOM). Supports audio output volume control.
- Use the same Laptop cable between wired screen sharing and bring your own meetings.
Video Input
| Video Input | (3) HDMI, (1) USB-C |
| Video Input Connector | (3) Type-A female HDMI, (1) USB-C |
| Video input Video Resolution | Up to 4K@60Hz 4:4:4, HDR |
Video Output
| Video Output | (3) HDMI |
| Video Output Connector | (3) Type-A Female HDMI |
| Video output Video Resolution | HDMI: Up to 4K@60Hz 4:4:4, HDR |
Audio Output
| Audio Output | (1) AUDIO OUT |
| Audio Output Connector | (1) 3.5mm Jack |
| Frequency Response | 20Hz to 20kHz, ±3dB |
| Max Output Level | 2.2 ± 0.1Vrms |
| THD+N | < 0.1%, 20Hz to 20kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) |
