MP-SUH4ARC-4K
The MP-SUH4ARC-4K is an ultrathin auto switcher with four HDMI video inputs and one HDMI output. This switcher supports HDMI video resolution up to 4Kx2K@60Hz 4:4:4 HDR and multichannel audio. Except passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The switcher will de-embed digital stereo audio to provide an analog audio source for an existing audio system. The switcher also supports audio return channel (ARC) for transmitting audio back to HDMI input port from the connected display.

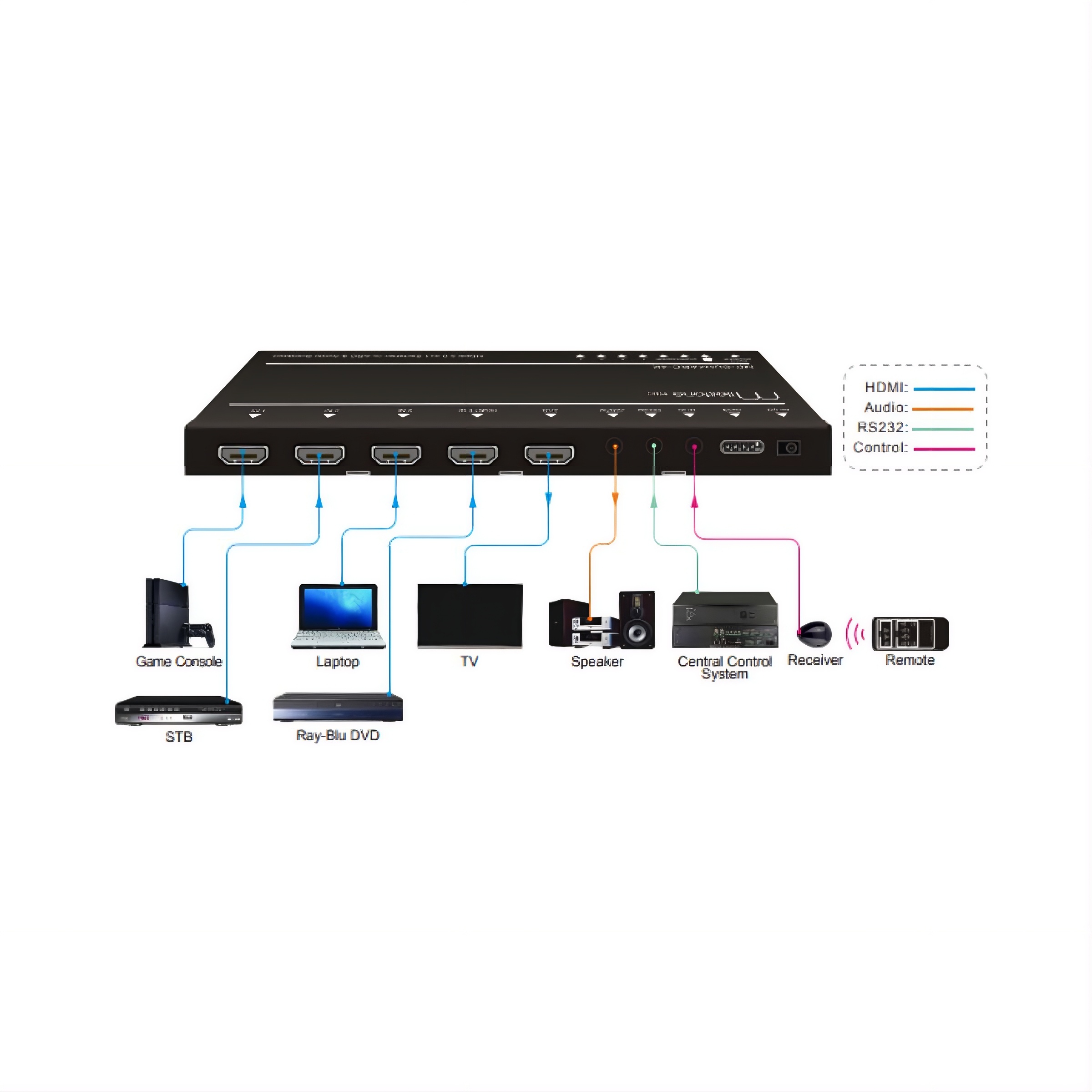

- Switches any one of four HDMI inputs to one HDMI output
- Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
- 18Gbps high bandwidth.
- Fully compliant with the HDMI 2.0 and HDCP2.2 specifications.
- Supports audio return channel (ARC).
- Advanced EDID management: multiple presets and user-defined allowed.
- Controllable via RS232 and IR
- Supports CEC

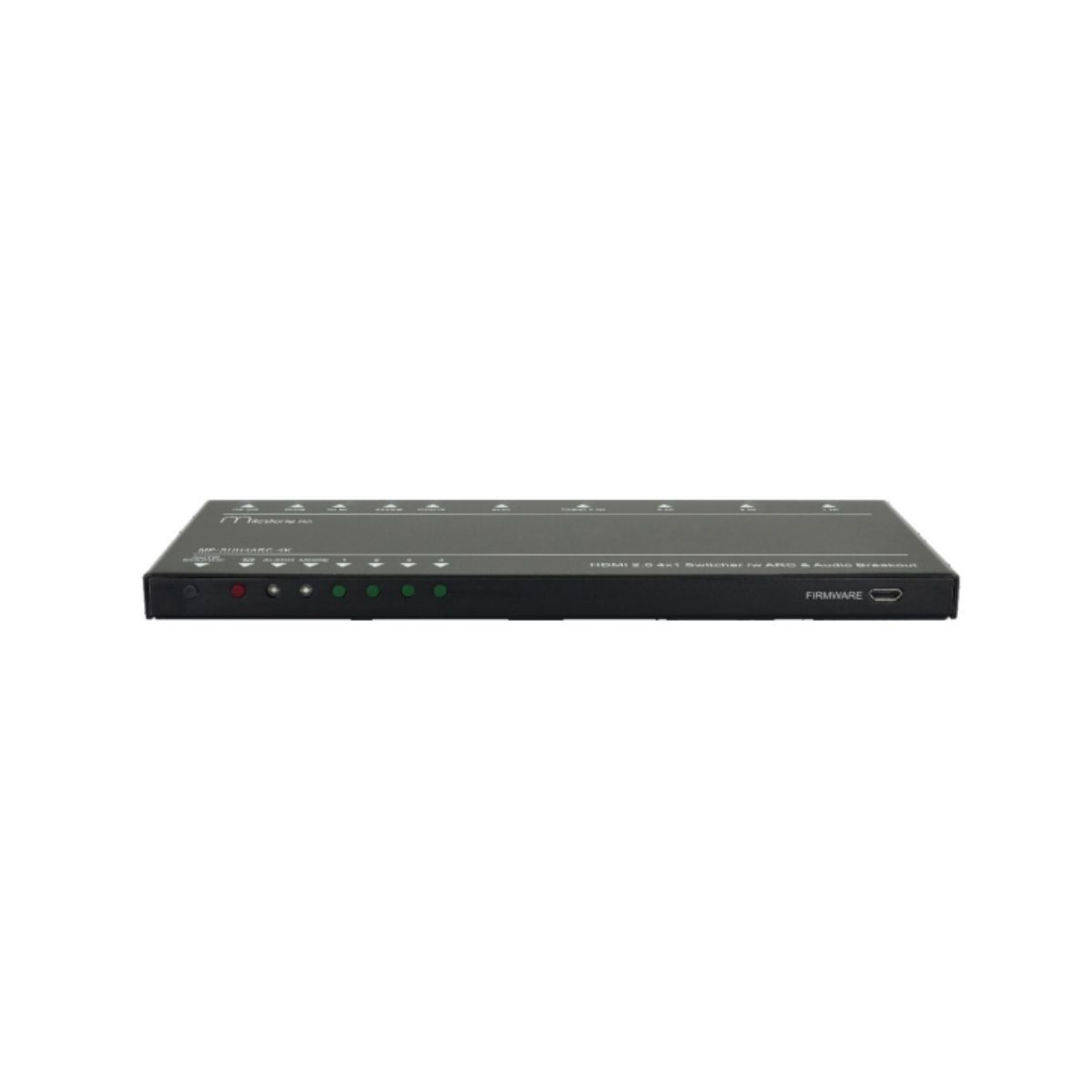

- Provides seven LEDs to indicate the current operating status and to assist in troubleshooting an installation
- Firmware upgrade via the Micro-USB port.
Video Input
| Input | (4) HDMI |
| Input Connector | (4) Female type-A HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
Video Output
| Output | (1) HDMI |
| Output Connector | (1) Female type-A HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
