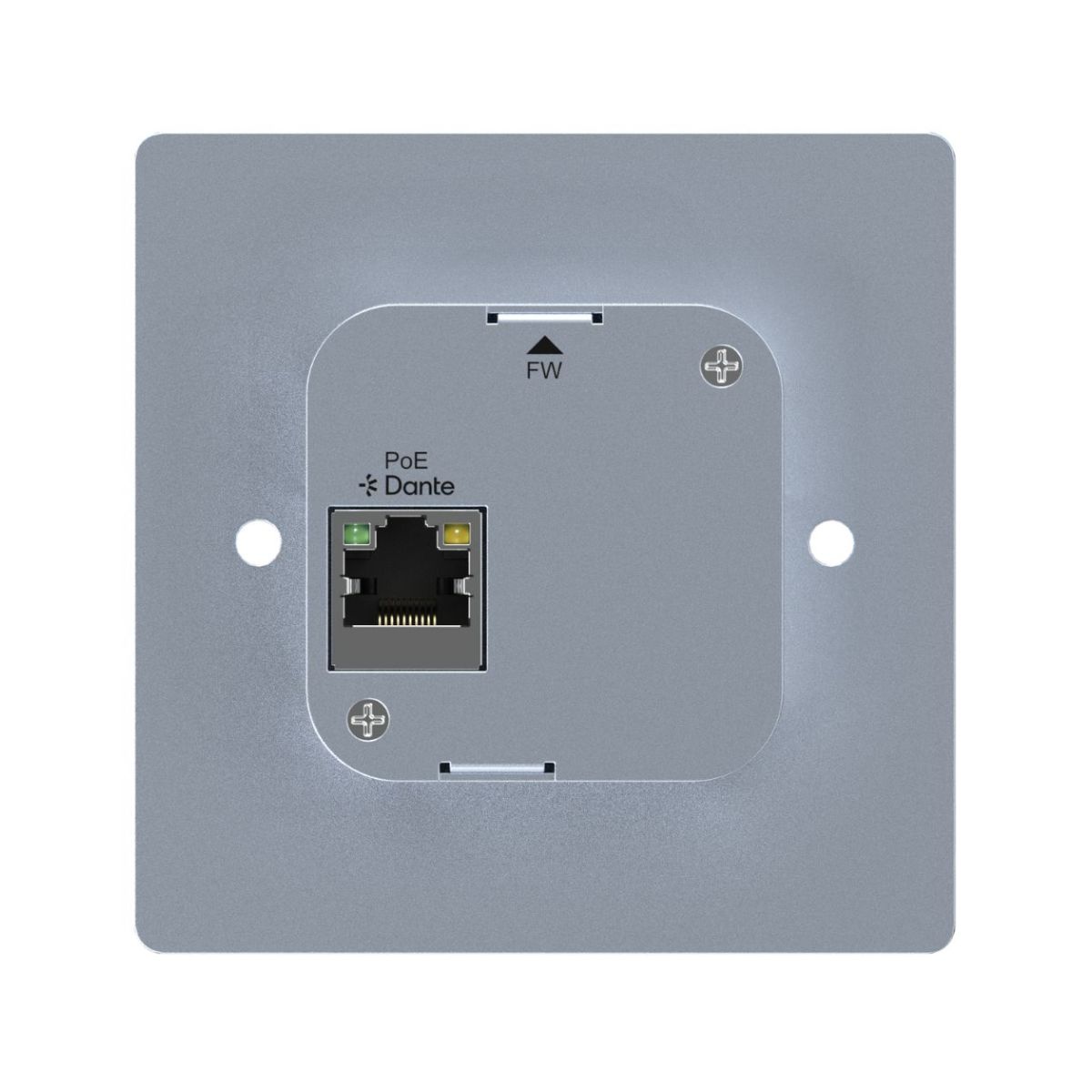

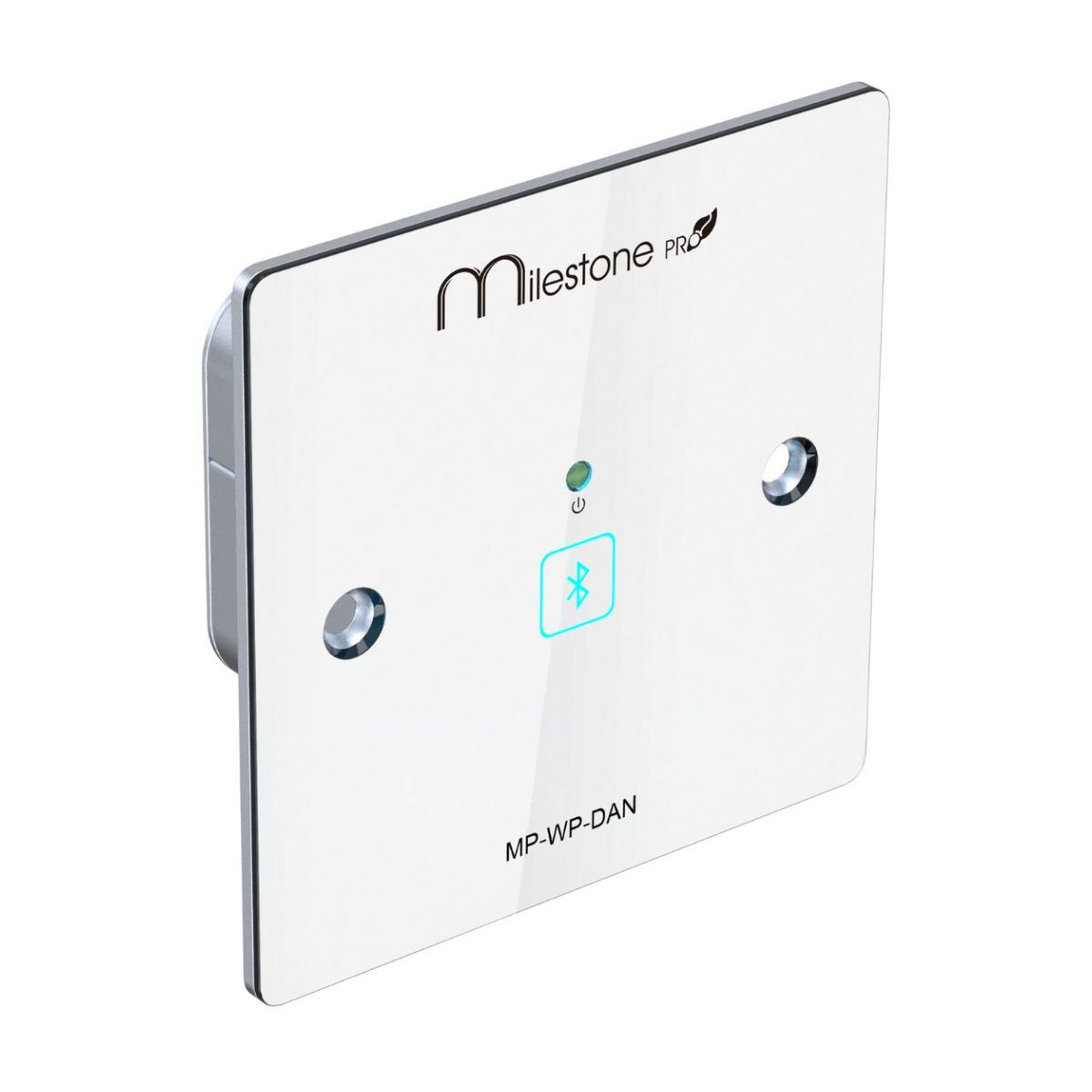

MP-WP-DAN

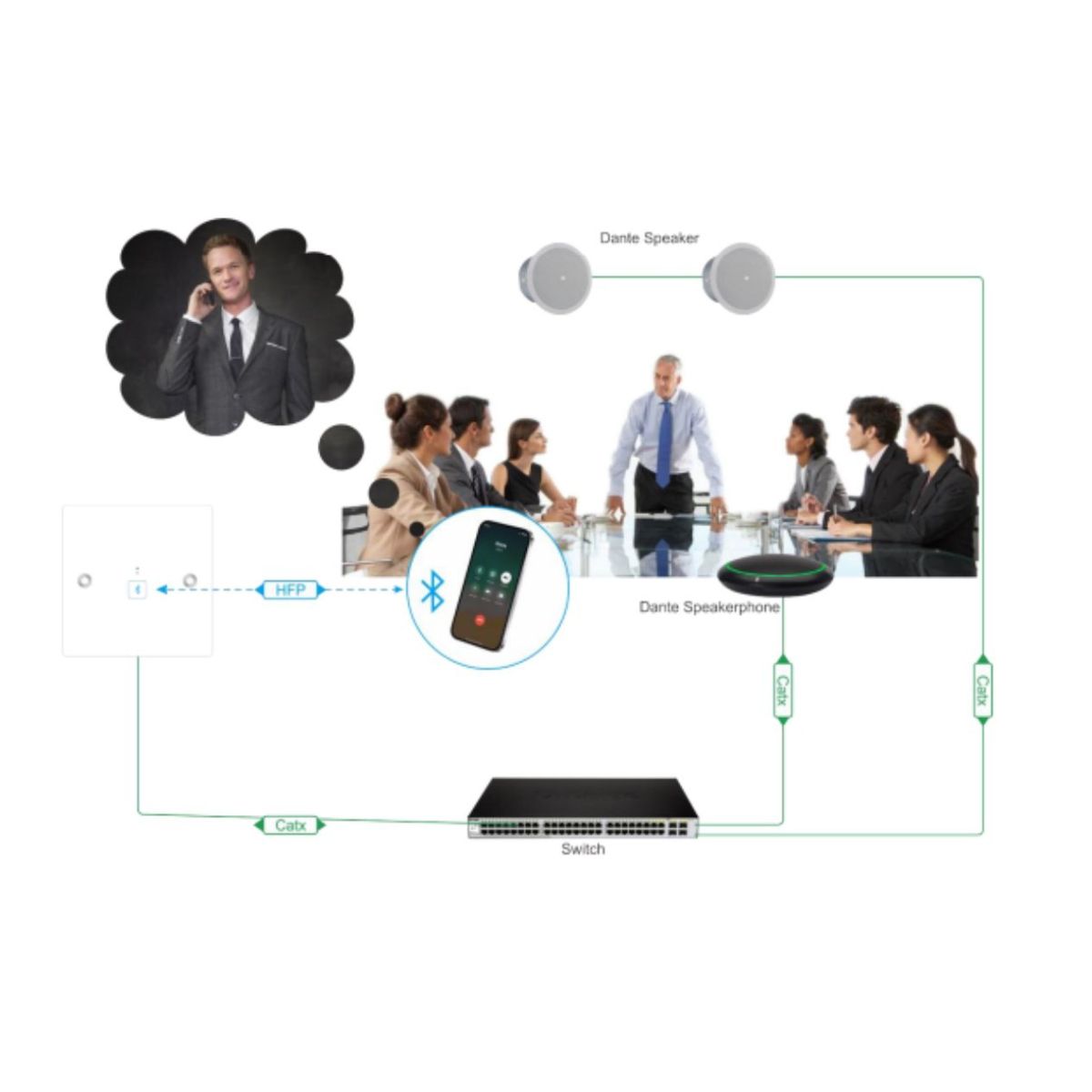

MP-WP-DAN is a Dante-enabled audio wall plate that receives Bluetooth audio and converts it into Dante network audio for output. It features one-touch Bluetooth pairing for easy connectivity and is powered via PoE from an Ethernet switch. The device also supports configuration and control through the Dante Controller.
- Class 2, communication distance at least 10m
- Support one-touch pairing.
- Support PoE power supply from an Ethernet switch
- Controllable via Dante Controller.
| Input | Bluetooth |
| Output | Dante |
| Audio | |
| Frequency Response | 20Hz-20kHz ±3dB |
| THD+N | <0.05% @1kHz |
| SNR | > 105 dB |
| Sample Rate | 44.1/48kHz |
| Bit Depth | 24bit |
| General | |
| Power Supply | PoE |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Relative Humility | 10% ~ 90% |
| Dimension (W*H*D) | 69.85mm x 114.3mmx 34.5mm |
| Net Weight | 115g |
