MPHT-4T-H2 KIT

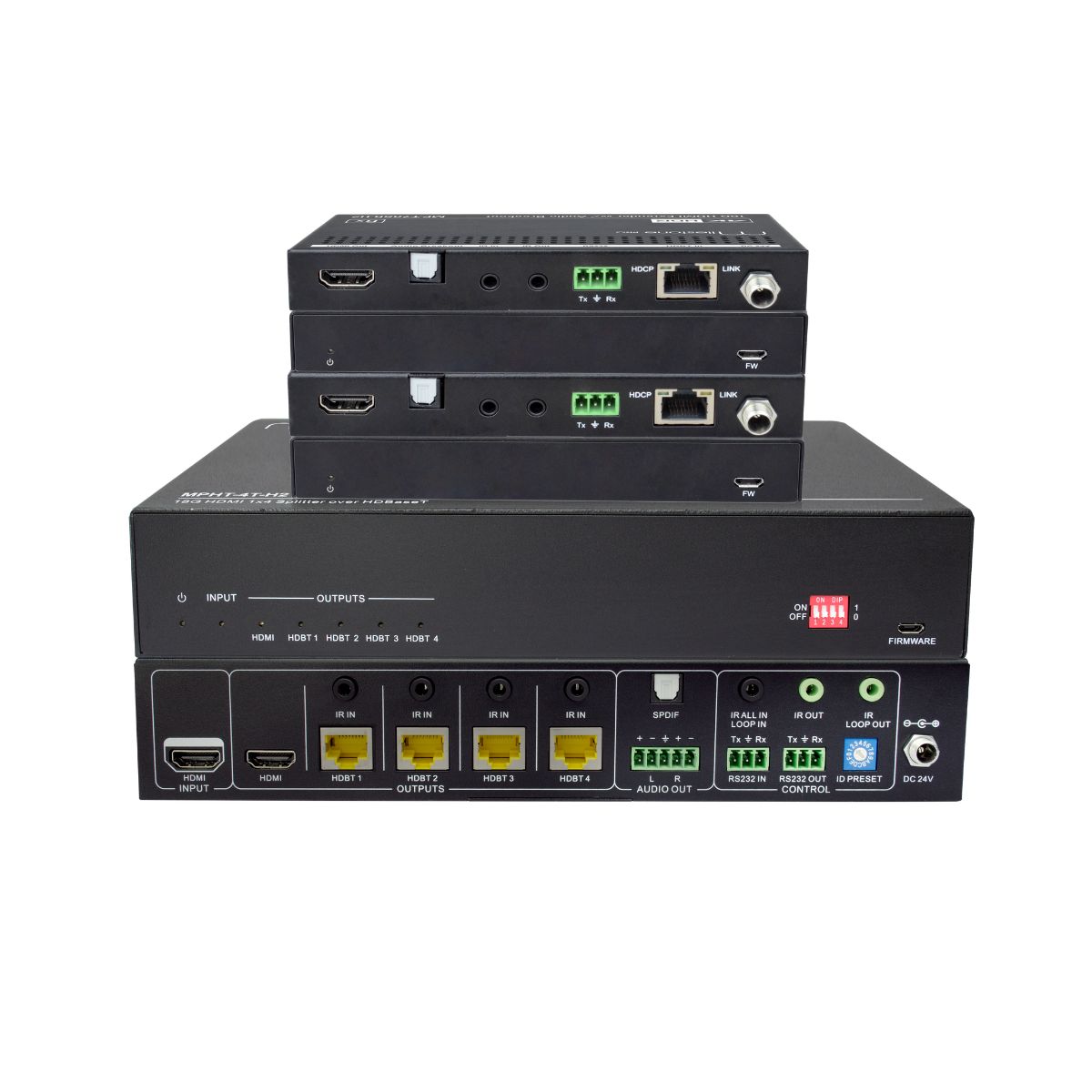

Thanks for choosing this1x4 HDBaseT Splitter Kit! This device accepts a single HDMI input and splits it into one HDMI and four HDBaseT outputs. The splitter is designed with an IR loop out and loop in which are intended to cascade to additional units. It supports video resolutions up to 4K@60Hz 4:4:4 8bit and all HDMI audioformats. It can extend 1080p signals on each output to distance up to 229 feet (70 meters) and 4 K signals to a distance of up to 131 feet (40 meters) over a single CATx Ethernet cable.It supports the Power over HDBaseT (PoC) feature, which allows the receivers to be powered from the splitter over the Ethernet cables. It supports bidirectional IRpass-through and IR, RS232 cascade control.

Contact to Seller
  • Support HDMI 2.0, video resolutions up to 4K@60Hz 4:4:4.
  • Distribute one UHD/4K HDMI signal to four HDBaseT outputs and one loop HDMI output

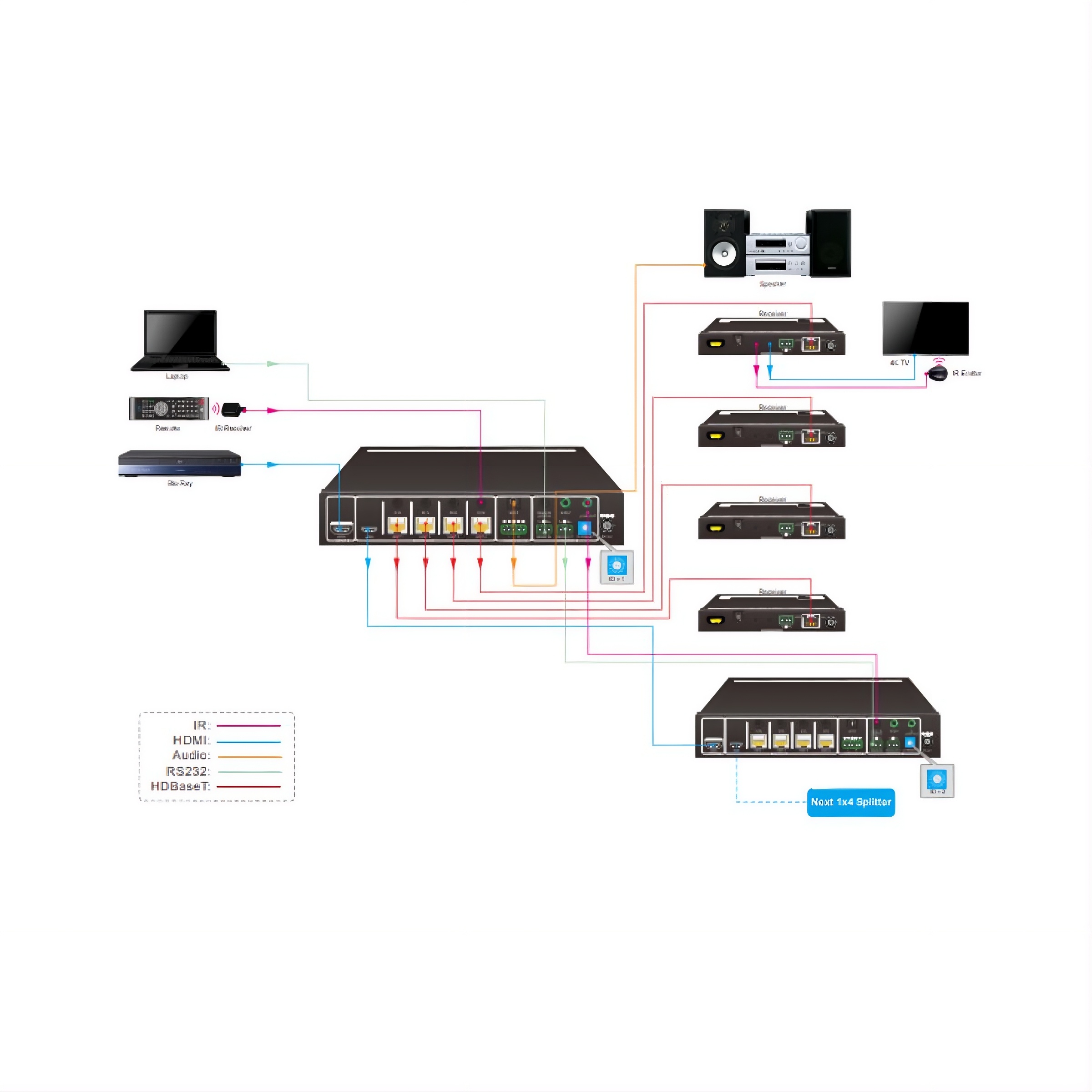

  • Supports cascade connection, distributing the video signal to multiple video displays.
  • Maximum transmission distance is up to 40m for 4K, and 70mfor 1080p.
  • Supports video resolution down-scaling, 4K input can be automatically downgraded to 1080 output.
Download Product catalog

Video Input

Input (1) HDMI
Input Connector (1) Female type A HDMI
HDMI Input Resolution Up to 4K@60Hz 4:4:4 8bit

Video Output

Output Connector (1) Female type A HDMI; (4) RJ45
HDMI Output Resolution Up to 4K@60Hz 4:4:4
HDBT Output Resolution Up to 4K@60Hz 4:4:4 (Signal has been compressed.)
