MPHUC-T70WPT4K

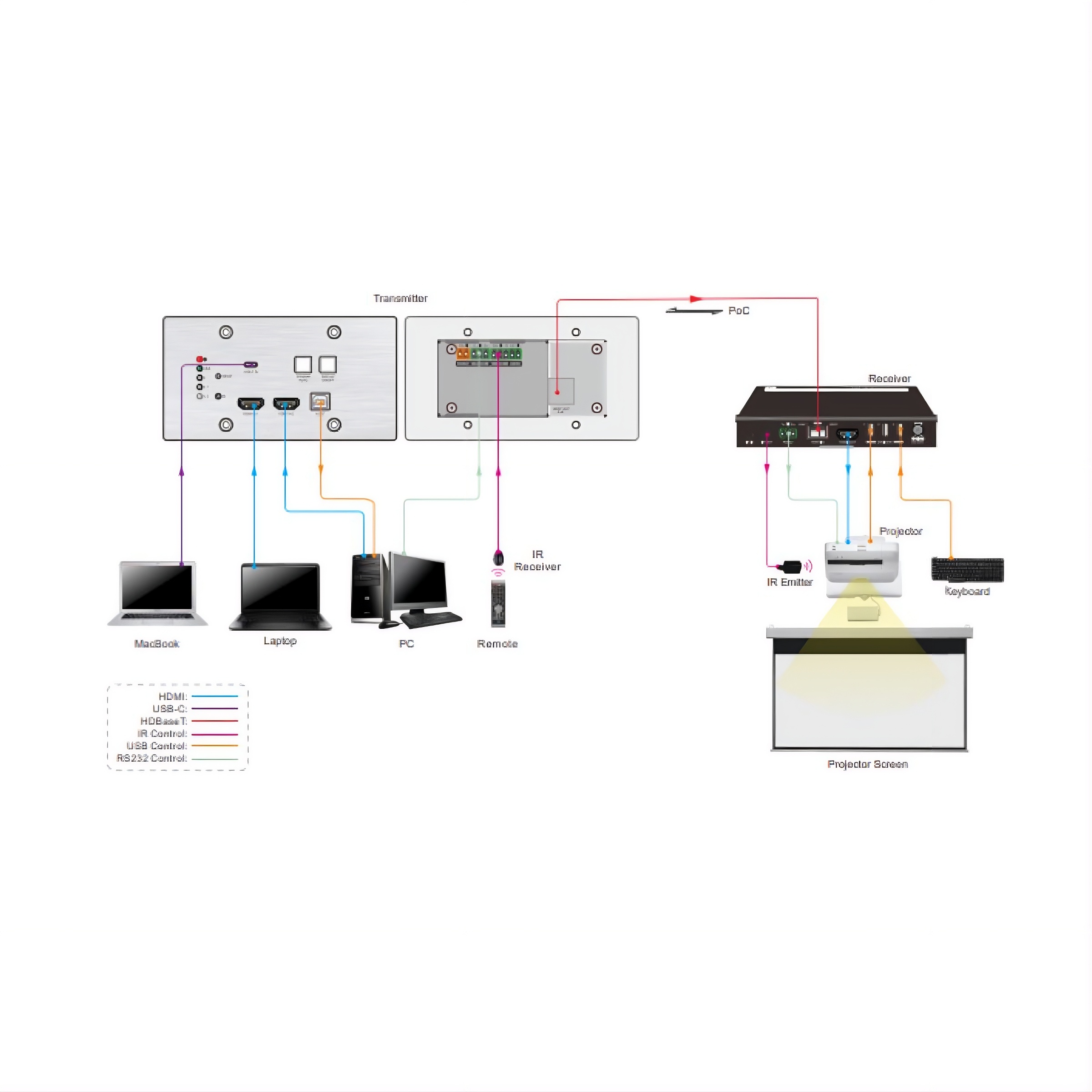

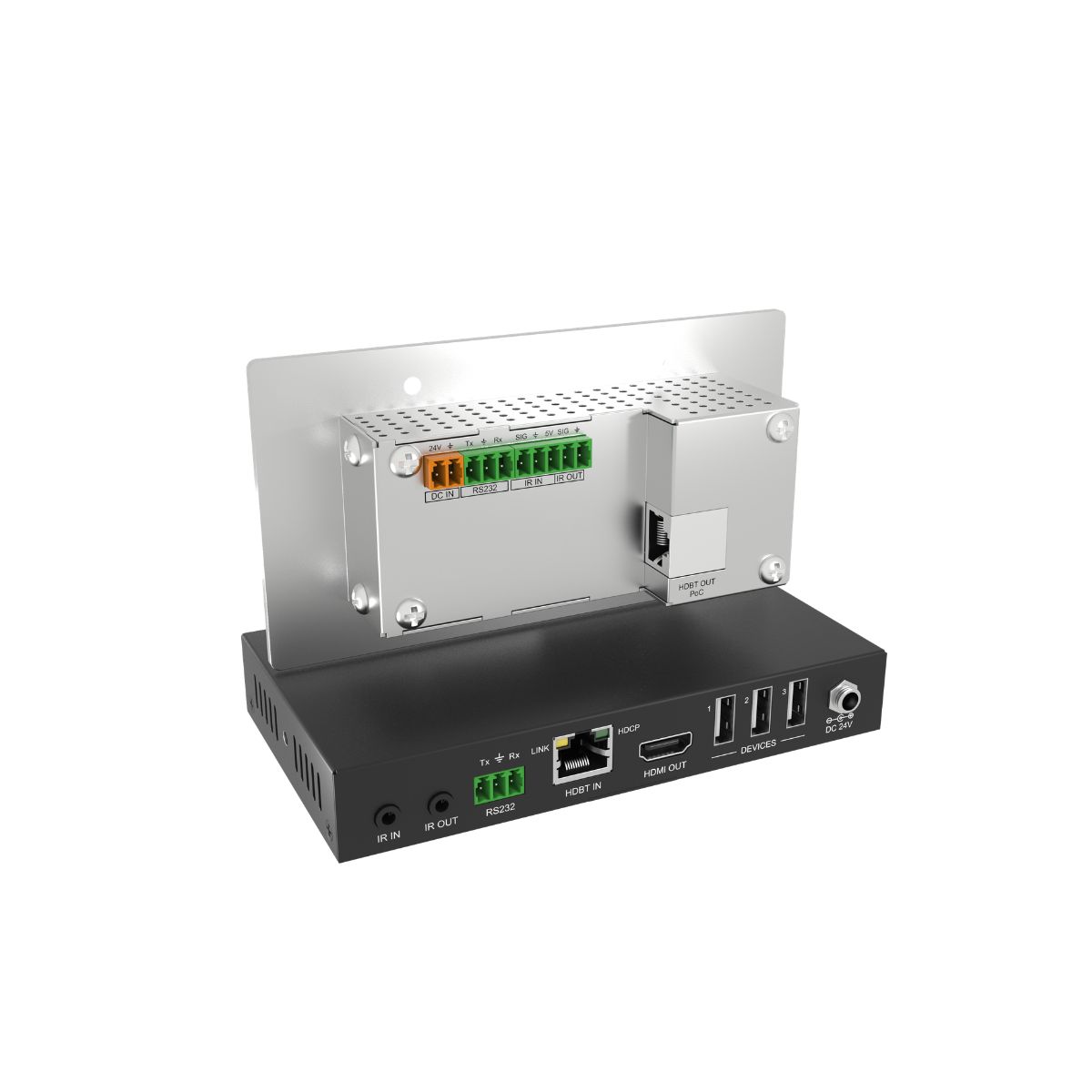

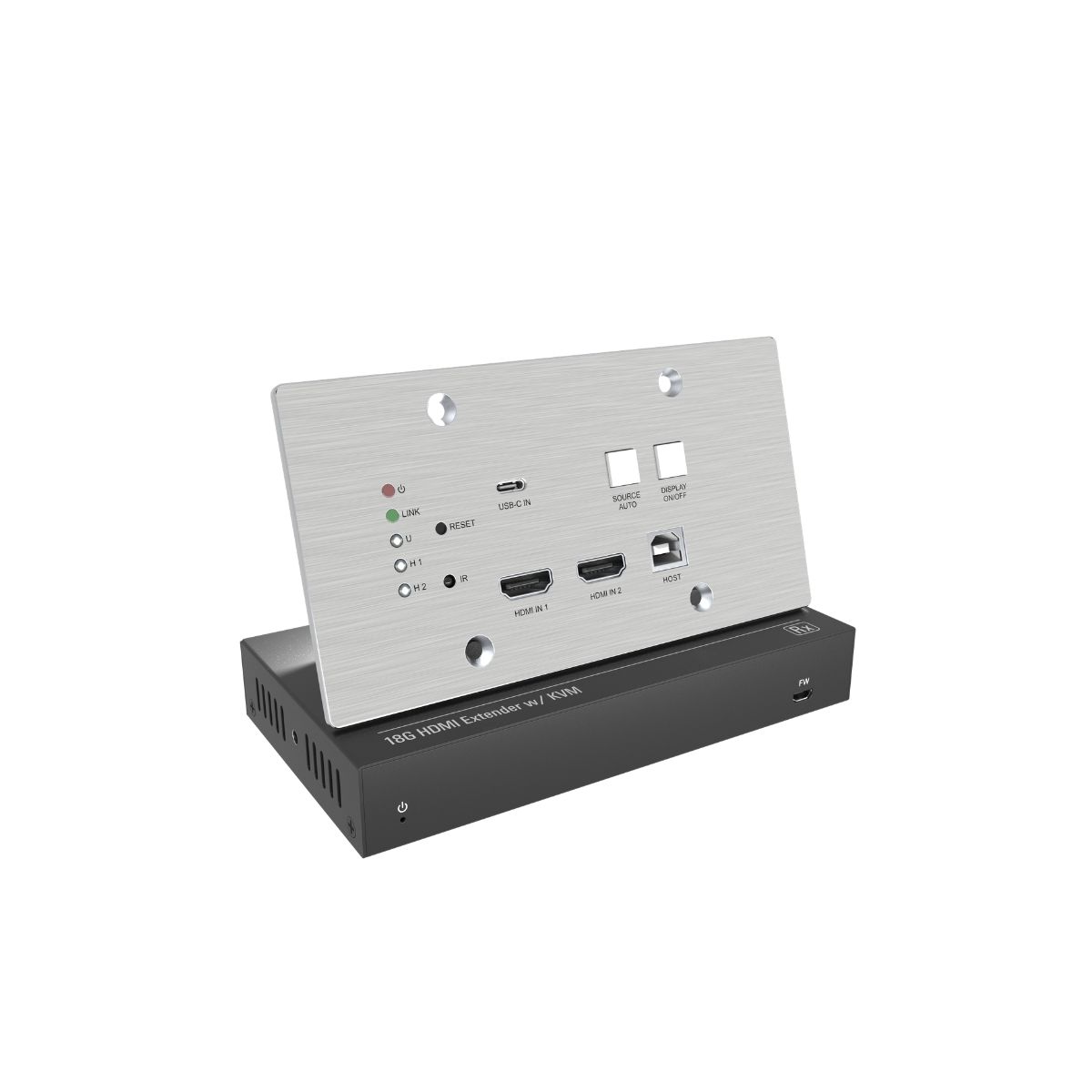

Thank you for choosing the MPHUC-T70WPT4K 3x1 Wallplate Transmitter Switcher Kit, which consists of a wallplate transmitter switcher and a receiver. The kit is designed to switch and extend HDMI or USB-C source signal to a far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080p video by using a single CATx cable

Contact to Seller
  • Supports HDMI signal up to 4K@60Hz 4:4:4, USB-C signal up to 4K@30Hz 4:4:4.
  • Supports HDMI V2.0 standard and HDCP 2.2 compliant. Ensures display of content-protected media and interoperability with other HDCP-compliant devices
  • Active input automatic detection.
  • Extending HDMI signal 4K@60Hz up to 131ft/40m and 1080p@60Hz up to 229ft/70m.
  • The USB-C supports video and USB data transmission
  • Supports RS232 control with HDBaseT connection and local control.
  • Supports bidirectional IR pass-through to control the display device from the local and the control source device from the remote.
  • Supports CEC to turn on/off the display by the DISPLAY ON/OFF button, and the button can be programmed by the IR learning feature or RS232 command.
  • Supports bi-directional 24V PoC power supply and wide voltage power receiving (12~48V), only one power adapter is required.
Download Product catalog

Input

Input (2) HDMI, (1) USB-C
Input Connector (2) Female type A HDMI, (1) Type-C USB
HDMI Input Resolution Up to 4K@60Hz 4:4:4
USB-C Input Resolution Up to 4K@30Hz 4:4:4

Output

Output (1) HDBT OUT
Output Connector (1) RJ45
HDBT Output Resolution Up to 4K@60Hz 4:4:4
