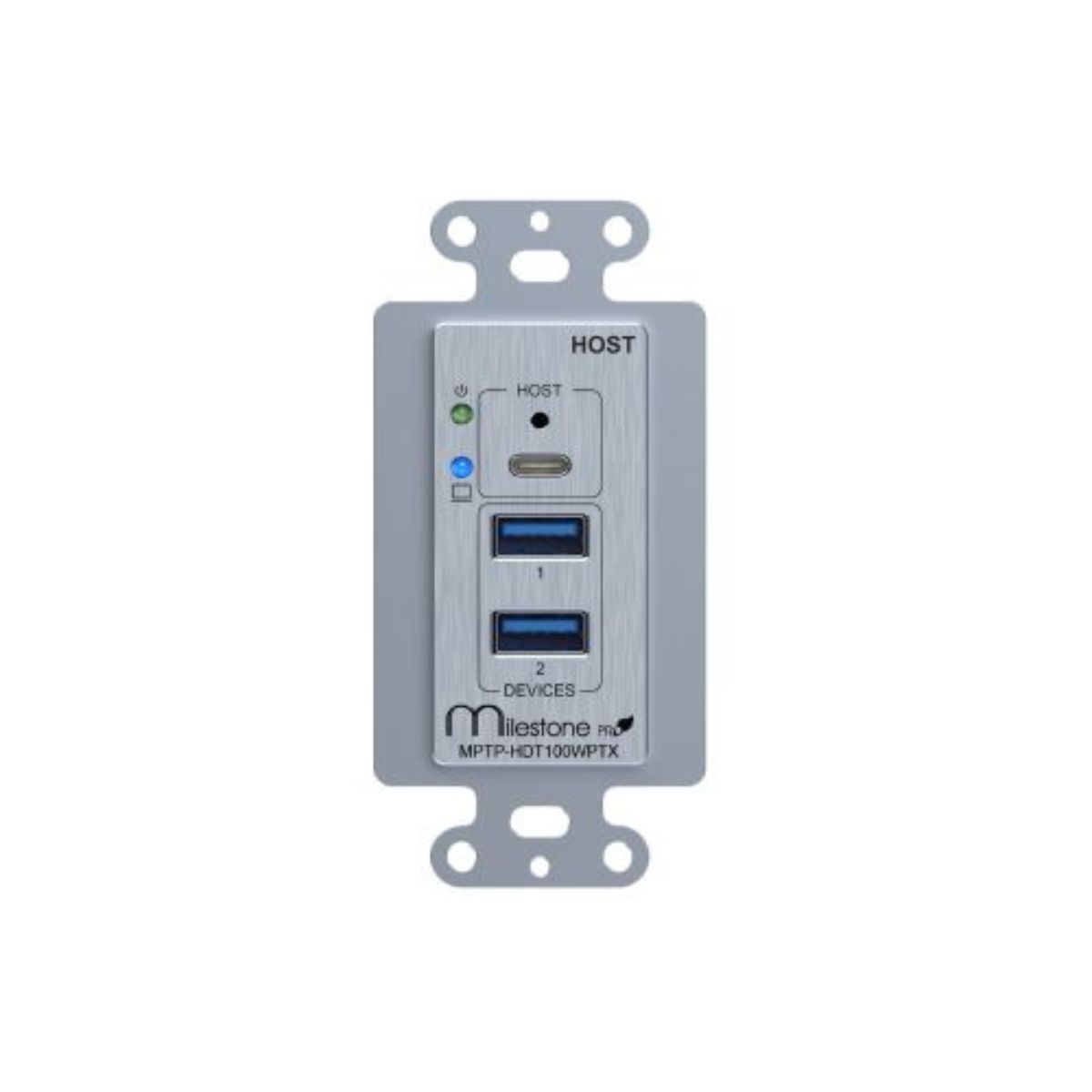

MPTP-HDT100WPTX
Thanks for choosing the 100m USB 5Gbps extender. The extender is designed to transmit a USB signal upto100mdistance. MPTP-HDT100WPTX is the host port of the wall plate type extender; it contains one Type-C for PC or laptop connection.It also has two local USB-A ports that share a 5V 500 mA power supply for speakerphone and headset. The extender alsosupportstwo-way 24V PoC power
- USB3.2 Gen1 data transmission rate up to5Gbps;
- Support extends USB signal up to 100mviaCAT6acable;
- Support RS232 pass-through and upgrade;
- Support DIP switch to switch PoCON/OFF;
- Two-way 24V PoC power supply.
MPTP-HDT100WPTX
| Host Connector | (1) Type-C USB |
| Devices Connector | (2) Type-A USB |
| Devices Power | 5V 500mA total |
| USB Version | USB 5Gbps |
Control Part
| Control | (1) DIP switch |
| Control Connector | (1)2-pin DIP switch |
General
| Transmit distance | Up to 100 m with CAT6A cable |
| PoC standard | Two-way 24V PoC |
| Data Rate | 5Gbps |
| Operation Temperature | 10℃~ +55℃ |
| Storage Temperature | -25℃~ +70℃ |
