MPTP-T100A

The MPTP-T100SS-H2 is a professional HDBaseT extender set consisting of a transmitter and receiver. It extends HDMI signals up to 70m at 4K×2K and up to 100m at 1080p over CAT5e/6a/7 cabling. The system also supports bi-directional IR and RS232 pass-through, bi-directional PoC, HDR, and Ethernet extension for flexible AV installations.

Contact to Seller
  • Three audio inputs can be switched: TOSLINK/COAX/Stereo

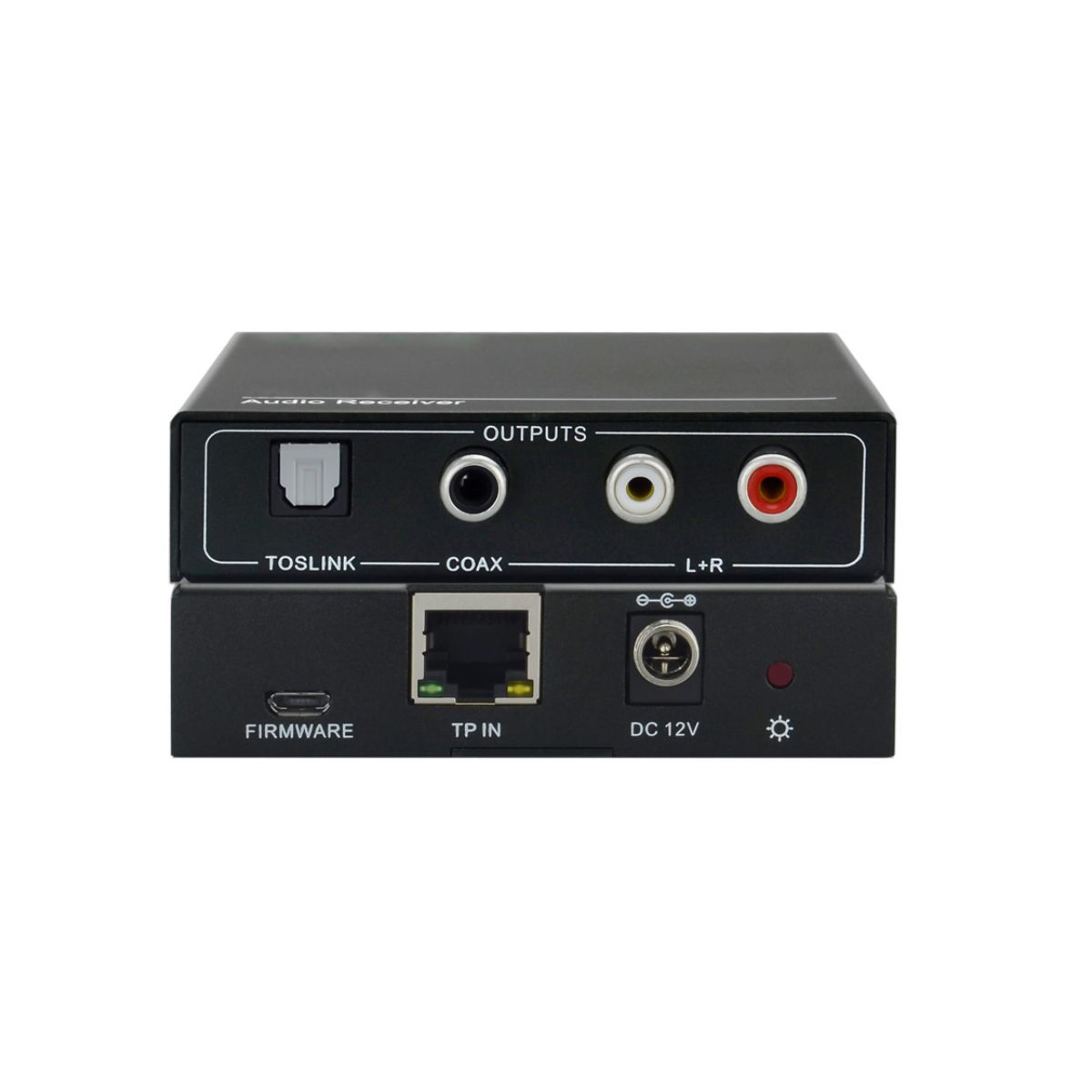

  • Three audio synchronous outputs: TOSLINK, COAX & RCA (L+R).
  • The Transmitter is powered by the receiver's 12VDC via PoC technology
  • The transmission distance of the stereo audio signal can be up to 170m over a single CATx cable, and the TOSLINK and COAX audio signal up to 290m.
Download Product catalog
Input TOSLINK, COAX or AUDIO
Output 1 TP OUT
Audio Format TOSLINK & COAX: PCM/Dobly/DTS; AUDIO: Stereo
Sound Channe TOSLINK & COAX: 2.0-7.1
Frequency Response 20 Hz to 20 kHz, ±3 dB
Sample Rate TOSLINK & COAX: 48k/96k/192k 16bit/18bit/24bit
Transmission Distance Stereo: Up to 170m (CAT5e/6/7); TOSLINK/COAX: Up to 290m (CAT5e/6/7)
Power Supply Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC, 1A
Power Consumption 2.5W (Max)
Work Temperature -10 ~ +55℃
Humidity 10% ~ 90%
