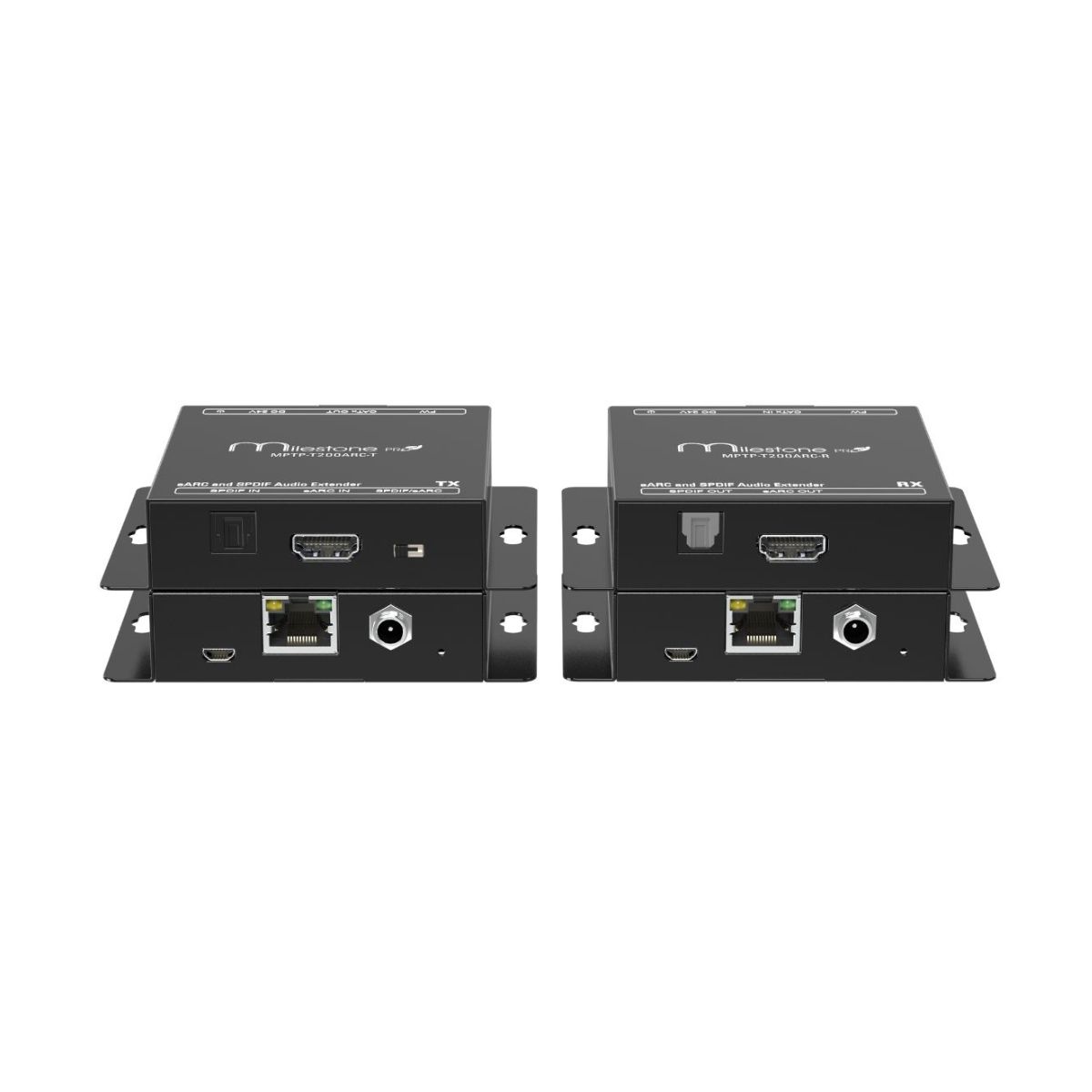

MPTP-T200ARC

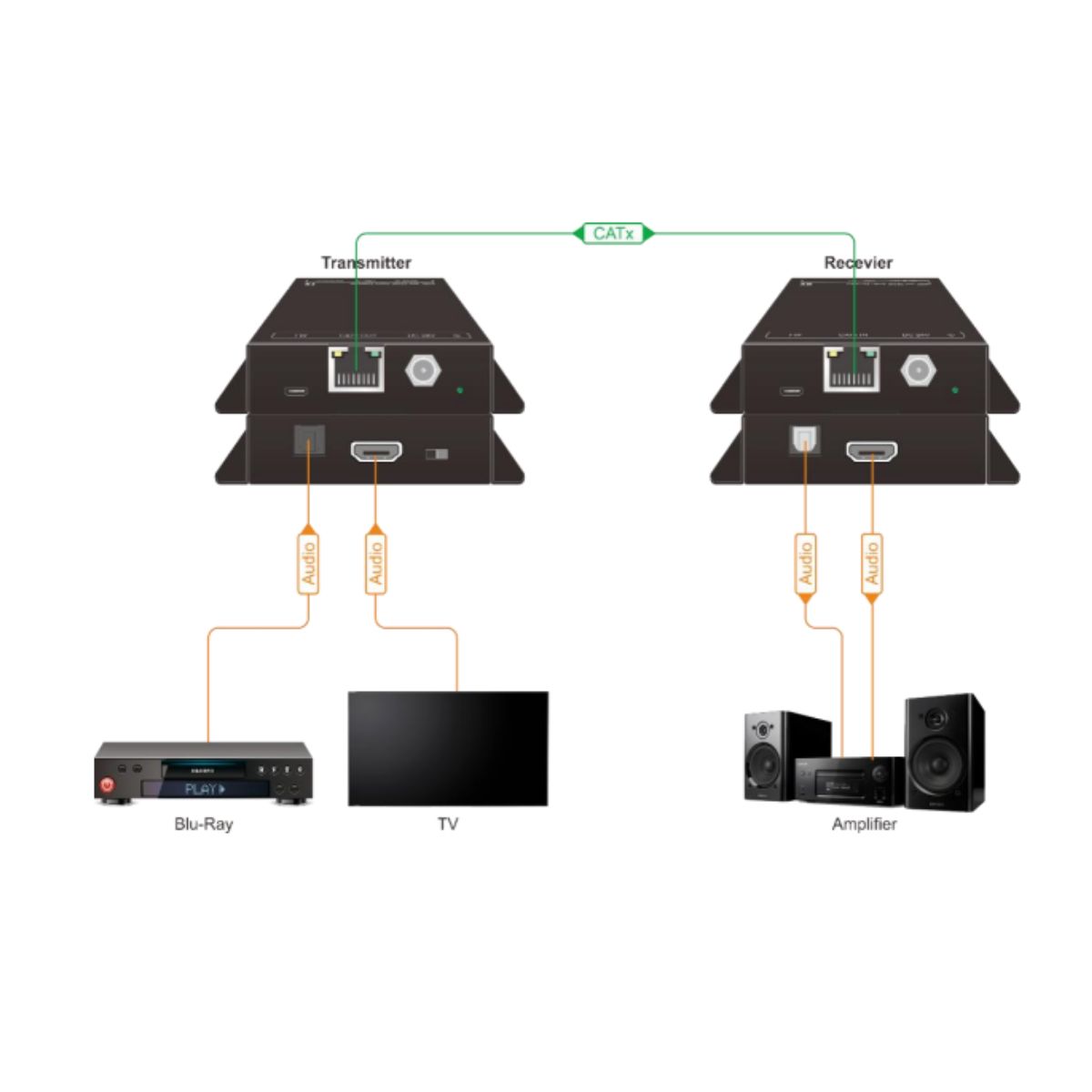

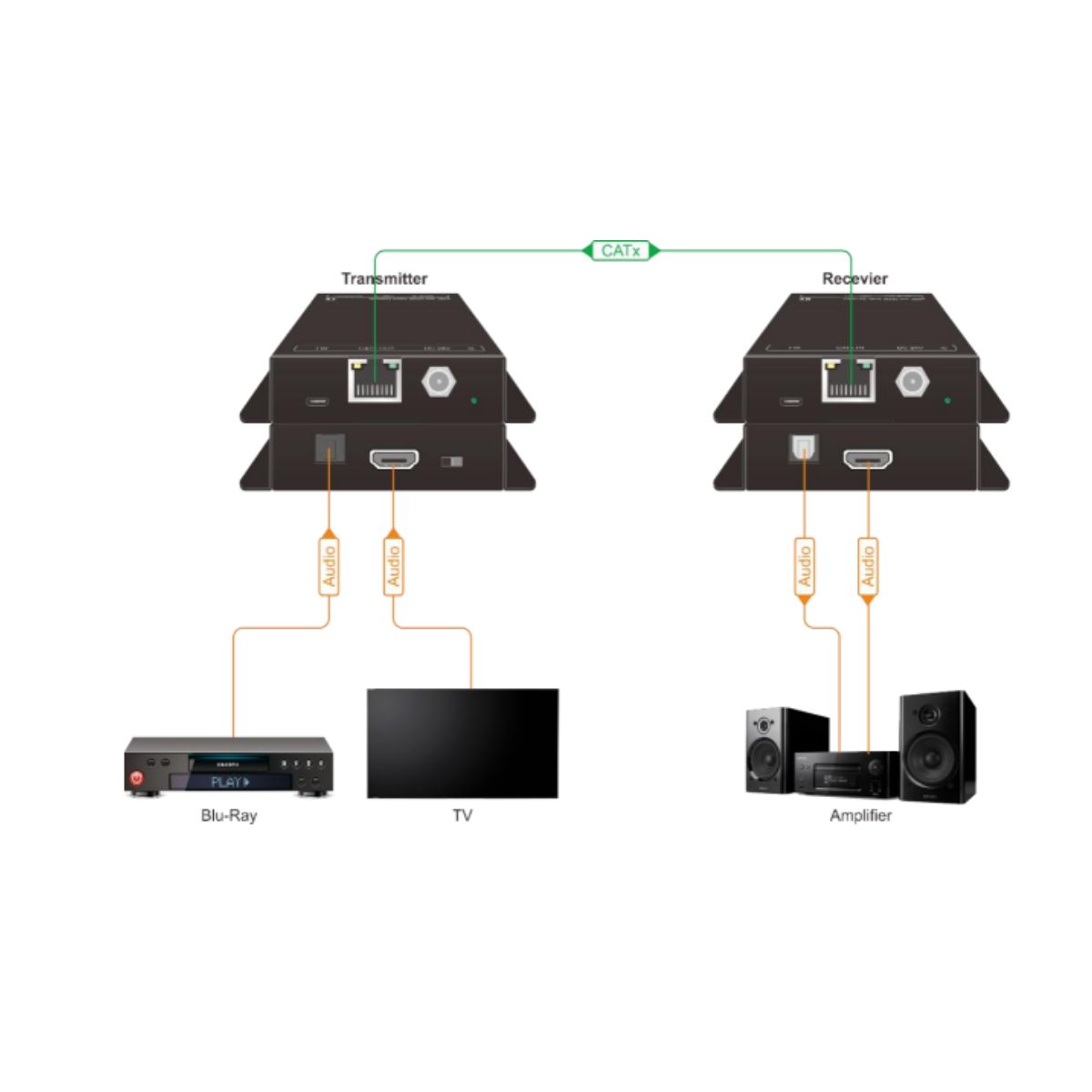

The product is an audio extender set that includes one transmitter and one receiver. It is designed to transmit HDMI eARC / ARC and optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m) via CATx cable. It alsosupportsCECpass-through when HDMI eARC/ARC audio is selected.
- Extend either eARC/ARC or optical digital audio signals over a single CAT cable.
- Supports eARC/ARC distribution distances up to 100m
- Supports optical audio distribution distances up to 200m.
- Supports CEC pass-through when HDMI eARC/ARC mode is selected.
- Bi-directional PoC (Power over Cable)
- Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX
| Input | (1) SPDIF, (1) eARC IN |
| Input Connector | (1) Toslink, (1) HDMI |
| Output | (1) CATx OUT |
| Output Connector | (1) RJ45 |
| Control | (1) FIRMWARE |
| Control Connector | (1) Micro USB |

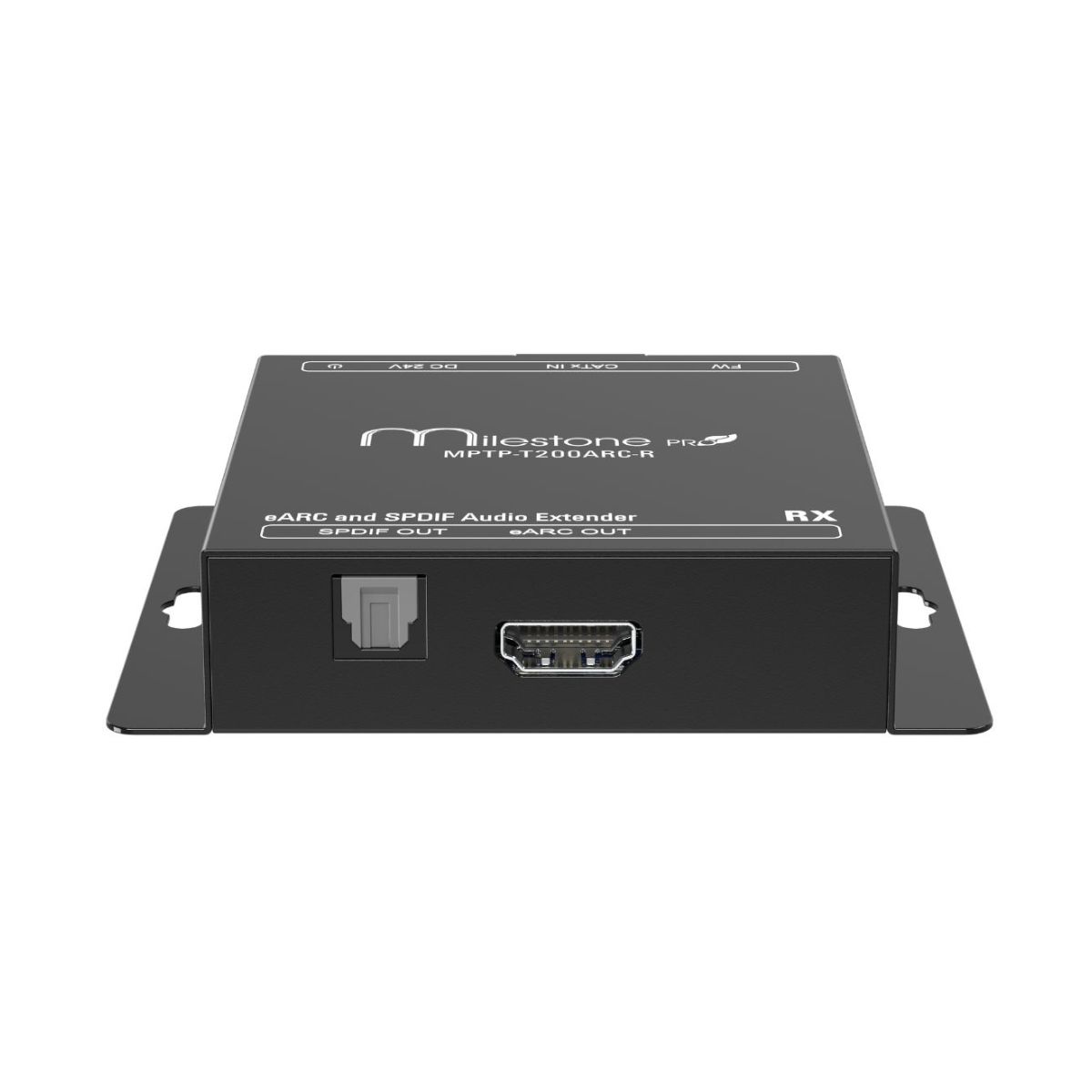

| Receiver | |
| Input | (1) CATx IN |
| Input Connector | (1) RJ45 |
| Output | (1) SPDIF, (1) eARC OUT |
| Output Connector | (1) Toslink, (1) HDMI |
| Control | (1) FIRMWARE |
| Control Connector | (1) Micro USB |
| General | |
| Input Audio Format | eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, DolbyTrueHD,DTS-HD MA, Dolby Atmos ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch |
| Output Audio Format | eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, DolbyTrueHD,DTS-HD MA, Dolby Atmos ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch |
| Frequency Response | All audio: 20Hz ~ 20kHz, < ±0.3dB |
| Sample Rate | SPDIF: 48/96/192 kHz HDMI: 48/96/192 kHz |
| Transmission Distance | SPDIF: Up to 200m (CATx) eARC: Up to 100m (CATx) |
| Power Consumption | 2.5W (max) |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -10 ~ +50℃ |
