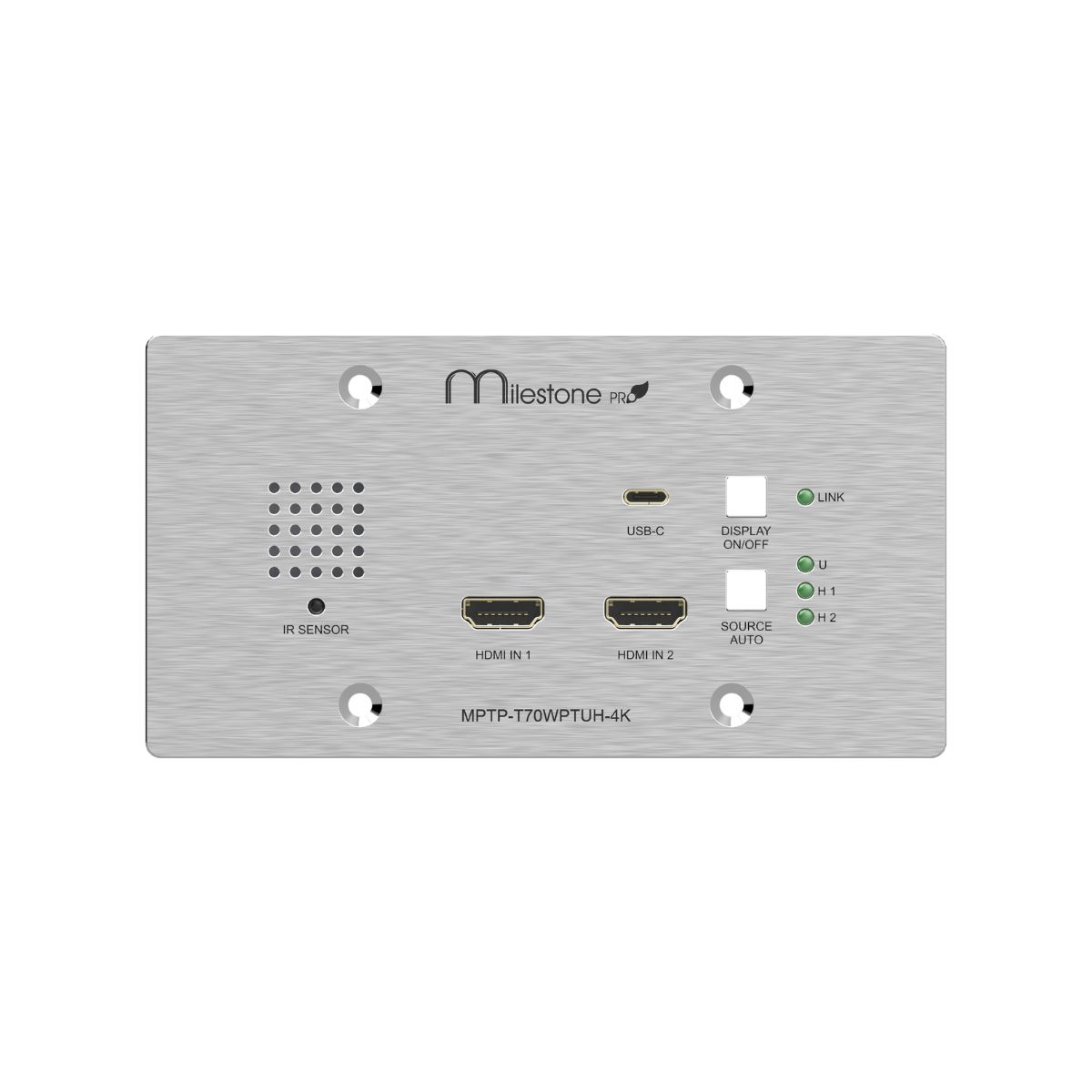

MPTP-T70WPTUH-4K

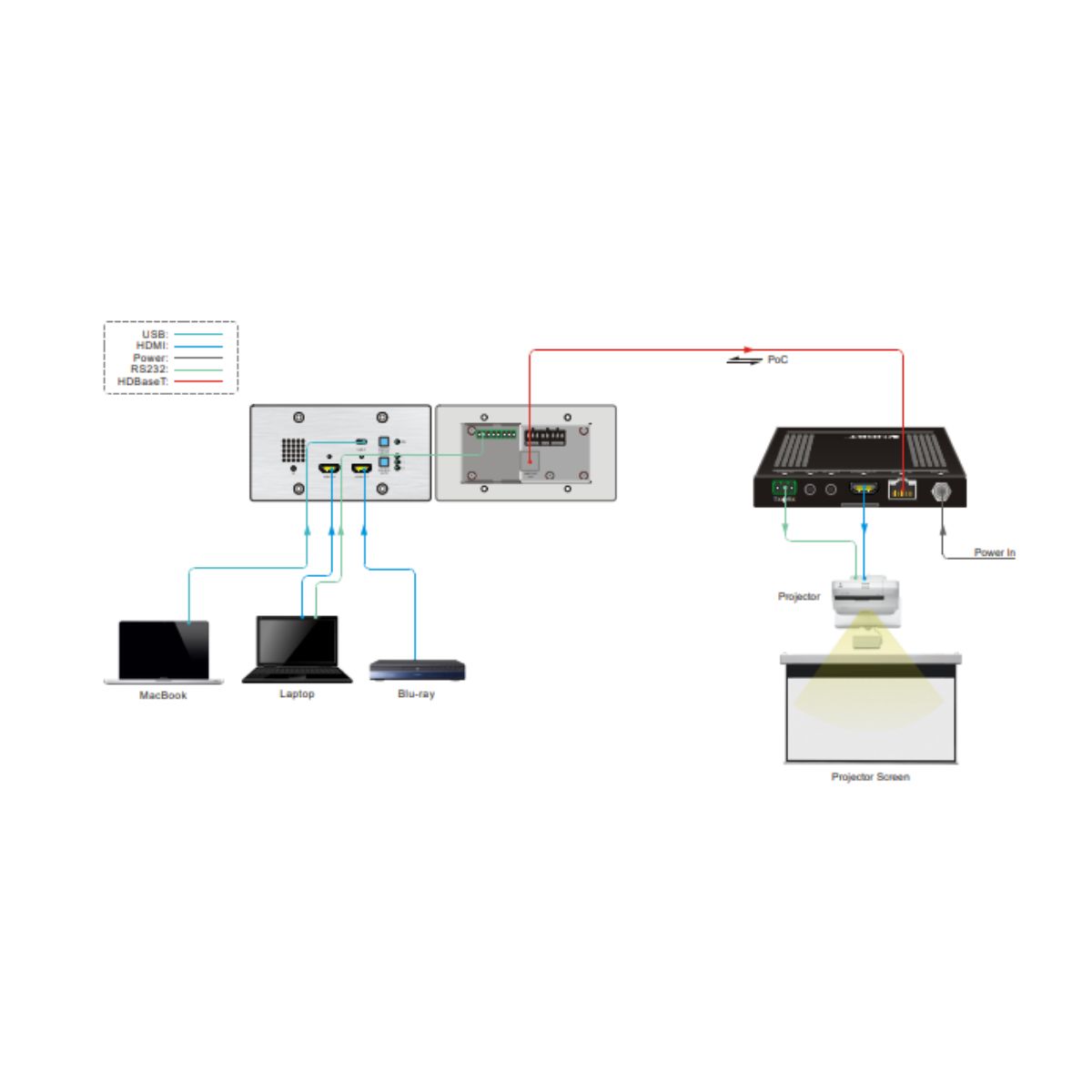

Thanks for choosing the MPTP-T70WPTUH-4K 3x1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or SL import input signal tofar-enddisplaydevice, and the transmission distance is up to 131ft/40m at 4K and 229ft/70mat 1080Pvideo by using a single CATx cable

Contact to Seller
  • Supports HDMI signal up to 4K@60Hz 4:2:0, Slimport signal up to4K@30Hz4:4:4.
  • Supports HDMI 1.4 standard and HDCP 2.2 compliant. Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
  • Active input automatic detection.
  • Extending HDMI signal 4K@60Hz up to 131ft/40m and 1080P@60Hzupto229ft/70m
  • Supports RS232 pass-through with HDBaseT connection and local control.
  • Supports IR pass-through to extend the IR signal to the control display device.
Download Product catalog

Input

Input (2) HDMI, (1) USB-C (Slimport)
Input Connector (2) Female type A HDMI, (1) Type-CUSB
HDMI Input Resolution Up to 4K/UHD@60Hz 4:2:0
Slimport Input Resolution Up to 4K/UHD@30Hz 4:4:4
Output
Output (1) HDBT OUT
Output Connector (1) RJ45
HDBT Output Resolution Up to 4K/UHD@60Hz 4:2:0
Control
Control Ports (1) IR, (1) FIRMWARE, (1) RS232, (1) IRIN
Control Connector (1) Built-in IR sensor, (1) Micro-USB, (2) 3-pin terminal block
