MPTP-TU100S-3.0D

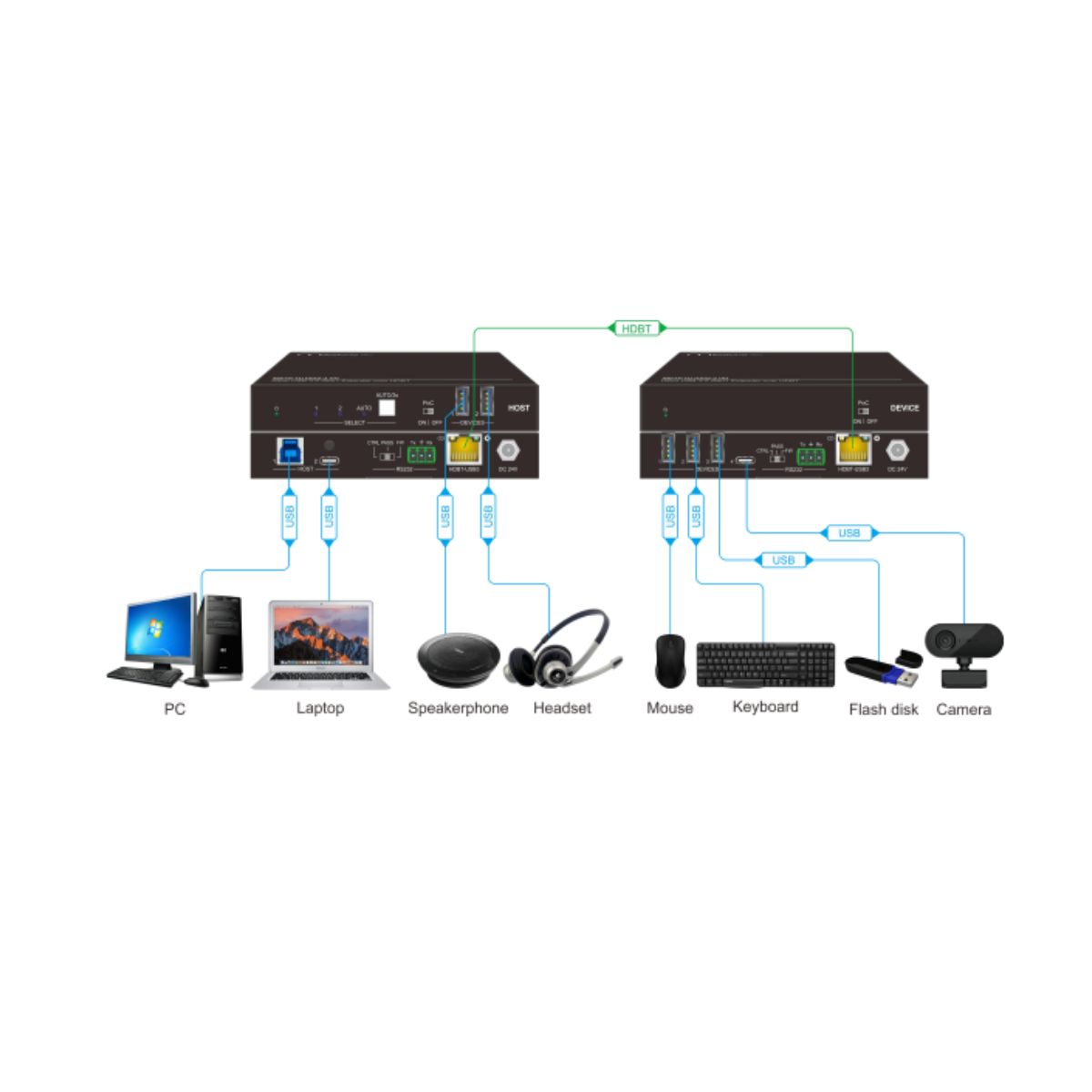

Thanks for choosing the 100m USB 3.2 Gen1 extender. The extender is designedtotransmit USB signal up to 100m distance. MPTP-TU100S-3.0D is the deviceport oftheextender, it contains four USB ports. Applications include extending USB3conferencingcameras, video capture devices, and audio devices for boardrooms andconferencerooms. It is also ideal for use with all USB peripherals in addition to USB3.2Gen1conference cameras including: flash drives, hard drives, keyboards, mice, interactivewhite boards, touchscreens, audio devices, and other USB 3.2 Gen1 devices.
- USB3.2 Gen1 data transfer rate up to 5Gbps;
- Support extends the USB signal up to 100m.
- Support RS232 pass-through/control/upgrade;
- Support USB device power management.
- Bi-directional 24V PoC power supply.
MPTP-TU100S-3.0D
| Devices Connector | (3) Type-A USB (1) Type-C USB |
| Devices Power | Devices share a 3A current limit; the single port power supply maximum limit is 1.7A |
| USB Version | USB 3.2 Gen1 |
| Control Part | |
| Control | (1) RS232 (1) DIP switch |
| Control Connector | (1) 3-pin terminal block (1) 2-pinDIP switch |
| General | |
| Transmit distance | Up to 100m with CAT6A cable (The current version only reaches the 70mextension) |
| Data Rate | 5Gbps |
| Operation Temperature | -10℃ ~ +55℃ |
