MPTP-TU100S-3.0h

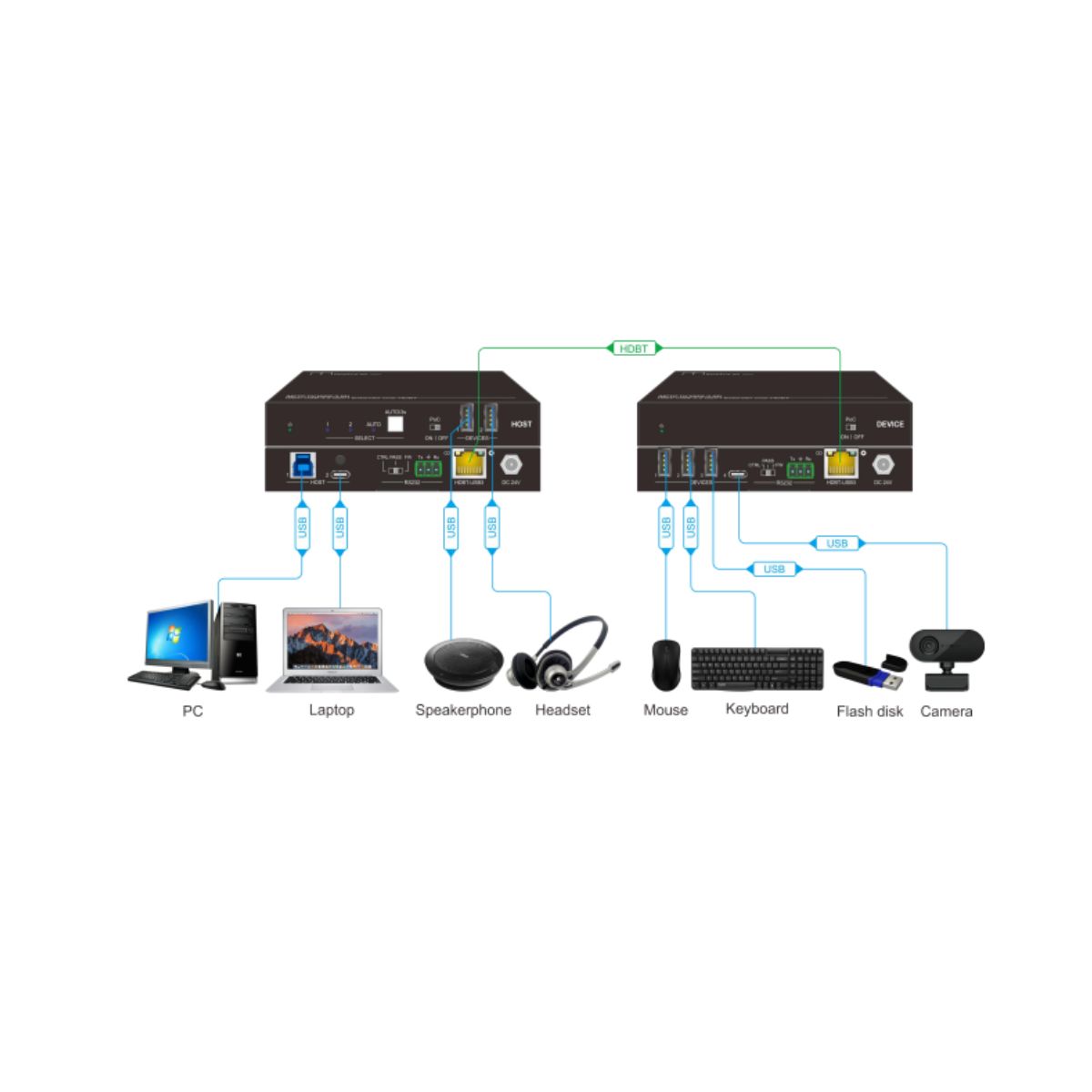

Thanks for choosing the 100m USB 3.2 Gen1 extender. The extender is designedtotransmit USB signal up to 100m distance. MPTP-TU100S-3.0H is the host port of the extender; it contains one Type-B and one Type-C for PC or laptop connection. It also has two local USB-A ports with a 5V 500mA power supply for speakerphone and headset. The extender also supports bi-directional 24V PoC power.
- 2x1 USB 3.2 Gen1 switcher;
- Support extends the USB signal up to 100m.
- Support RS232 passthrough/control/upgrade
- Auto/manual switching mode
- Bi-directional 24V PoC power supply
MPTP-TU100S-3.0H

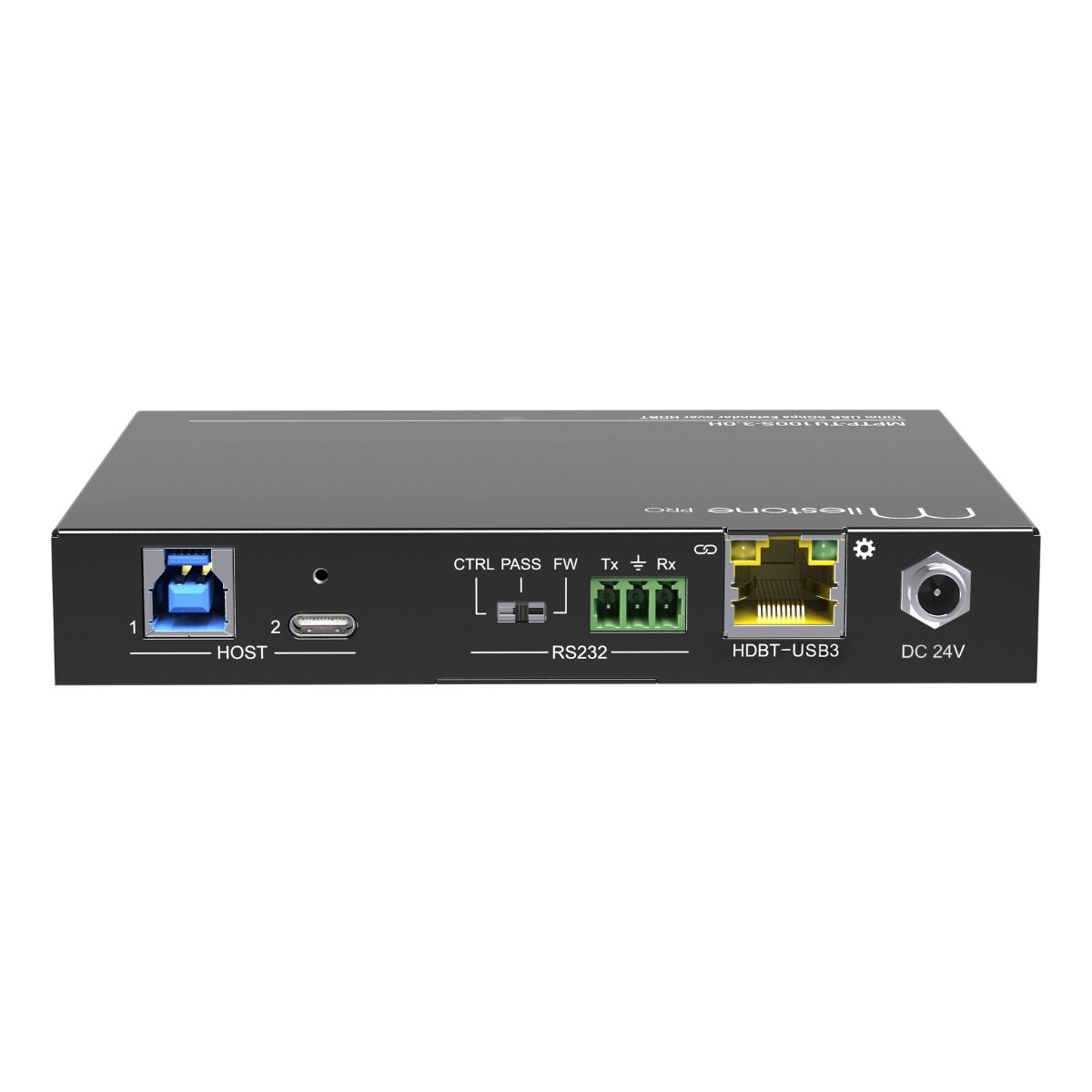

| Host Connector | (1) Type-B USB (1) Type-C USB |

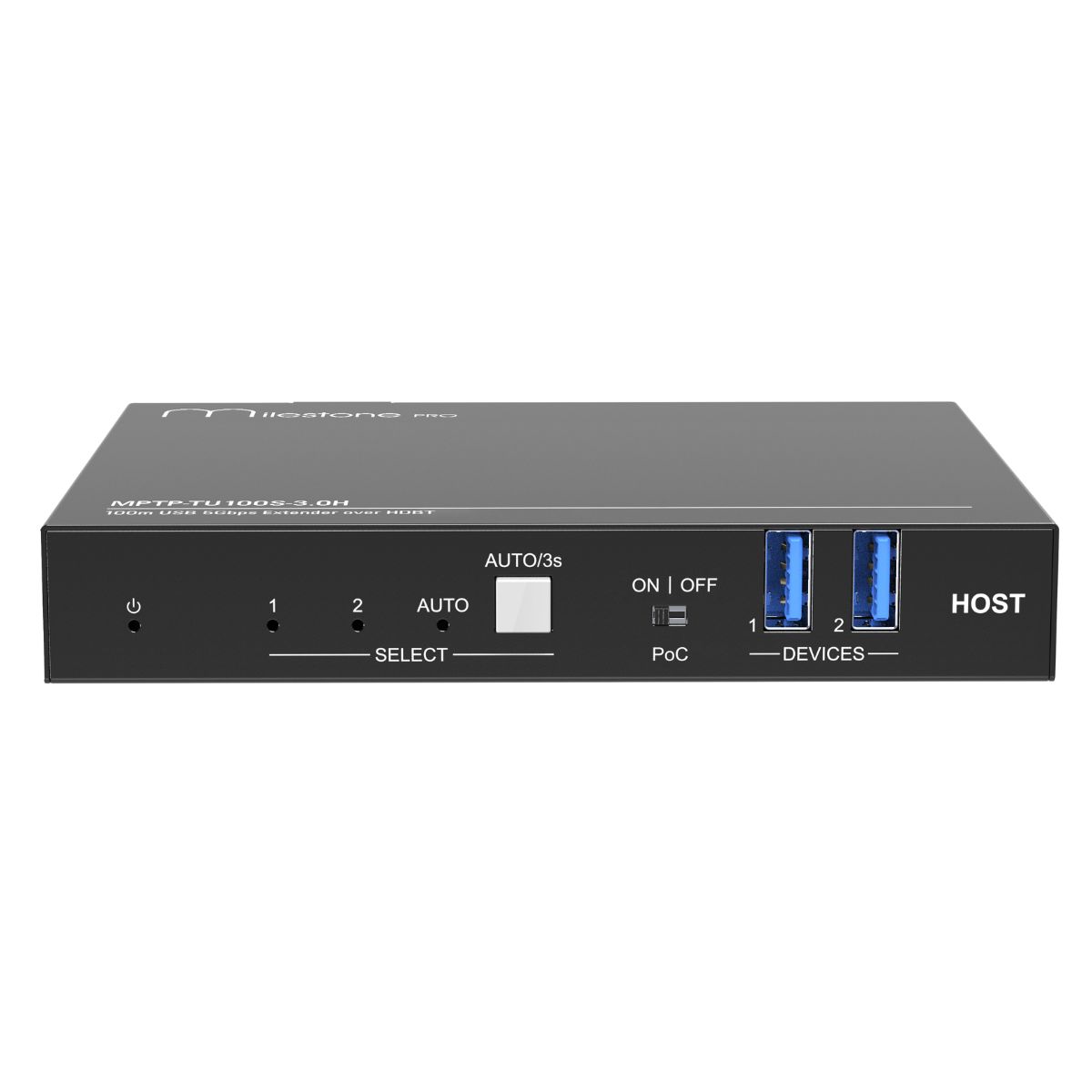

| Devices Connector | (2) Type-A USB |
| Devices Power | 5V 500mA total |
| USB Version | USB 3.2 Gen1 |
| Control Part | |
| Control | (1) Button, (1) RS232, (1) DIP switch |
| Control Connector | (1) White Button, (1) 3-pin terminal block, (1)2-pin DIP switch |
| General | |
| Transmit distance | Up to 100m with CAT6A cable (The current version only reaches the 70mextension) |
| Data Rate | 5Gbps |
