MPTP-TU100S-KIT

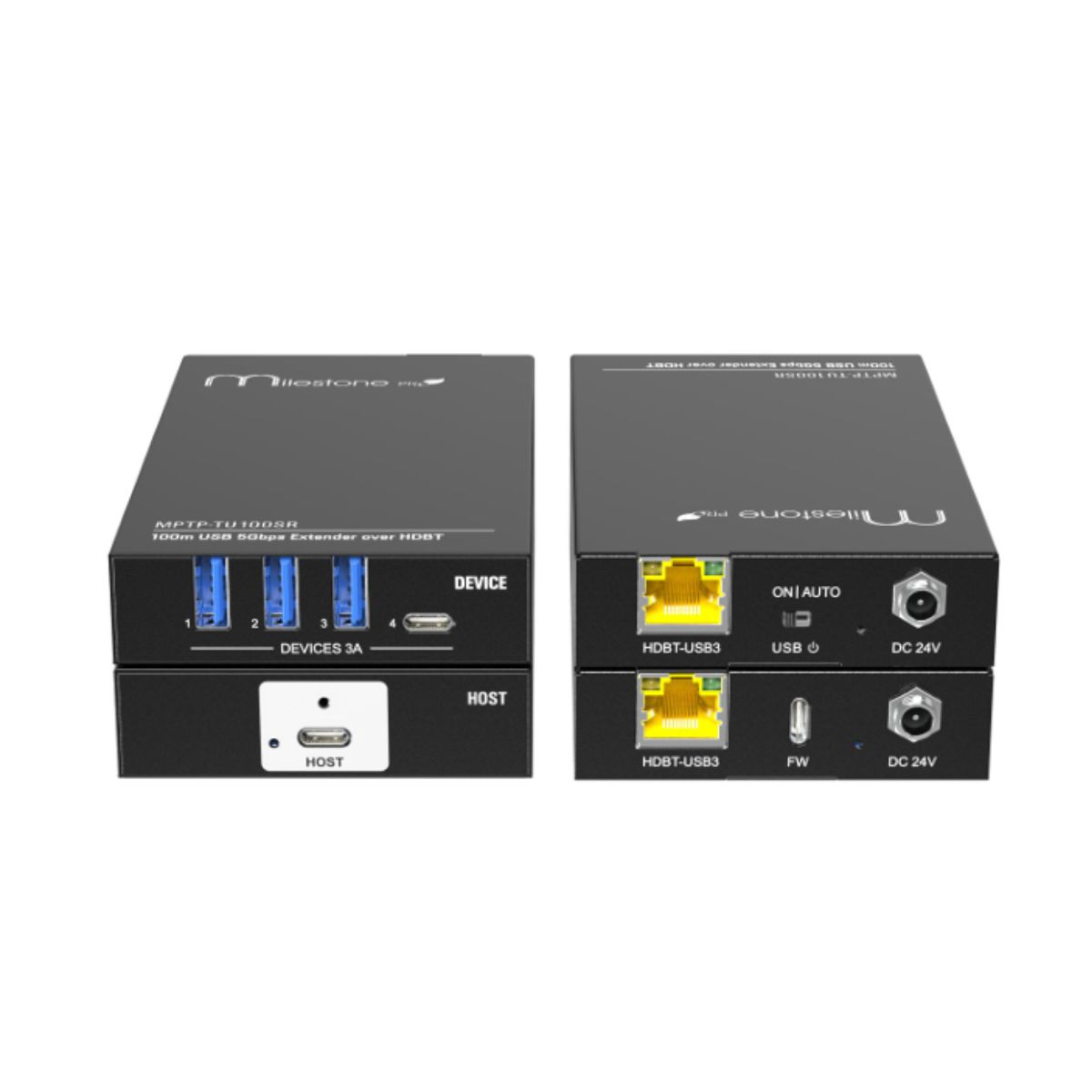

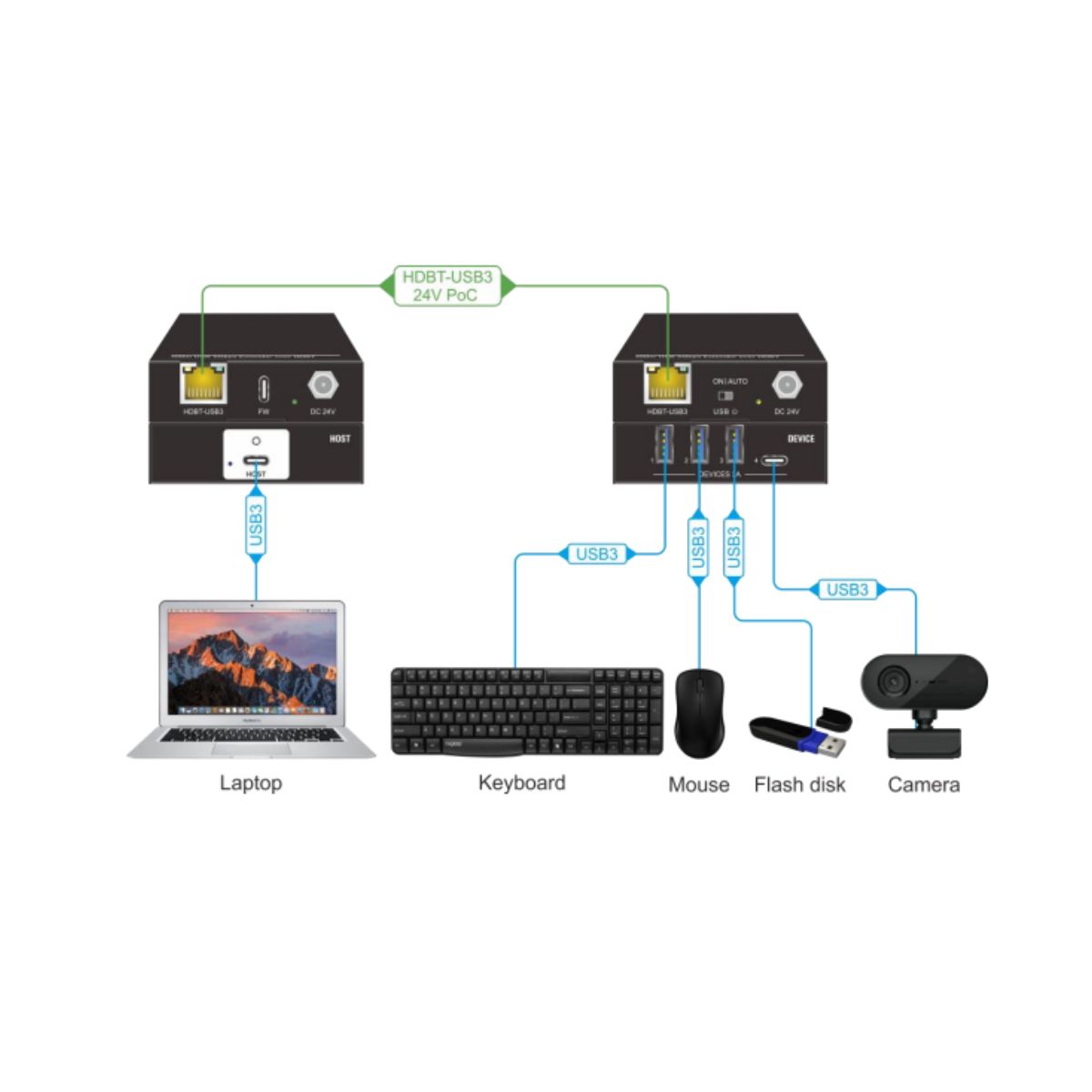

Thanks for choosing the100m USB 5Gbps Extender kit. The extender, which includes a host and a device, is designed to transmit a USB signal up to 100 m. The host port contains one Type-C for PC or laptop connection; the device port with USB power management contains four USB ports. Applications include extending conferencing cameras, video capture devices, and audio devices for boardrooms and conference rooms. The extender also supports a two-way 24V PoC power supply.

Contact to Seller
  • USB3.2 Gen1 data transfer rate up to 5Gbps;
  • Up to 100m extension over a single CAT6a cable;
  • Support USB device power management
  • Provides up to 3A current for devices
  • Two-way 24V PoC power supply

MPTP-TU100ST

Host Connector (1) Type-C USB
USB Version USB 3.2 Gen1
FW Port (1) Type-C USB
Dimension (W*H*D) 130.0mm x 21.5mm x 75.0mm
Net Weight 240g

MPTP-TU100SR

Devices Connector (3) Type-A USB (1) Type-C USB
Devices Power Devices share a 3A current limit
USB Version USB 3.2 Gen1
Dimension (W*H*D) 130.0mm x 21.5mm x 75.0mm
Net Weight 275g
