MPTP-TUH-100KVM

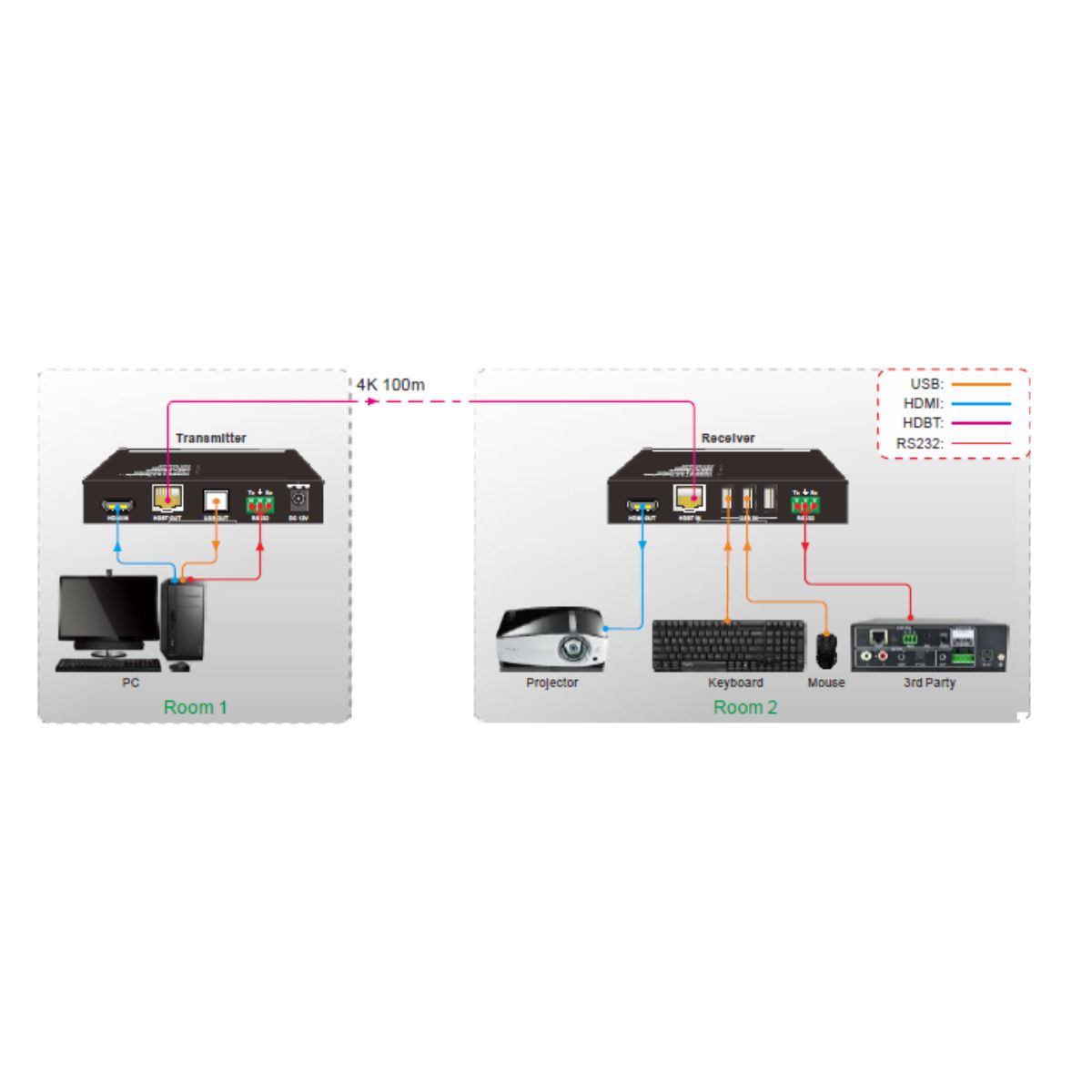

Compliant with HDMI 1.4 & HDCP 2.2, The HDBaseT 2.0 KVM Extender Set is a 4K HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals and PoC over a single CAT5e/6 cable. The unidirectional PoC compliant extender comes with only one power supply, which means that the Receiver can be powered via Transmitter to save installers time and added cost to installing a power outlet. Ideally designed for smart displays and KVM solutions fitting digital signage markets
- Compatible with HDMI 1.4 and is backwards compatible with all previous HDMI standards (e.g., HDMI 1.4), delivers high-resolution AV signal (1080p 3D, 4K@60Hz)
- Support HDBT 2.0, transmit 1080p/4K signal up to 100m over a single CAT6 cable
- EDID Pass-Thru
- HDCP 2.2 compliant
- Front panel status LEDs for power, HDBT link, & HDCP
- USB & RS232 control

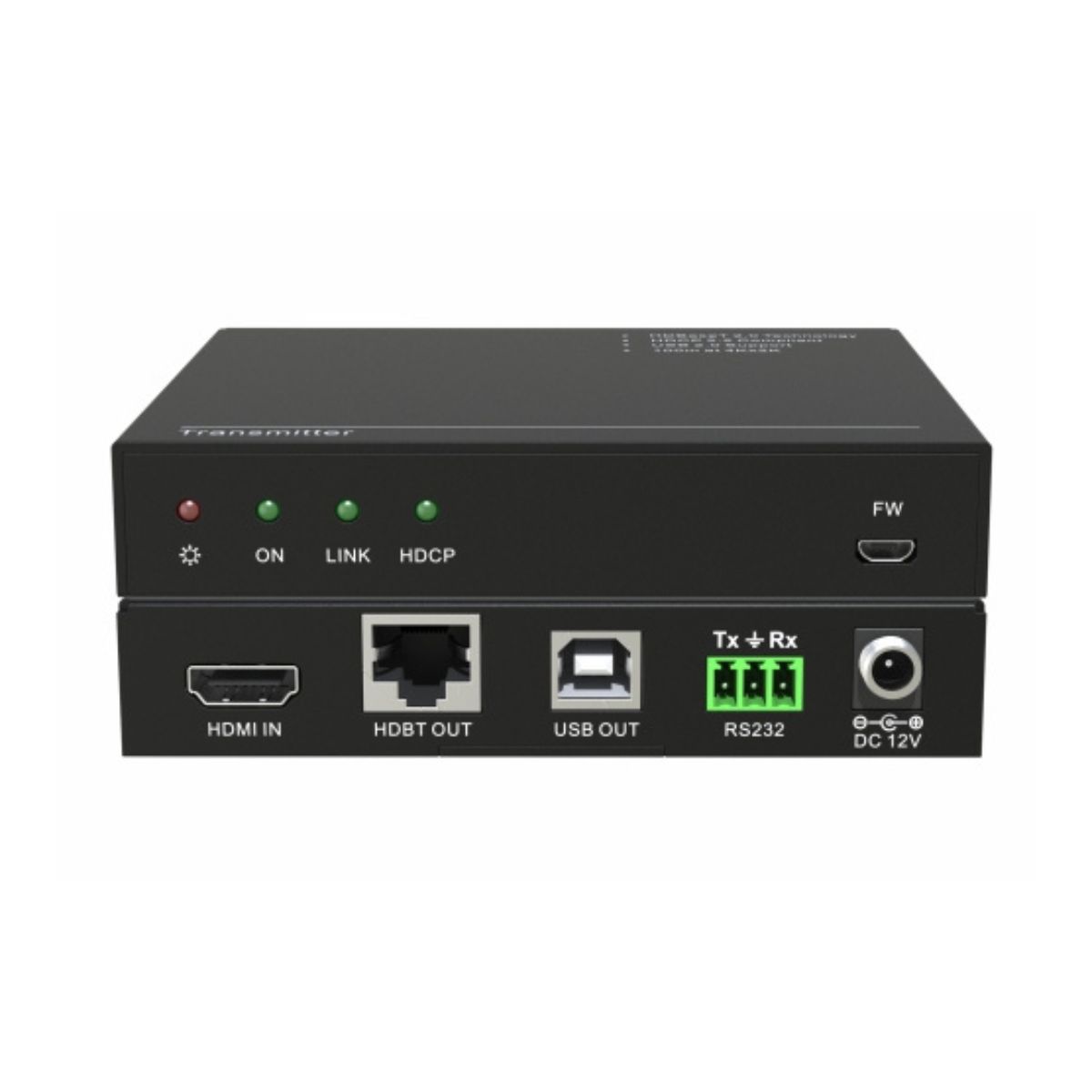

Transmitter
| Input | (1) HDMI |
| Input Connector | (1) 19-pin Type-A male HDMI |
| Output | (1) HDBT, (1) USB OUT |
| Output Connector | (1) RJ45, (1) Type-B USB |
| Control | (1) RS232 |
| Control Connector | (1) 3-pin pluggable terminal block |

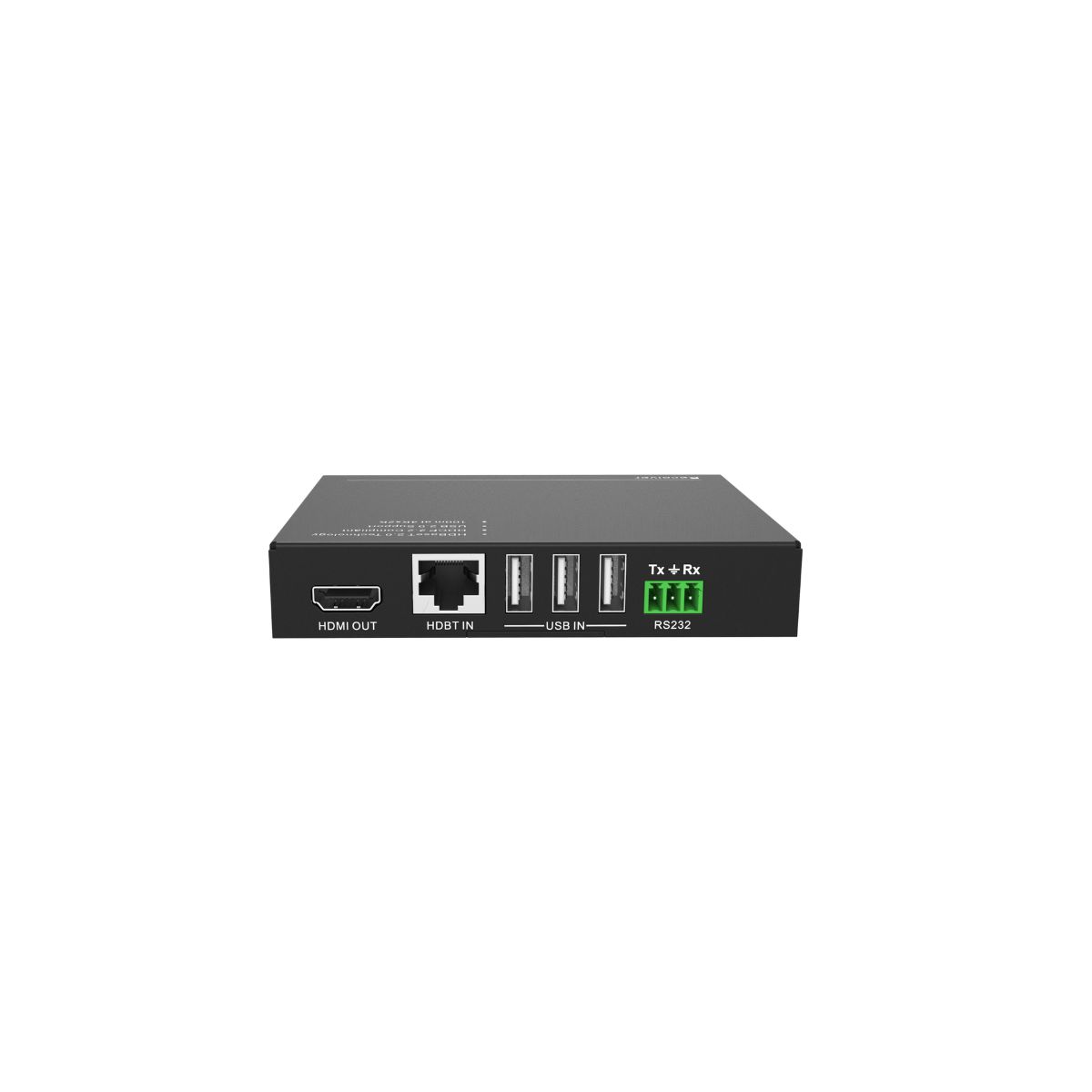

Receiver
| Input | (1) HDBT, (1) USB IN |
| Input Connector | (1) RJ45, (1) Type-A USB |
| Output | (1) HDMI |
| Output Connector | (1) 19-pin Type-A male HDMI |
| Control | (1) RS232 |
| Control Connector | (1) 3-pin pluggable terminal block |
