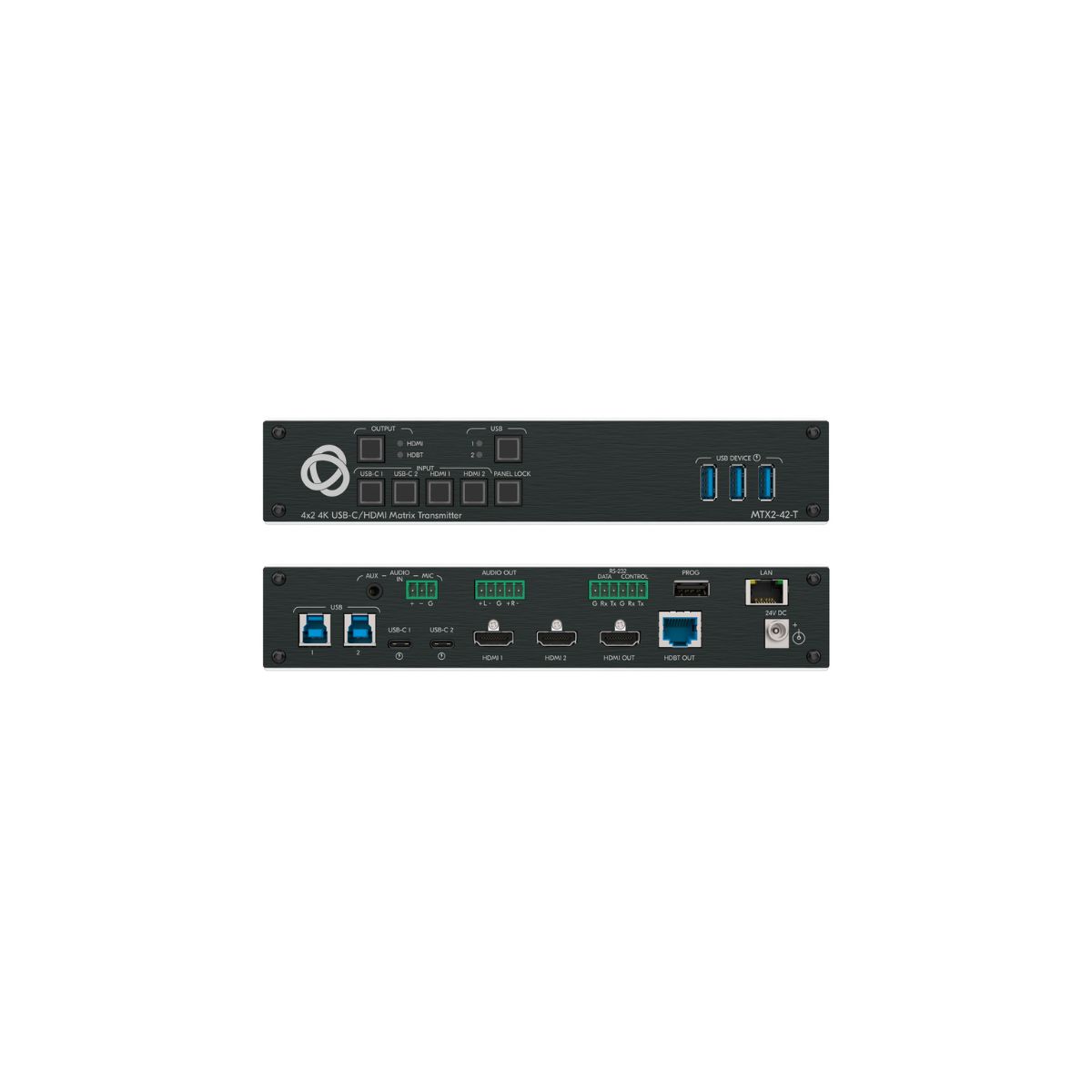

MTX2-42-T

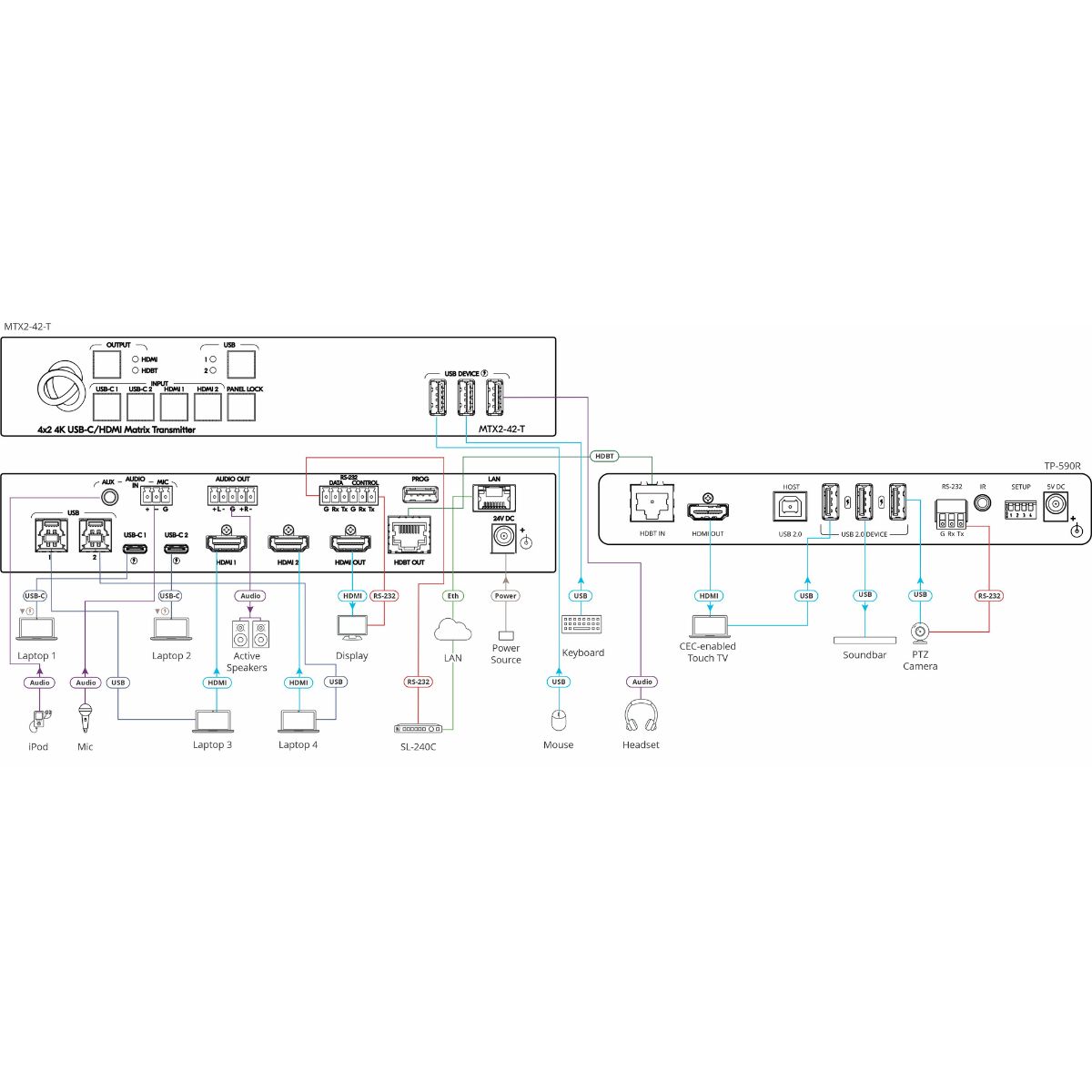

MTX2−42−T is a high−performance integrated matrix transmitter with two USB−C and two HDMI/USB inputs independently routable to HDMI and HDBT outputs. With a compatible receiver, the remote USB peripherals (such as a room camera) are extended for use of local USB host, for convenient hybrid meeting operation with both room and online participants.

Contact to Seller
  • AV and USB 3.0 coupled–signals switching
  • Built–in full USB–C docking
  • Integrated Mic & audio lines insertion/extraction
  • Remote control and management
Download Product catalog

INPUTS
  • 2 HDMI: On female HDMI connectors
  • 2 USB–C: On USB–C female connectors
  • 1 Mic/Unbalanced Stereo Audio: On a 3–pin terminal block connector
  • 1 AUX Unbalanced Stereo Audio: On a 3.5mm mini jack

OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • 1 HDBaseT: On an RJ–45 connector
  • 1 Balanced Stereo Audio: On a 5–pin terminal block connector

Ports
  • 1 Ethernet: On an RJ–45 connector
  • 1 Control RS–232: On a 3–pin terminal block connector
  • 1 Data RS–232: On a 3–pin terminal block connector
  • 1 Program USB: On a USB Type A connector for firmware upgrade
  • 3 USB (HUB): On USB type A connectors
  • 2 USB (Host): On USB type B connectors
  • Integrated USB Hubs: 2

Video
  • Max Data Rate: USB–C and HDMI ports: 18Gbps
  • Max Data Rate: HDBT port: 10.2Gbps
  • HDMI Support: 4K60, CEC, xvYCC color
  • Content Protection: HDCP 1.4 and 2.2

USB Features
  • Data Rate: USB 3.0 Ports: 5Gbps
  • Data Rate: USB 2.0 over HDBT: Up to 127Mbps (out of max 480Mbps)

Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)
  • Compliance: HDBaseT 2.0
