MTX3-16-M

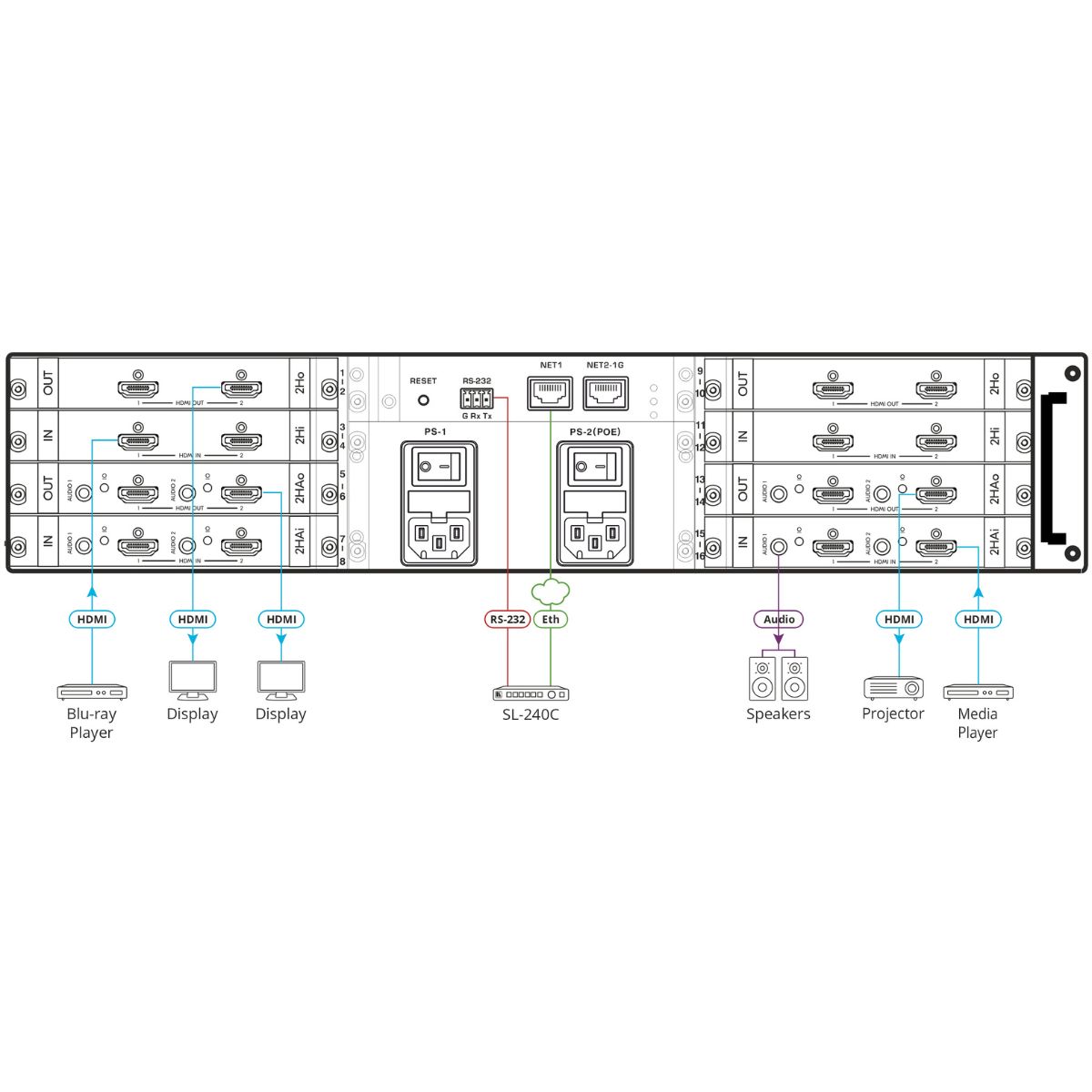

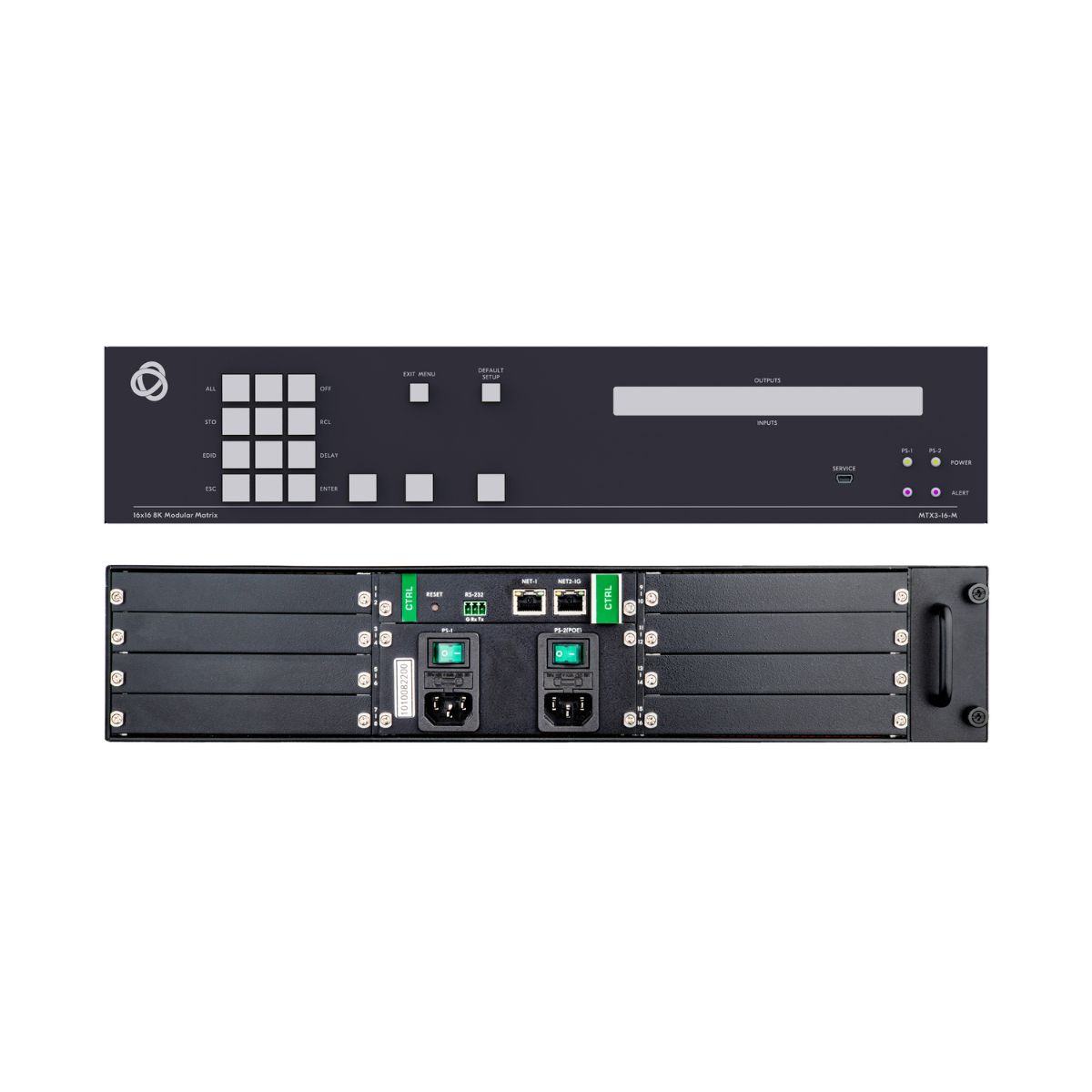

MTX3−16−M is an intelligent and high performance 16−port modular matrix for switching and distribution of multi−format audio−visual signals. The chassis includes a CTRL central control card with secured LAN connectivity for remote management and control, and has eight card slots for flexible insertion of modular matrix cards, accommodating matrix cards with quad or dual ports of either input or output multi−format signals.

Contact to Seller
  • Any mix of multi–format input and output cards
  • 8K–capable 50Gbps backplane data rate
  • Multi–format copper and fiber I/O cards
  • Secured, controlled, and managed matrix
Download Product catalog

Ports
  • Control Card
    1Gbp Ethernet: On an RJ–45 female connector for matrix LAN connection
  • 100Mbps Ethernet: On an RJ–45 female connector for matrix service
  • RS-232: On a 3–pin terminal block for local service
  • RS-232 Baud Rate: 9600/19200/38400/57600/115200 (default)
  • RS-232 Character Frame: 8 bit / No parity / 1 Stop bit / ASCII
  • Chassis
    USB: Mini–USB connector for firmware upgrade

Backplane Data Rate Per Port
  • AV: 50Gbps
  • Ethernet: 1Gbps

Card Slots
  • Central Control: 1
  • I/O: 8

Modules
  • Power: 2
  • Fan: 1

Power
  • Consumption: 100–240V AC, 50/60Hz, 2.2A (Max)
  • Source: 100–240V AC, 50/60Hz

Environmental Conditions
  • Operating Temperature: 0° to + 40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
  • Cooling: Forced air, 3 fans
