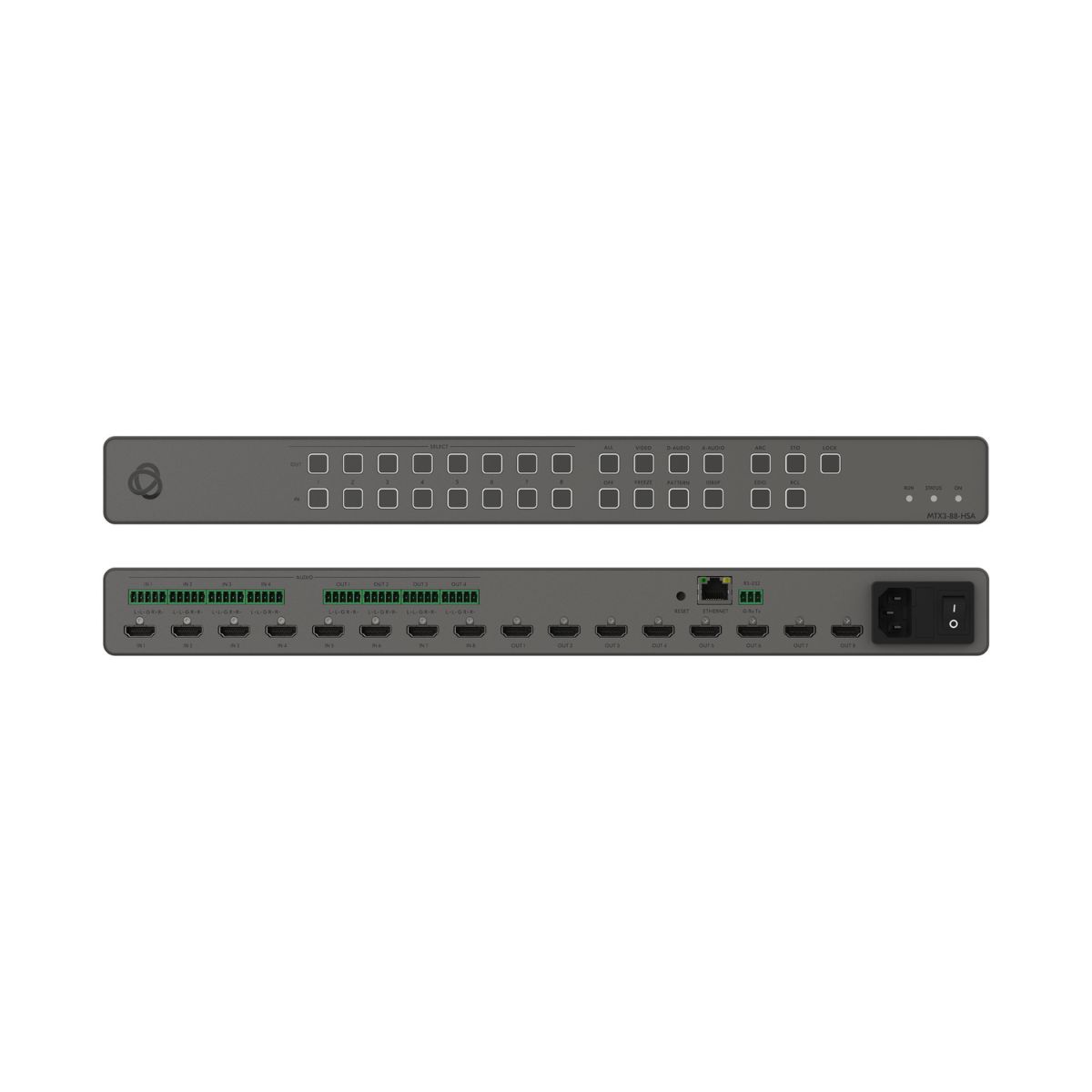

MTX3-88-HSA

MTX3−88−HSA is a high−quality scaler−based matrix with eight HDMI inputs independently routable to eight HDMI outputs. The video scaling processor provides a fast and clean (<1sec) switching time. Each HDMI output supports down or up scaling to account for any sink / source capability difference. The integrated audio matrix, with four analog audio input and four analog audio output ports, supports the routing of any digital or analog audio source to sink, including ARC (Audio Return Channel) sources.

Contact to Seller
  • 4K60 (4:4:4) resolution
  • Flexible switching & routing
  • Remote control & management
Download Product catalog

Inputs
  • 8 HDMI: On female HDMI connectors
  • 4 Stereo analog balanced audio inputs: On terminal block connectors

Outputs
  • 8 HDMI: On female HDMI connectors
  • 4 Stereo analog balanced audio inputs: On terminal block connectors

Ports
  • 1 RS-232: On a 3–pin terminal block connector
  • 1 Ethernet: On an RJ–45 female connector for device control and management

Video
  • Max. Output Resolution: 4K@60Hz (4:4:4)
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Content Protection: HDCP 2.3
  • Max Switching Time: Standard Mode: 1 sec
  • Compliance: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0b

Audio
  • Routable Signals: Input/output ports, breakaway forward/ARC signals

Control
  • Front Panel: 8x8 select buttons + 12 control buttons with integrated LED for device operation
  • Front Panel: 3 x Status LEDs
