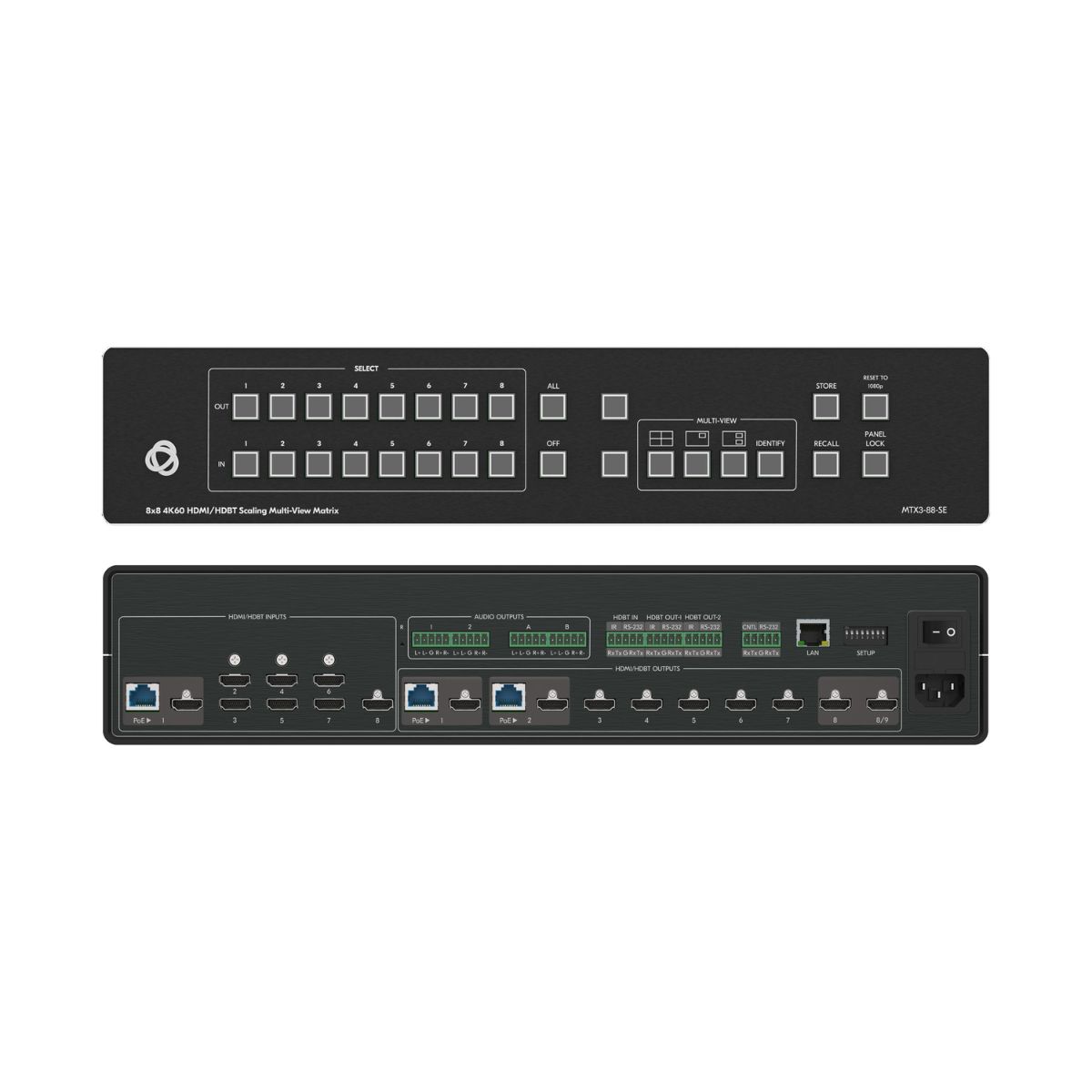

MTX3-88-SE

The MTX3 88 SE is a high−performance video processing seamless matrix scaler, with eight HDMI inputs independently routable to eight HDMI outputs. The matrix features an additional HDBT input and two mirrored HDBT outputs for local and remote presentation of high−quality seamless quad−views.

Contact to Seller

Inputs
  • 8 HDMI: On female HDMI connectors
  • 1 HDBT: On an RJ–45 female connector

Outputs
  • 9 HDMI: On female HDMI connectors
  • 2 HDBT: On RJ–45 female connectors
  • 4 Balanced Stereo Line Level: On 5–pin terminal block connectors

Ports
  • 2 RS-232: On a 5–pin terminal block connector
  • 1 LAN: On an RJ–45 female connector
  • 2 RS-232 + IR (for HDBT outputs): On 5–pin terminal block connectors, for serial and IR link extension
  • 1 RS-232 + IR (for HDBT input): On a 5–pin terminal block connectors, for serial and IR link extension

Extension Line
  • Reach: Up to 100m (330ft)
  • Reach: Note: When using Kramer HDBaseT cables
  • PoE Providing: 15W per 802.3at Type 1
  • Standards Compliance: HDBaseT 3.0

Extended USB
  • Max USB 2.0 Data Rate: 480Mbps
  • Max Transmitted Data Bandwidth: 300Mbps
  • Standards Compliance: USB 2.0 and 1

Extended Ethernet
  • Max Data Rate: 100Mbps



Download Product catalog
  • Powerful Multi–viewer — High–High-resolution flexible multi–view processor, simultaneously displaying dual quad–view presentations each from four inputs, or quad dual–view presentations each from two inputs, concurrently mirrored on dual remote displays.
  •  Seamless Switching — Clean and instantaneous switching between inputs, with smooth and uninterrupted transition between presented content on displays, greatly enhances end–users' presentation experience.
  •  High–Performance Scaling Experience — Built–in ProcAmp high–resolution scaling technology for optimal up or down image scaling and video signal auto–adjustment with output–connected display capabilities, to gain end–users' valuable high presentation experience.
  •  HDMI Signal Switching — HDCP 2.3 compliant, supporting deep color, x.v.Color™, CEC, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
