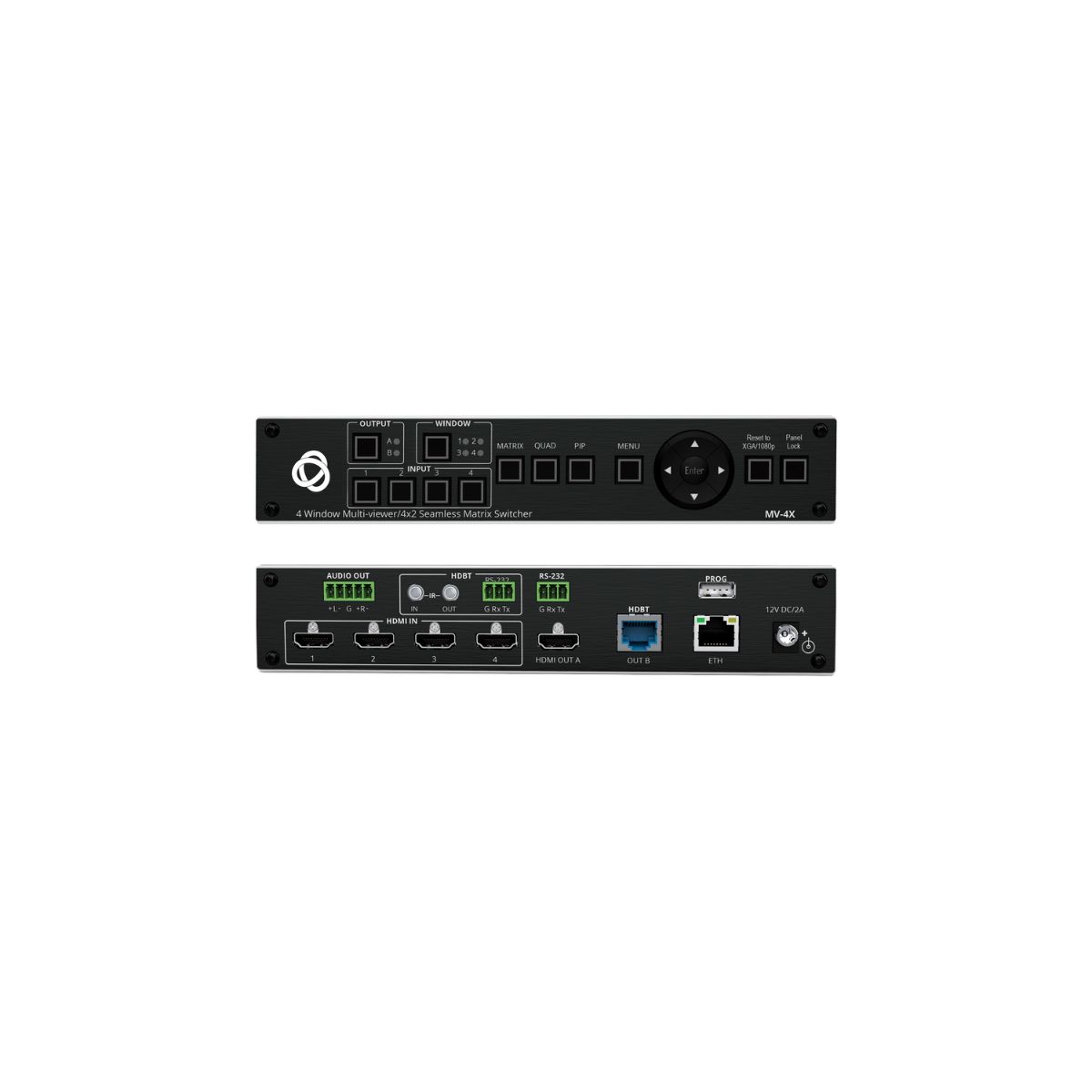

MV-4X

MV−4X is a high−performance HDMI matrix switcher with integrated scaling technology and multi−windowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV−4X is fully compatible with the HDCP 1.x and 2.3 standards.

Contact to Seller
  • High Performance Multi–Viewer — 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs that supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.
  •  Zero–Time Video Cuts — Connect up to four HDMI sources, an HDMI and an HDBT sink, and seamlessly switch between them.
  •  HDMI Support — HDR10, CEC (for outputs only), 4K@60Hz, Y420, BT.2020, Deep Color (for inputs only), x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS–HD, as specified in HDMI 2.0.
  •  Content Protection — Supports HDCP 2.3.
  •  Chroma Keying Support — select to key the video input using a uniform–colored background.
Download Product catalog

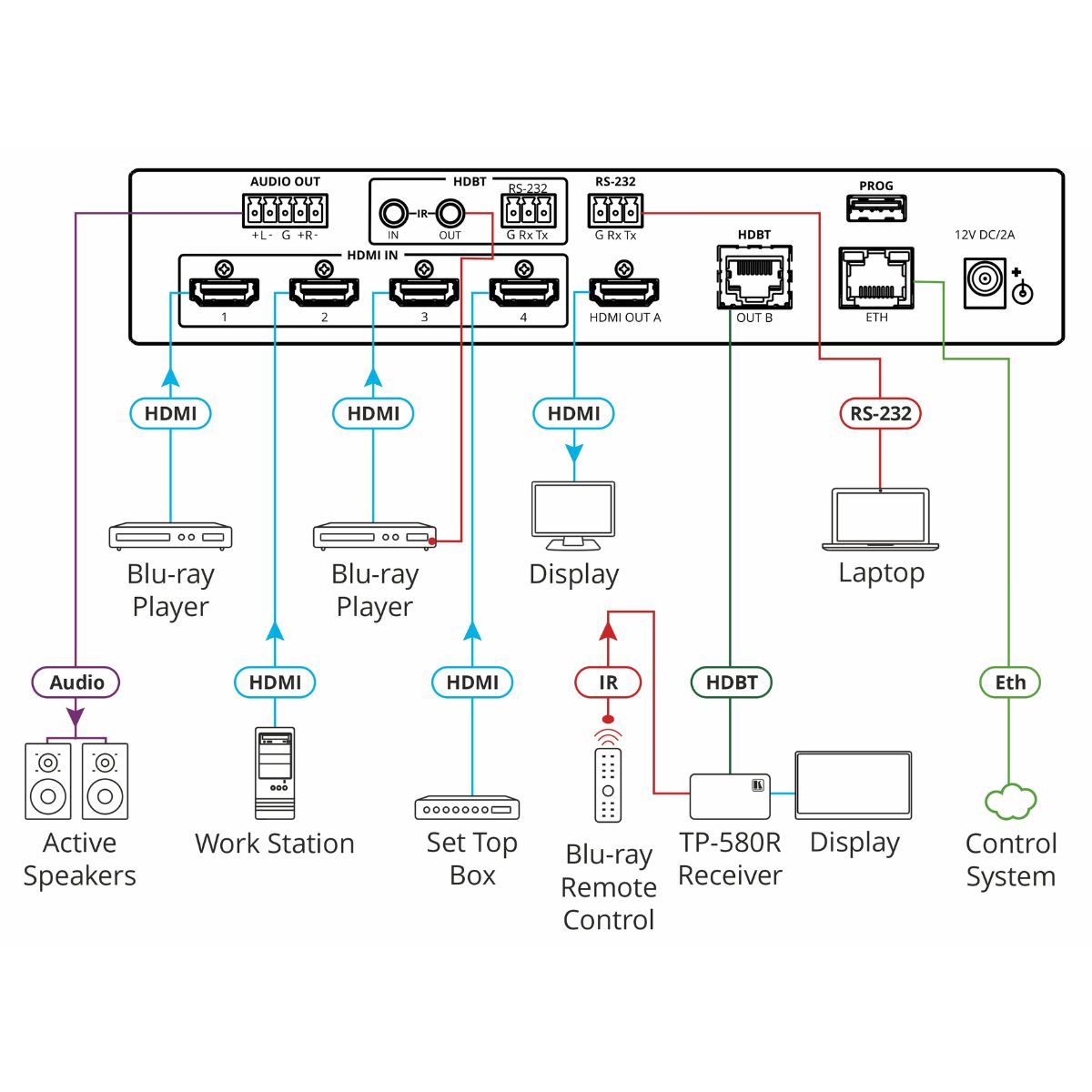

Inputs
  • 4 HDMI: On a female HDMI connector

Outputs
  • 1 HDMI: On a female HDMI connector
  • 1 HDBT: On an RJ–45 connector
  • 1 Balanced Stereo Audio: On a 5–pin terminal block

Ports
  • 1 IR IN: On an RCA connector for IR tunneling
  • 1 IR out: On an RCA connector for IR tunneling
  • 1 RS-232: On a 3–pin terminal block for RS–232 tunneling
  • 1 RS-232: On a 3–pin terminal block for device control
  • Ethernet: On an RJ–45 port
  • 1 USB: On a type A USB port

Video
  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)
  • Max Resolution: HDMI: 4K@60Hz (4:4:4)
  • Max Resolution: HDBaseT: 4K60 4:2:0
  • Compliance: HDMI 2.0 and HDCP 2.3
  • Extension Range: Up to 40m (130ft): At 4K@60Hz 4:2:0
  • Extension Range: Up to 70m (230ft): At full HD (1080p@60Hz)

Control
  • Front Panel: Input, output, and window buttons, operation mode buttons, menu buttons, resolution reset, and panel lock buttons

Indication LEDs
  • Front Panel: Output and window indication LEDs
