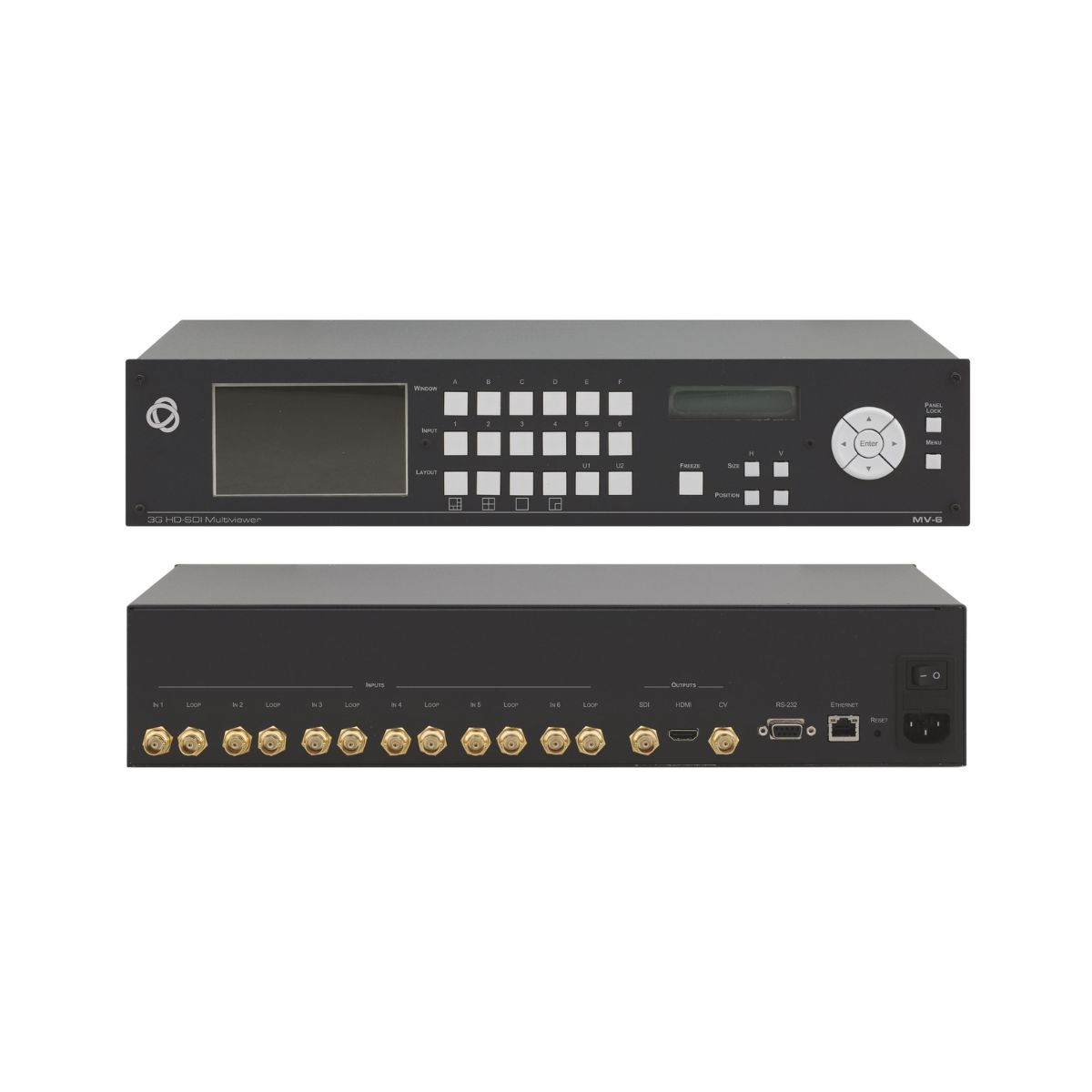

MV-6

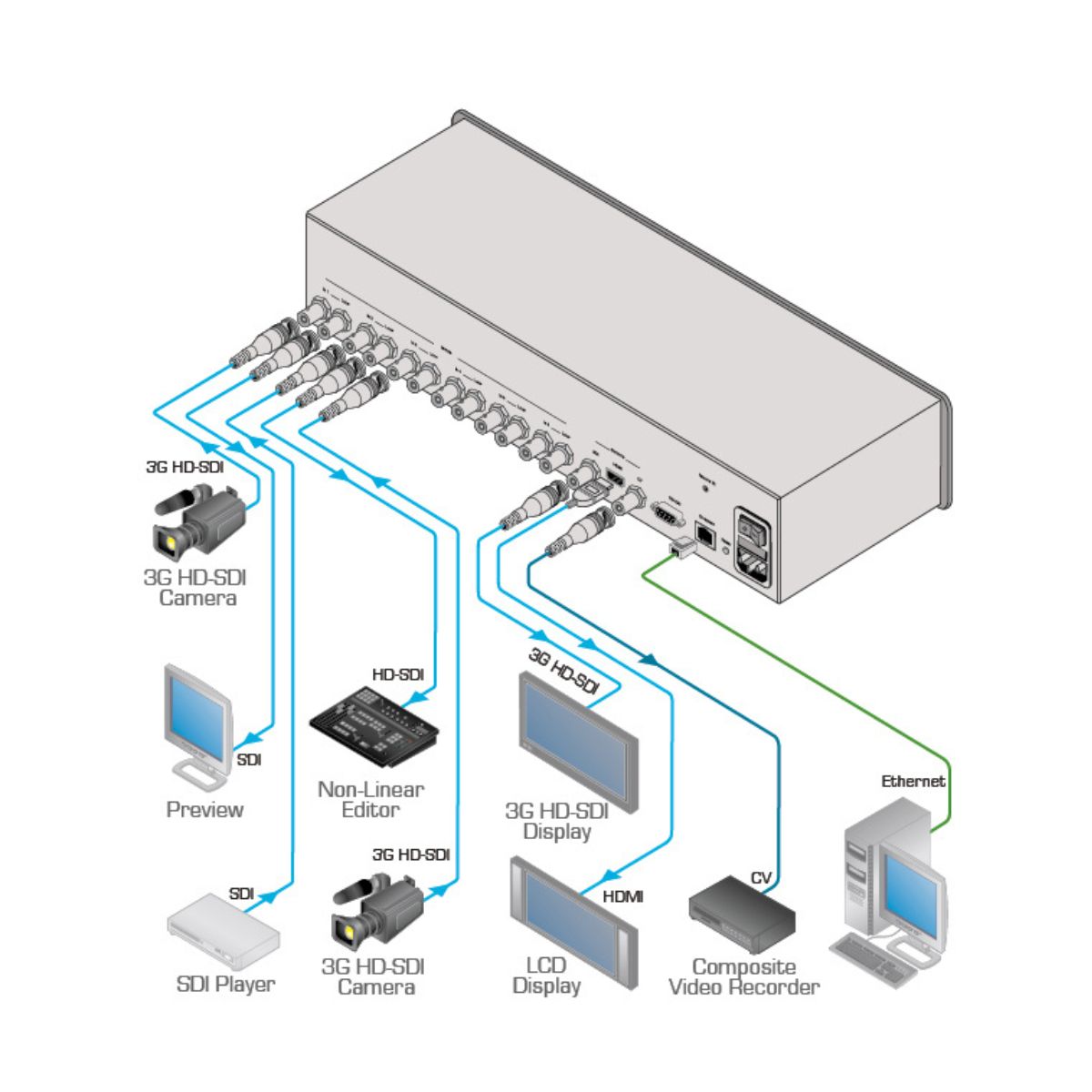

The MV−6 is a versatile, high−performance multiviewer for 3G HD−SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI, and CV formats. Both pre−programmed and customizable screen divisions are supported. The MV−6−MD is certified for medical applications.

Contact to Seller
  • Max. Data Rate — 3Gbps.
  •  HDTV Compatible.
  •  Standards Compliance — Certified for medical applications according to IEC 60601–1–2 (Electromagnetic Compatibility).
  •  Kramer re–Klocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
  •  Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M), and 3G HD–SDI (SMPTE 424M).
  •  Re–clocking Looping Inputs.

INPUTS
  • 6 SD/HD/3G HD–SDI with loop on BNC connectors

OUTPUTS
  • 1 HDMI, 1 CV on a BNC connector (for 720p @50Hz and 1920p @50Hz, the output is PAL,
  • For 720p @59.94/60Hz and 1920p @59.94/60Hz the output is NTSC), 1 HD/3G HD–SDI on a BNC connector

MAX. INPUT LEVEL
  • 800mVpp/75Ω

MAX. OUTPUT LEVEL
  • 800mVpp/75Ω

MAX. DATA RATE
  • Up to 2.97Gbps

CONTROLS
  • Front–panel, RS–232, Ethernet
