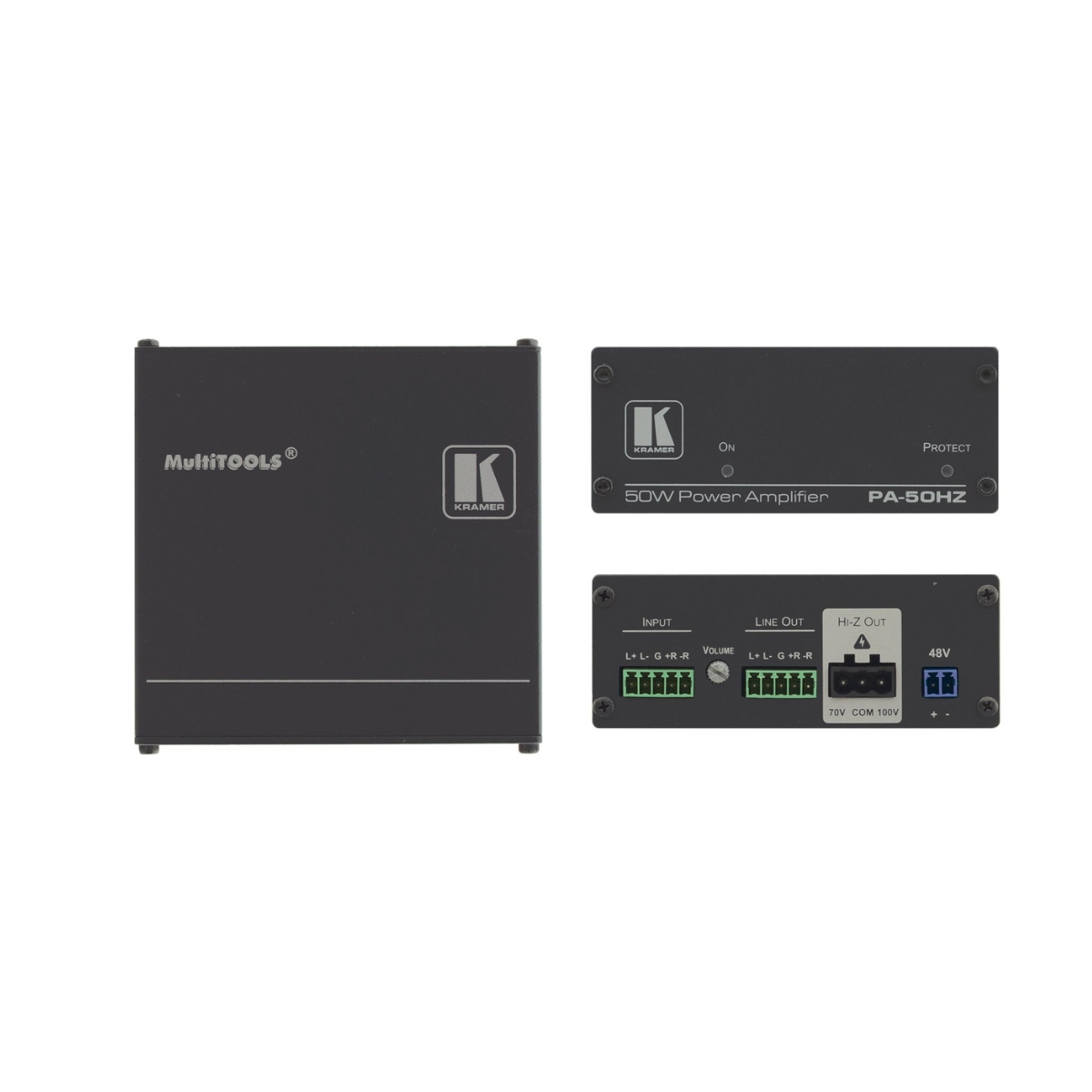

PA-50HZ Power Amplifier
The PA-50HZ (PA-50Z) is a compact Hi-Z power amplifier supporting 70V/100V outputs. It features a line-level output and is ideal for small to medium-sized meeting rooms, classrooms, and AV installations.
- 70V or 100V Amplification
- Balanced Stereo Input and Output
- Input Level Adjustment

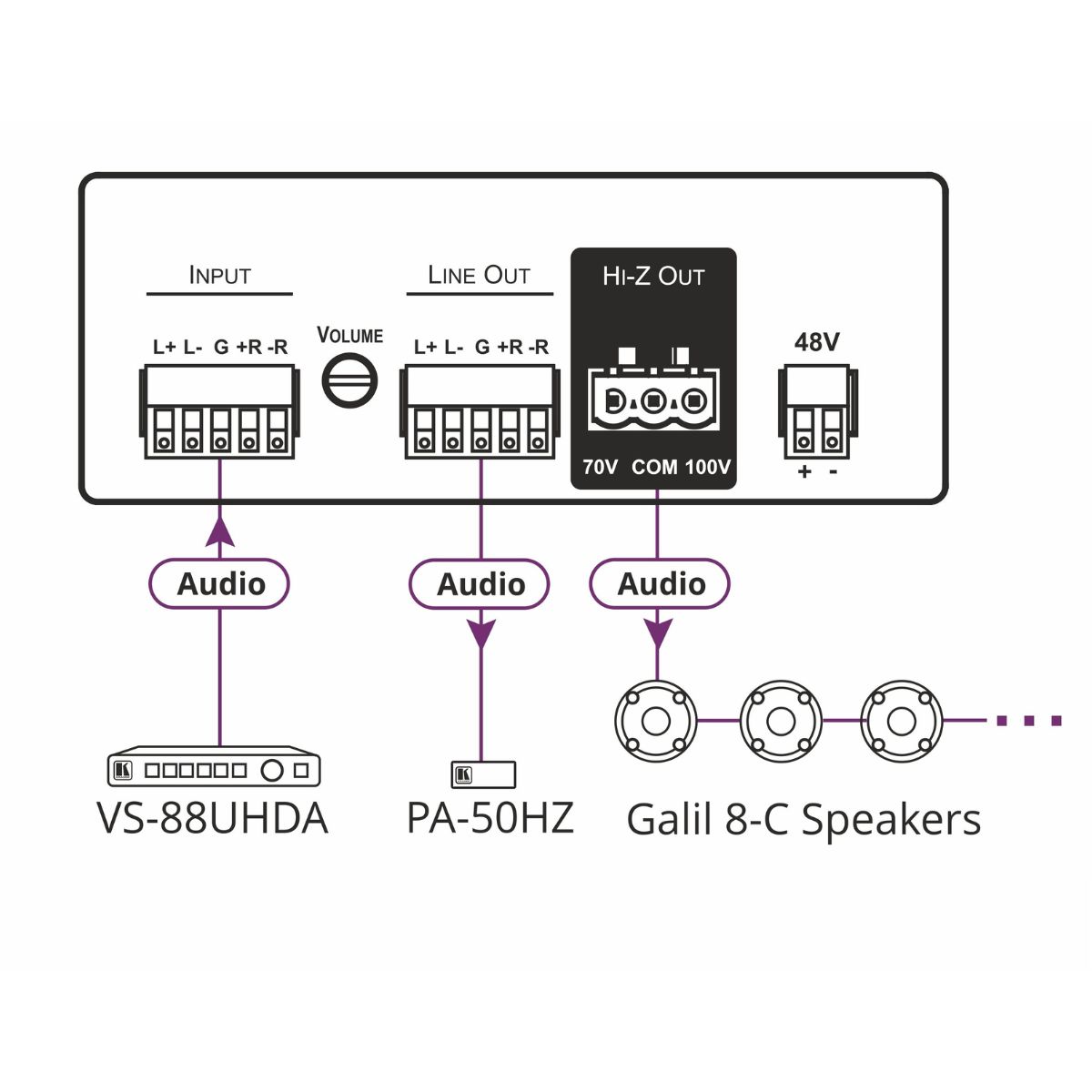

- Cascadable
- Class D Amplifier
| Inputs | 1 Stereo Balanced Audio: On a 5−pin terminal block (up to +4dBu/10kΩ) |
| Outputs | 1 Stereo Balanced Line Level: On a 5−pin terminal block connector (up to +4dBu/600Ω) |
| INPUT SENSITIVITY | Full power @1.5V (+5dBV) |
| Amplifier | Class: D Output Power: 1 x 50W @ 70V or 100V Maximum Voltage Gain: 37dB BTL Dynamic Range: >120dB Frequency Response: Speaker output 50Hz to 20kHz @ +/−3dB; Line level output 20Hz to 20kHz @ +/−0.3dB S/N Ratio: 90dB, 20 Hz − 20 kHz |
| Power |
Consumption: 48V DC, 1.2A Source: 48V DC, 1.36A |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F) |
