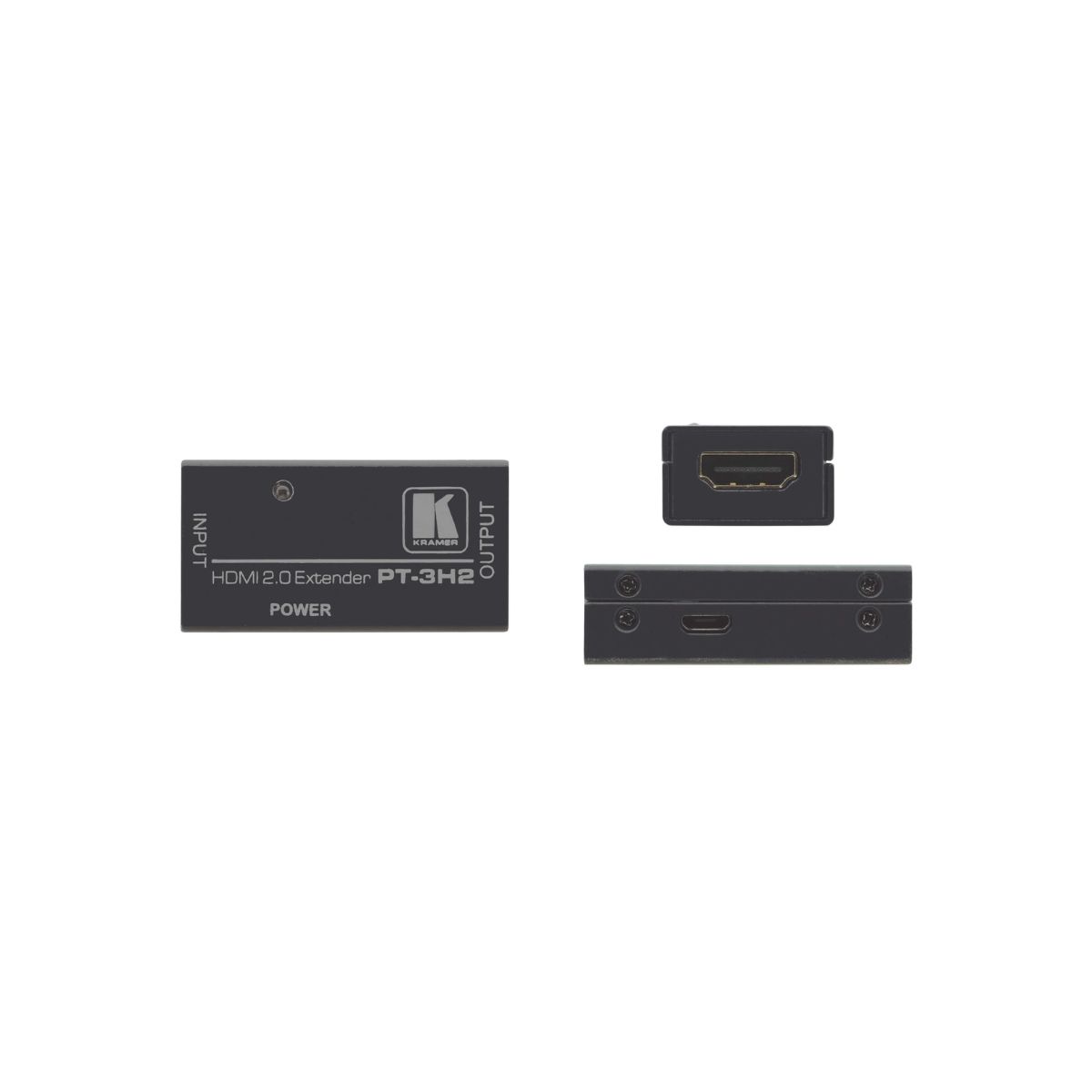

PT-3H2

PT−3H2 is a 4K HDR HDMI extender that extends the HDMI cable distance between the HDMI player and the HDMI display by reclocking and equalizing the HDMI signal. Placing PT−3H2 in the transmission path removes dropout and digital noise (sparkles) in your picture that may result from using long HDMI cables.

Contact to Seller
  •  Max. Resolution — 4K@60Hz (4:4:4).
  •  HDTV Compatible.
  •  Content Protection — Supports HDCP 2.2.
  •  HDMI Support — HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby Atmos, DTS–HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0.

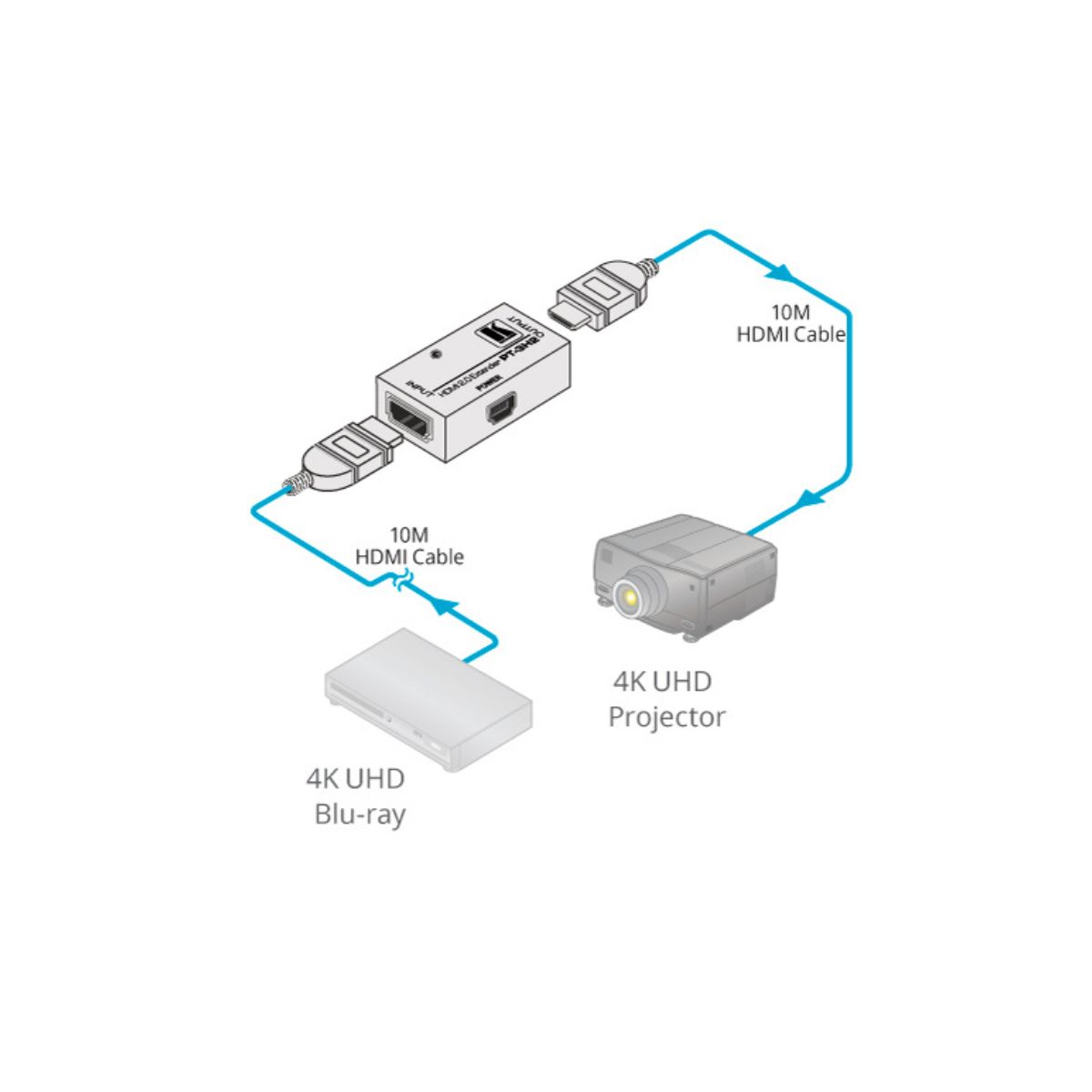

  •  Range — 10m to input, 10m from output, total 20m (65ft) at 4K60 (4:4:4); 25m to input, 15m from output, total 40m (130ft) at 4K60 (4:2:0); 30m to input, 15m from output, total 45m (150ft) at 1080p60.

INPUT/OUTPUT

  • HDMI connectors

MAX. DATA RATE

  • 18Gbps (6Gbps per graphic channel)

MAX. RESOLUTION

  • Up to 4K@60Hz (4:4:4)

MAX. RANGE

  • 4K@60 4:4:4 — 20m (115ft); 10m to PT–3H2, 10m to display
  • 4K@60 4:2:0 / 4K@30 — 40m (130ft); 25m to PT–3H2, 15m to display
  • 1080p@60 — 45m (150ft): 30m to PT–3H2, 15m to display

STANDARDS COMPLIANCE

  • HDR10, HDCP 2.2

HDMI Support

  • Supports HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby Atmos, DTS–HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0
