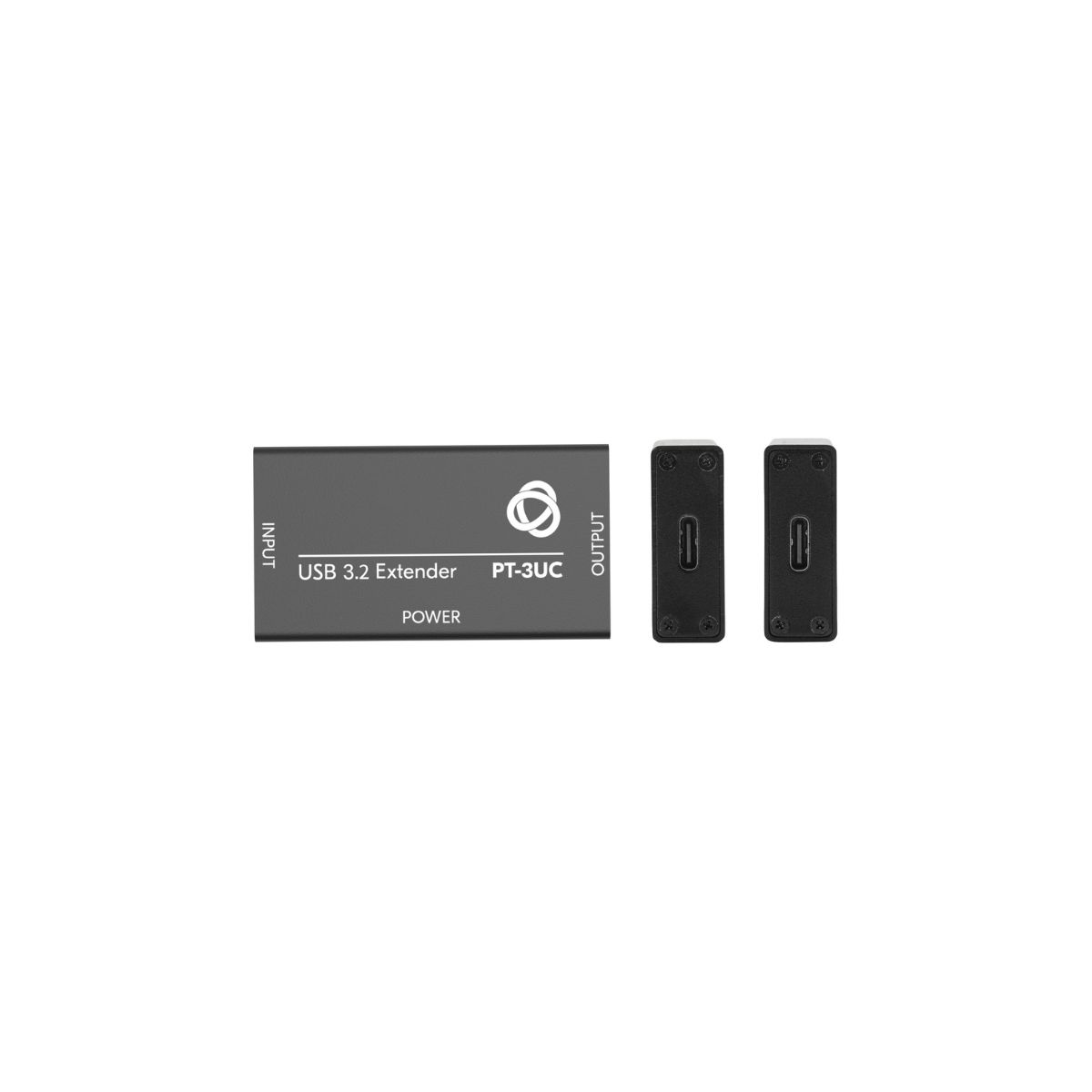

PT-3UC

PT−3UC is an innovative active USB 3.2 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT−3U in the transmission path removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.

Contact to Seller
  • True Plug & Play — No additional driver program is needed.
  •  USB 3.1 Super Speed (10Gbps) Standard — Compliant with USB 3.2.
  •  Video ALT mode
  •  Backwards Compatible — USB 3.0, 2.0, 1.1
  •  External power supply via a micro–USB connector

Inputs
  • USB 3.2 Gen 2: On a USB type–C female connector

Outputs
  • USB 3.2 Gen 2: On a USB type–C female connector

General
  • Max. Data Rate: 10Gbps
  • Max.: Video resolution 4K@60
  • Max output power: 2.5A (12.5W)
  • Max. Range: 10Gbps — 4m, 2m to PT–3UC, 2m to Device
  • Backwards Compatibility: USB 3.0, 2.0, 1.1

Power
  • Self Consumption: ≤1 W
  • External power supply: Via a micro–USB connector

Environmental Conditions
  • Operating Temperature: 0 ℃ to 45℃
  • Operating Humidity: 10% to 85 % RH
  • Storage Temperature: –10℃ to +70℃
  • Storage Humidity: 5% to 90 % RH
