PT-5R/T

The PT−5T and PT−5R are twisted pair transmitters and receivers for infrared signals. The units control up to five devices via their own remote control IR transmitters at distances of up to 250m (820ft) over twisted pair cable.

Contact to Seller

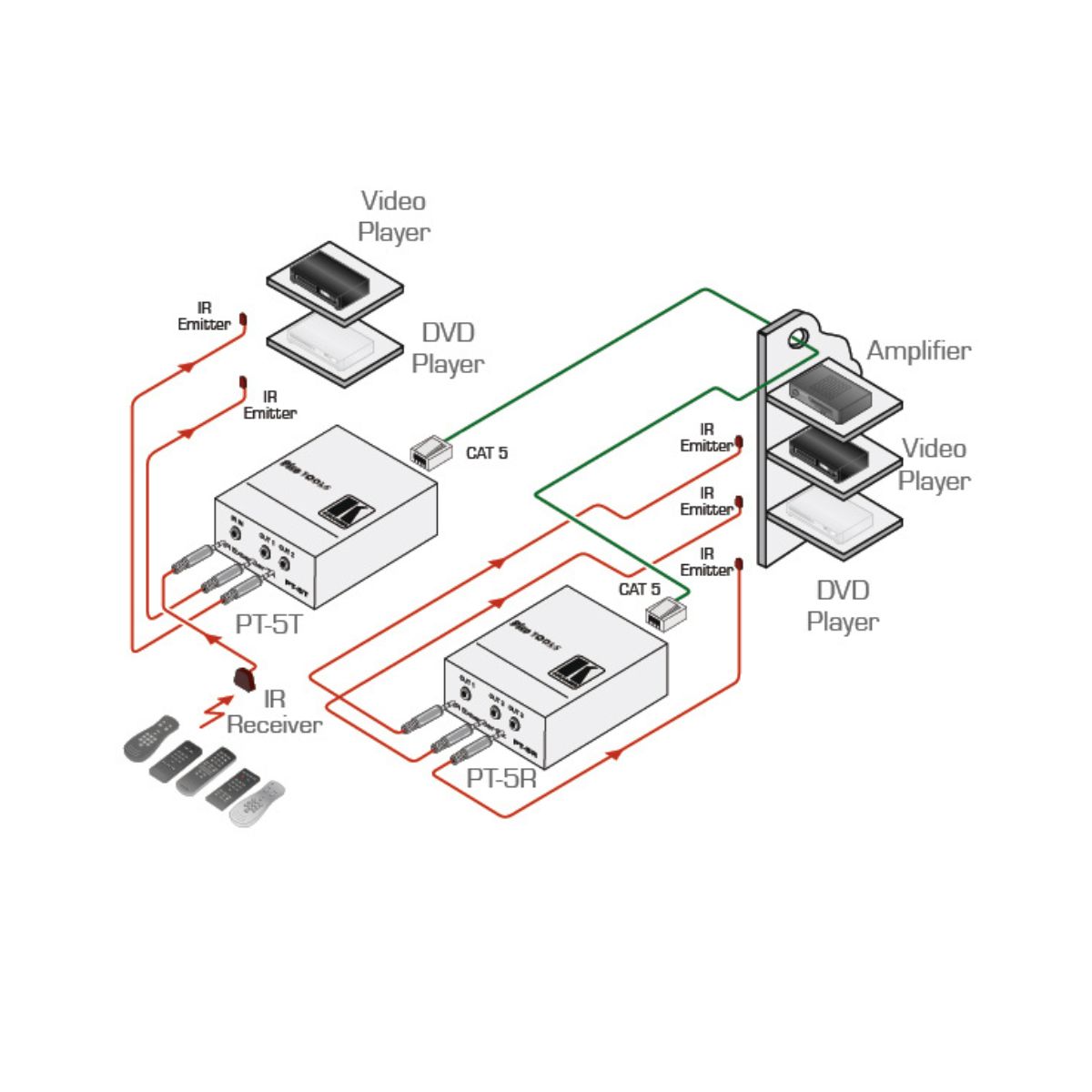

  • Multi–Unit IR Control — Controls 2 local and 3 remote devices (DVDs, amplifiers, air conditioners, etc.) over their IR ports.
  •  Range — Up to 250m (820ft) via twisted pair.
  •  Flexible Operation — Operates devices that are stacked away in closets, cabinets, and other rooms.

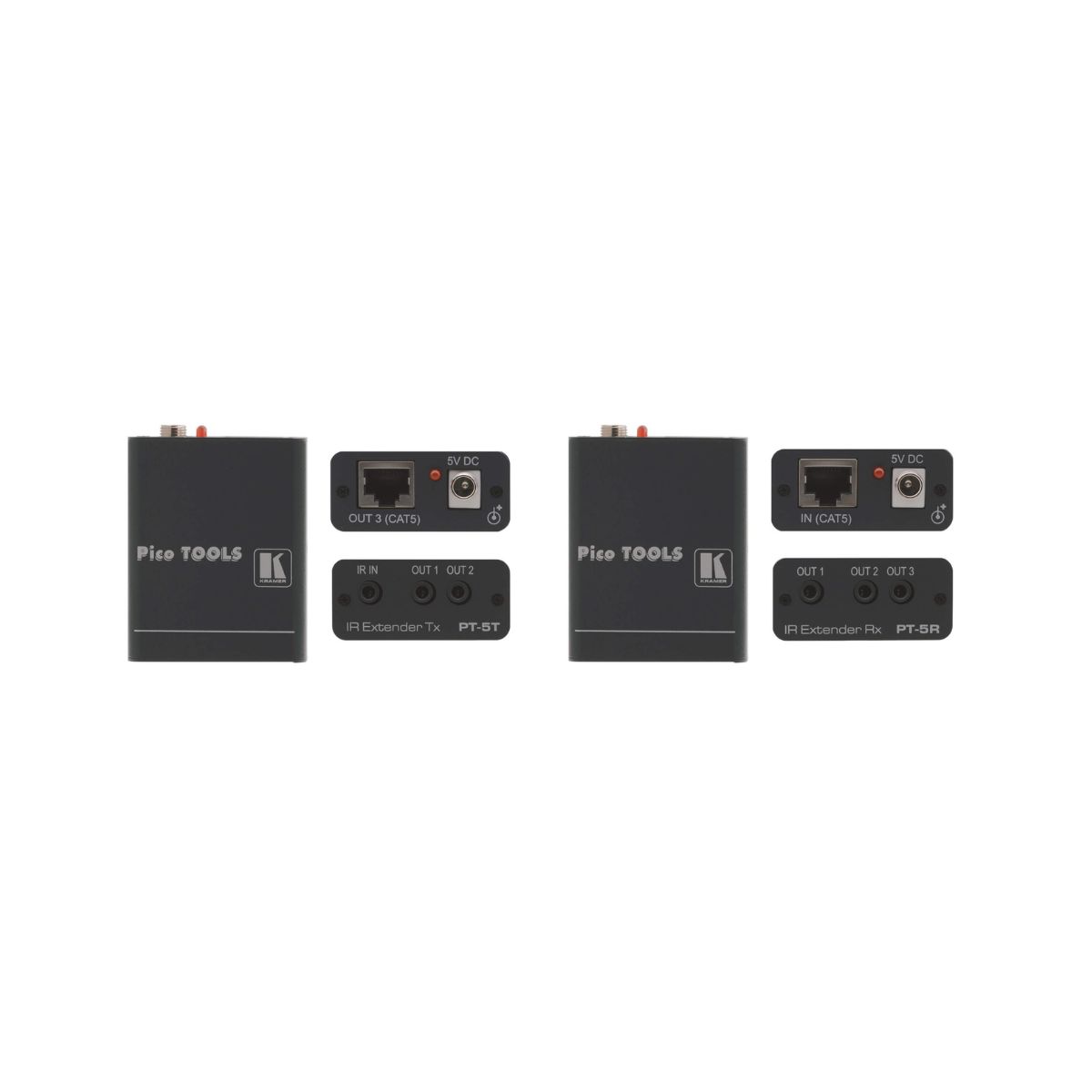

  •  PT–5T — Input: 1 IR receiver on a 3.5mm mini jack; outputs: 2 IR emitters on 3.5mm mini jacks; 1 twisted pair on an RJ–45 connector
Download Product catalog

INPUTS
  • 1 IR receiver on a 3.5mm mini jack (PT–5T)
  • 1 twisted pair on an RJ–45 connector (PT–5R)

OUTPUTS
  • 2 IR emitters on 3.5mm mini jacks, 1 twisted pair on an RJ–45 connector (PT–5T)
  • 3 IR emitters on 3.5mm mini jacks (PT–5R)

MAX. OPERATING DISTANCE
  • 250m (820ft)

CARRIER FREQUENCY
  • 36–40kHz

POWER CONSUMPTION
  • 5V DC: 7mA (PT–5T), 6mA (PT–5R)

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)
