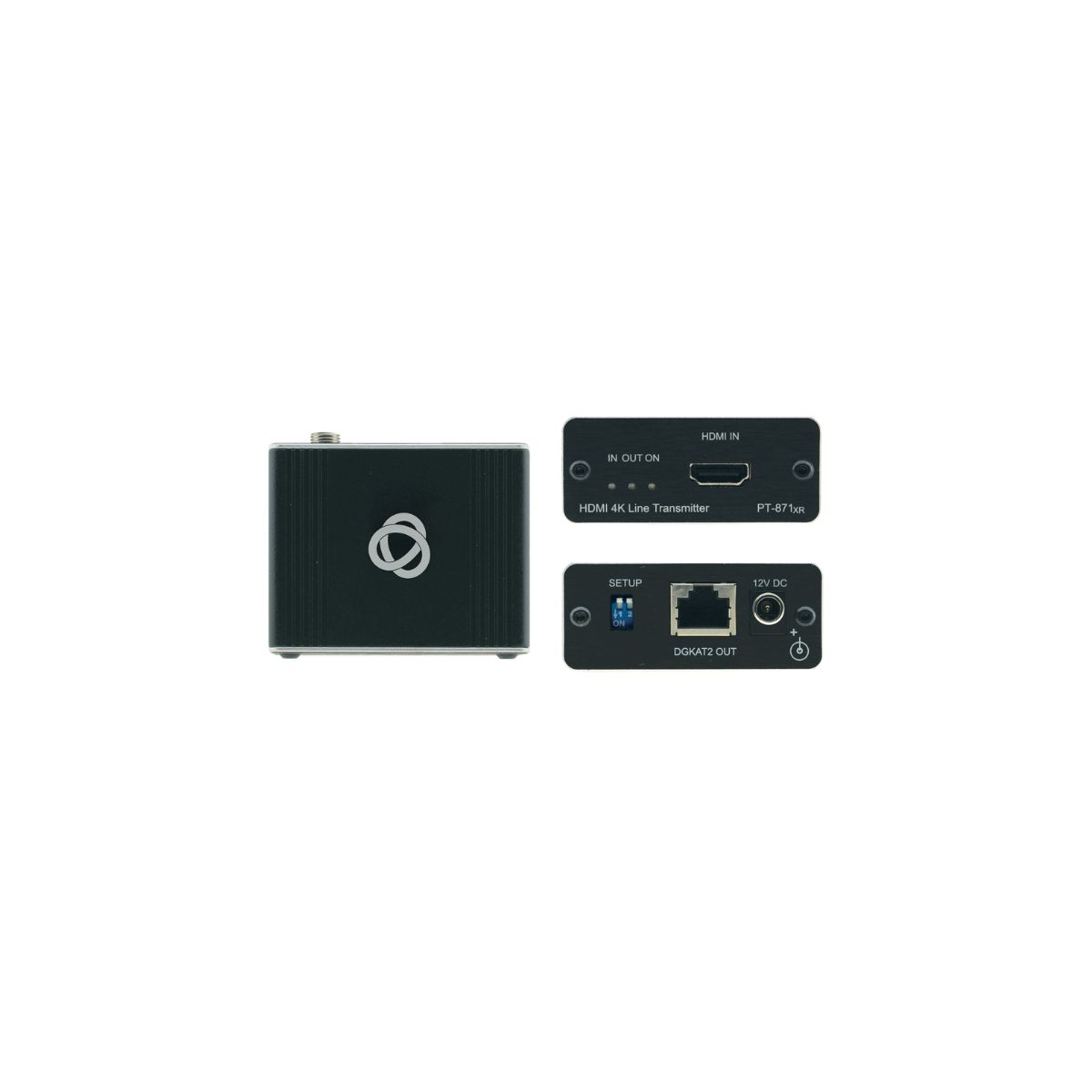

PT-871/2xr-KIT

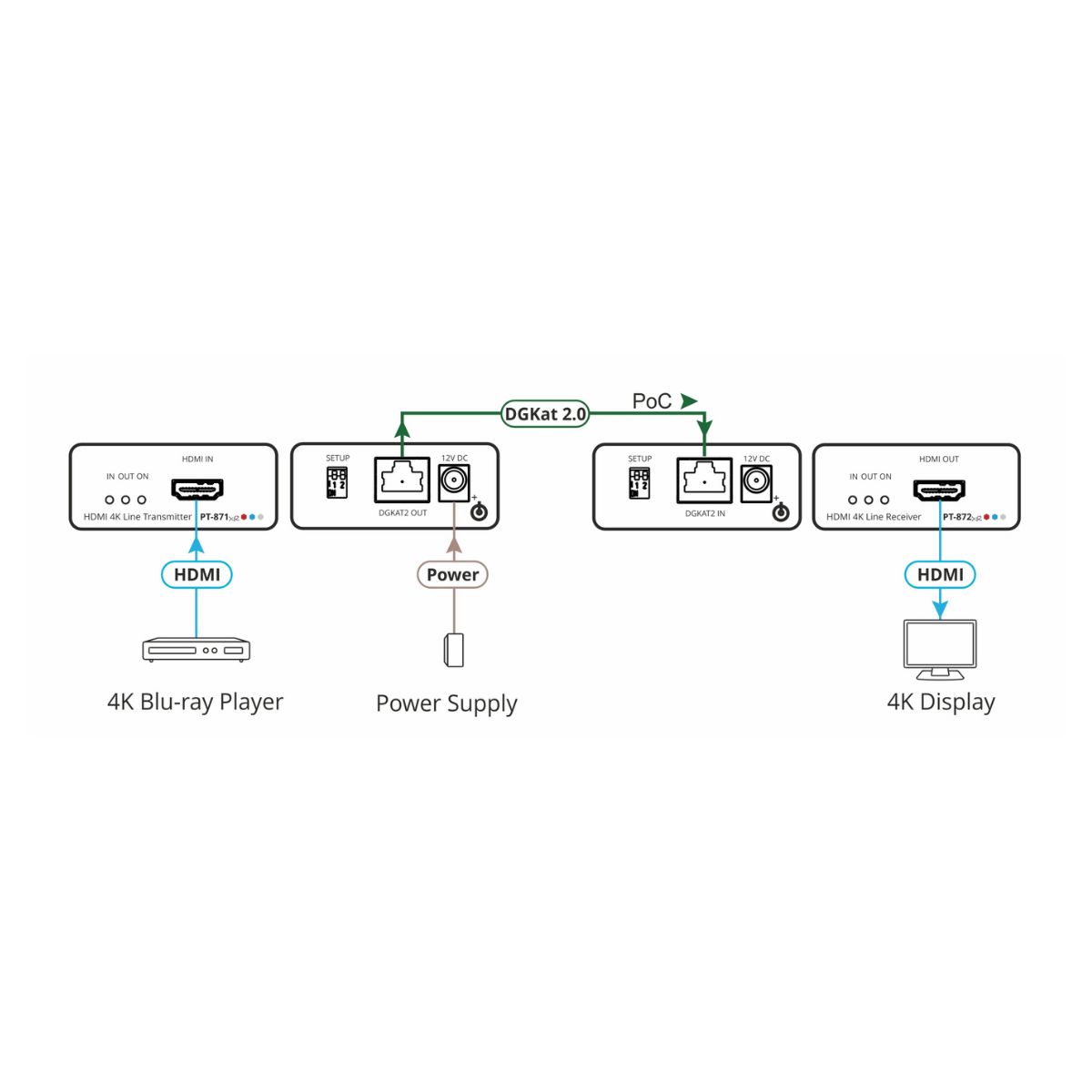

PT−871/2xr−KIT is a high−performance, long−reach DGKat™ 2.0 extender kit for 4K@60Hz (4:4:4) HDR HDMI and HDCP 2.2 signals and 2−way powering over twisted pair. The PT−871xr transmitter converts

Contact to Seller
  • Compact, low–heat DGKat™ 2.0 extender
  • Up to 60m (200ft) at 4K@60Hz (4:4:4)
  • Up to 70m (230ft) at 4K@30Hz (4:4:4)
  • HDR, HDCP 2.2 compliance
  • Two–way powering

Inputs
  • 1 HDMI: On an HDMI female connector (PT–871xr)
  • 1 DGKat: On an RJ–45 female connector for extension line (PT–872xr)

Outputs
  • 1 DGKat: On an RJ–45 female connector for extension line (PT–871xr)
  • 1 HDMI: On an HDMI female connector (PT–872xr)

Video
  • Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
  • Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp
  • Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp
  • Standards Compliance: HDR10, HDCP 2.2

High Compression Reach Extension
  • Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
  • Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)

Standard Compression Reach Extension
  • Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

Extension Line
  • Signal Compression: Standard or high compression level applied to >1080p signals
  • Compliance: DGKat 2.0
