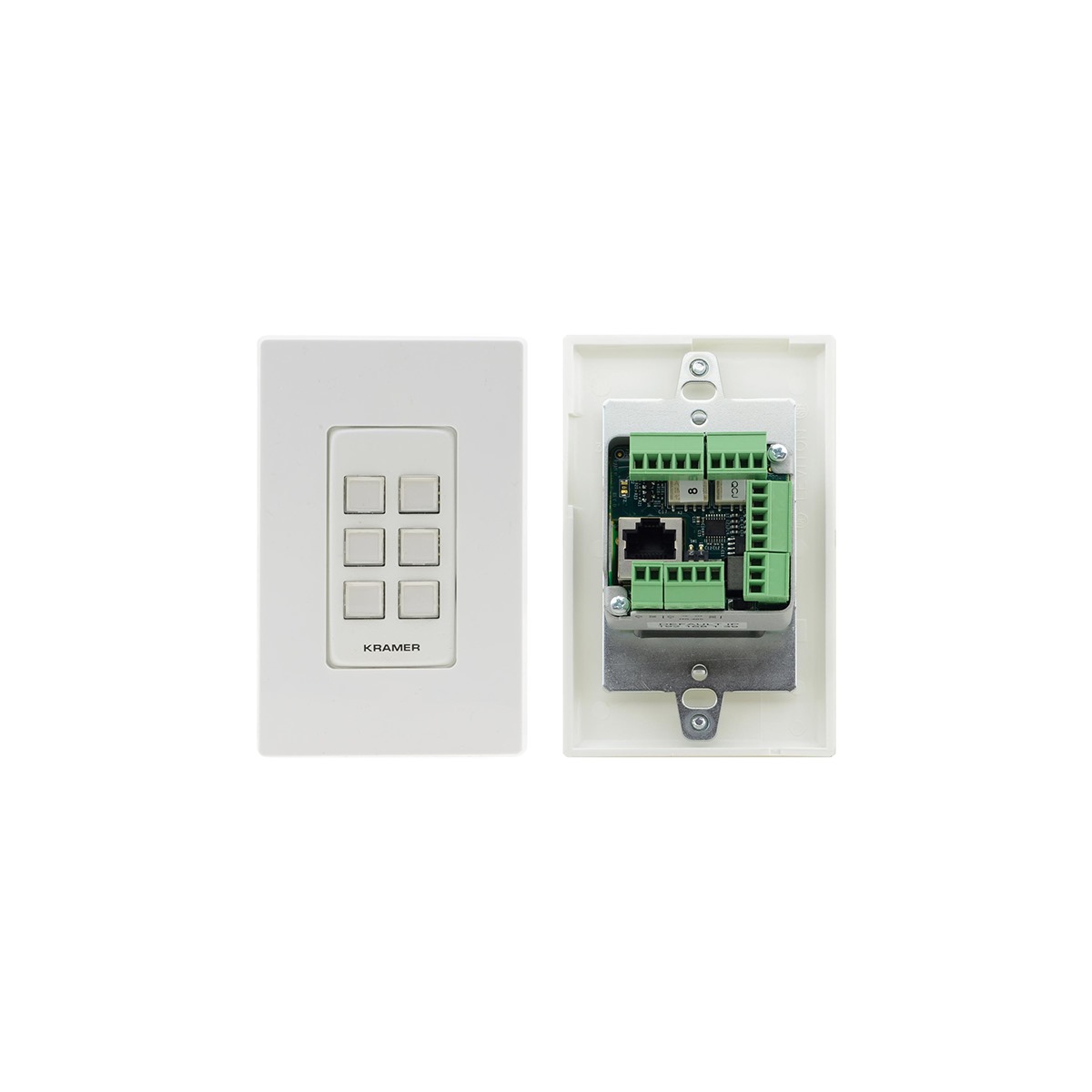

RC-206 is a compact 6-button control keypad compatible with standard US, European, and UK 1-gang wall boxes. It works with Kramer Control or as a standalone room controller using K-Config to control AV systems, screens, lighting, and shades. Multiple keypads can connect via a single K-NET cable for power and communication.
- 6 RGB–color, backlit buttons
- Modular frames compatibility
- Connectable to auxiliary KNET™ keypads
- Supported by all Kramer control platforms
| Inputs | 1 IR Sensor: For IR learning |
| Outputs | 2 IR: On 2−pin terminal block connectors |
| Ports |
1 Ethernet: On an RJ−45 female connector for device configuration, control, and firmware upgrade 2 RS-232: On 3−pin terminal block connectors 1 RS-485: On a 3−pin terminal block connector 1 K-NET: On a 4−pin terminal block connector 2 Relays on 2-pin terminal block connectors (30V DC, 1A max) |
| DEFAULT IP SETTINGS |
DHCP Enabled |
| Power | Source: 12V DC 2A power supply |
| Environmental Conditions |
Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: −40° to +70°C (−40° to 158°F) |
| REGULATORY | Safety: CE, UL |
| Enclosure |
Size: 1 Gang wall plate Cooling: Convection ventilation |
| Accessories | Included: 12V DC power adapter, special tweezers for removing button caps, standard button label set (8.8mm x 8.8mm) |
| Product Dimensions | US: 6.98cm x 4.70cm x 11.43cm (2.75" x 1.85" x 4.50" ) W, D, H |
| Product Weight | US: 0.1kg (0.2lbs) approx |
