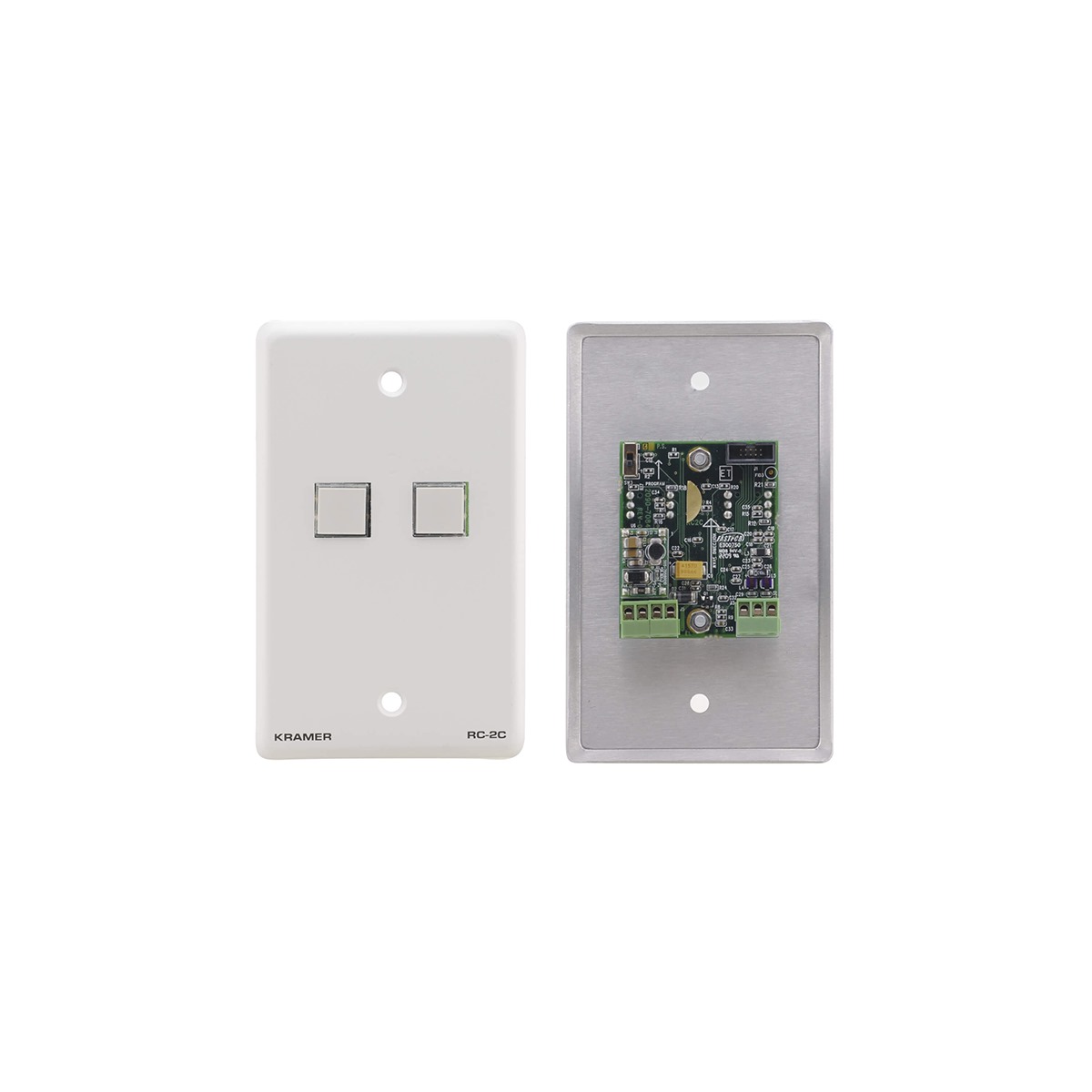

RC-2C 2–button Control Keypad

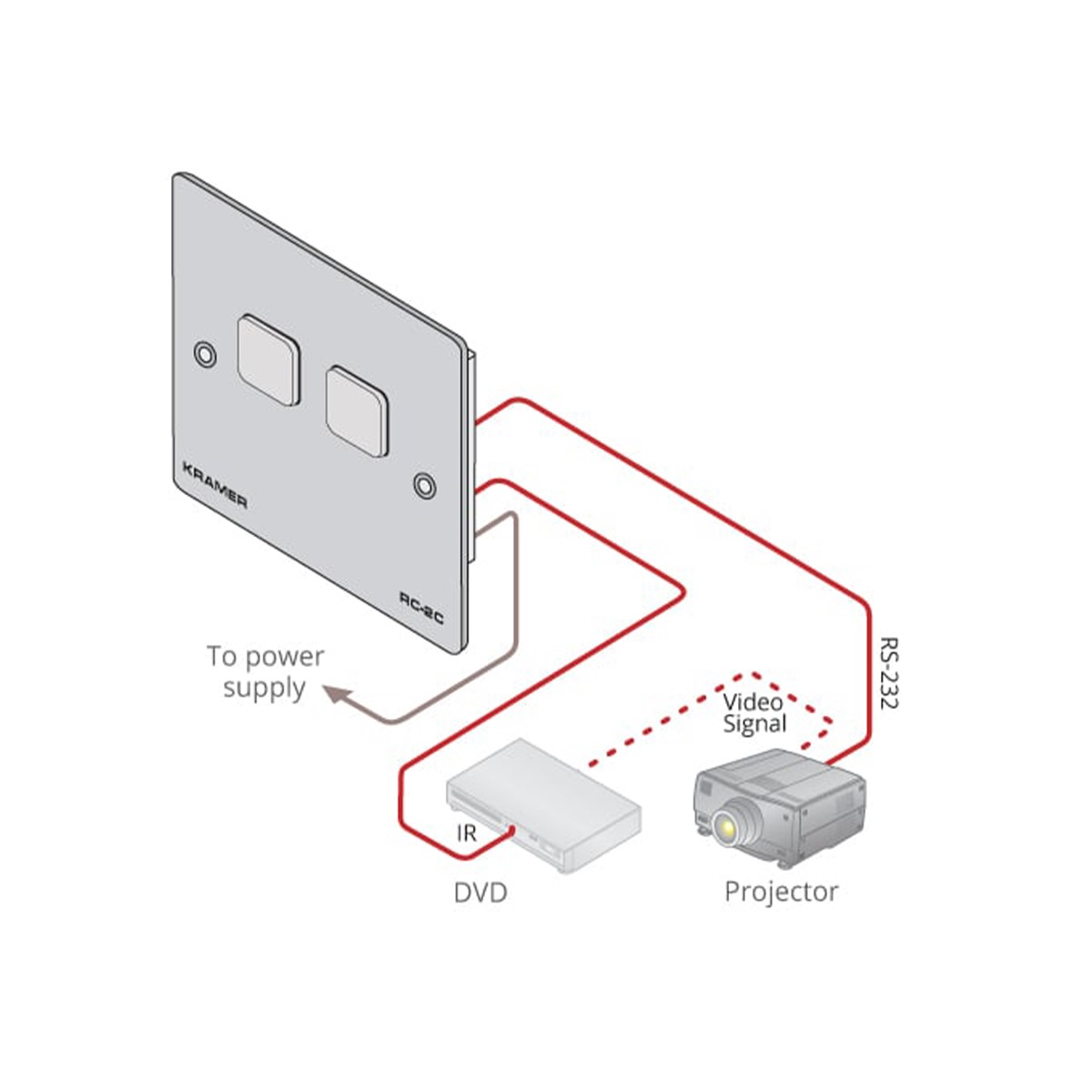

The RC-2C is a compact room controller designed for simple and convenient control of small spaces. It supports serial and IR-controlled devices, such as projectors and displays.

Contact to Seller
  • 2 tri–color, backlit buttons
  • Custom labeled, removable button caps
  • 1 bidirectional RS–232 port
  • 1 IR emit port
  • Mounts in standard 1-gang US, EU, or UK wall junction boxes
  • Supported by: K–Config Only
Download Product catalog
PORTS 1 RS−232 on a terminal block connector; 1 IR OUT on a terminal block connector
POWER CONSUMPTION 12V DC, 40mA
INCLUDED ACCESSORIES Power supply, label set, screwdriver
Product Dimensions

EU: 8.00cm x 1.30cm x 8.00cm (3.15" x 0.51" x 3.15" ) W, D, H

US: 6.90cm x 1.30cm x 11.43cm (2.72" x 0.51" x 4.50" ) W, D, H

UK: 8.60cm x 1.30cm x 8.60cm (3.39" x 0.51" x 3.39" ) W, D, H
Product Weight EU: 0.1kg (0.1lbs) approx. US: 0.1kg (0.1lbs) approx. UK: 0.1kg (0.1lbs) approx
Shipping Dimensions EU: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
