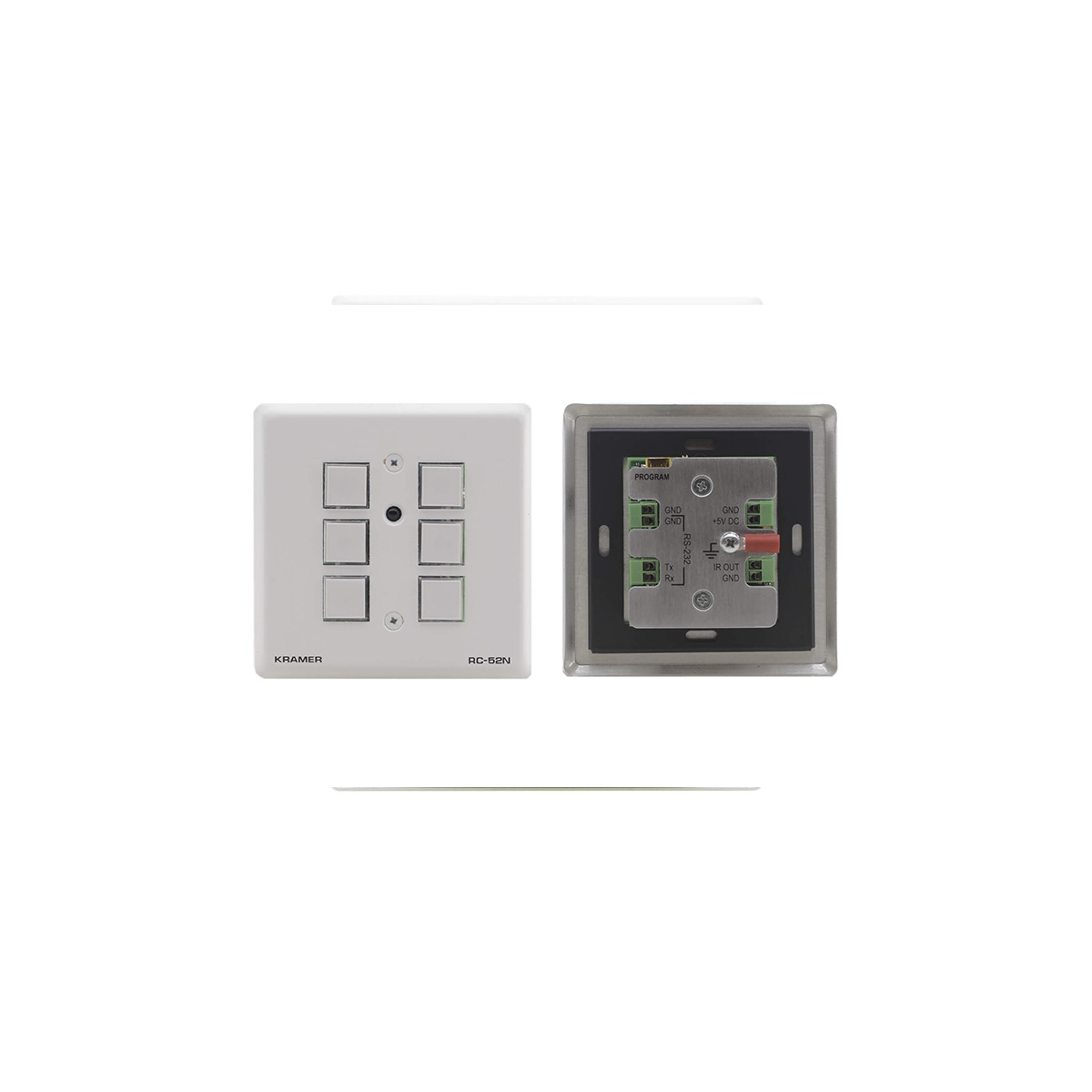

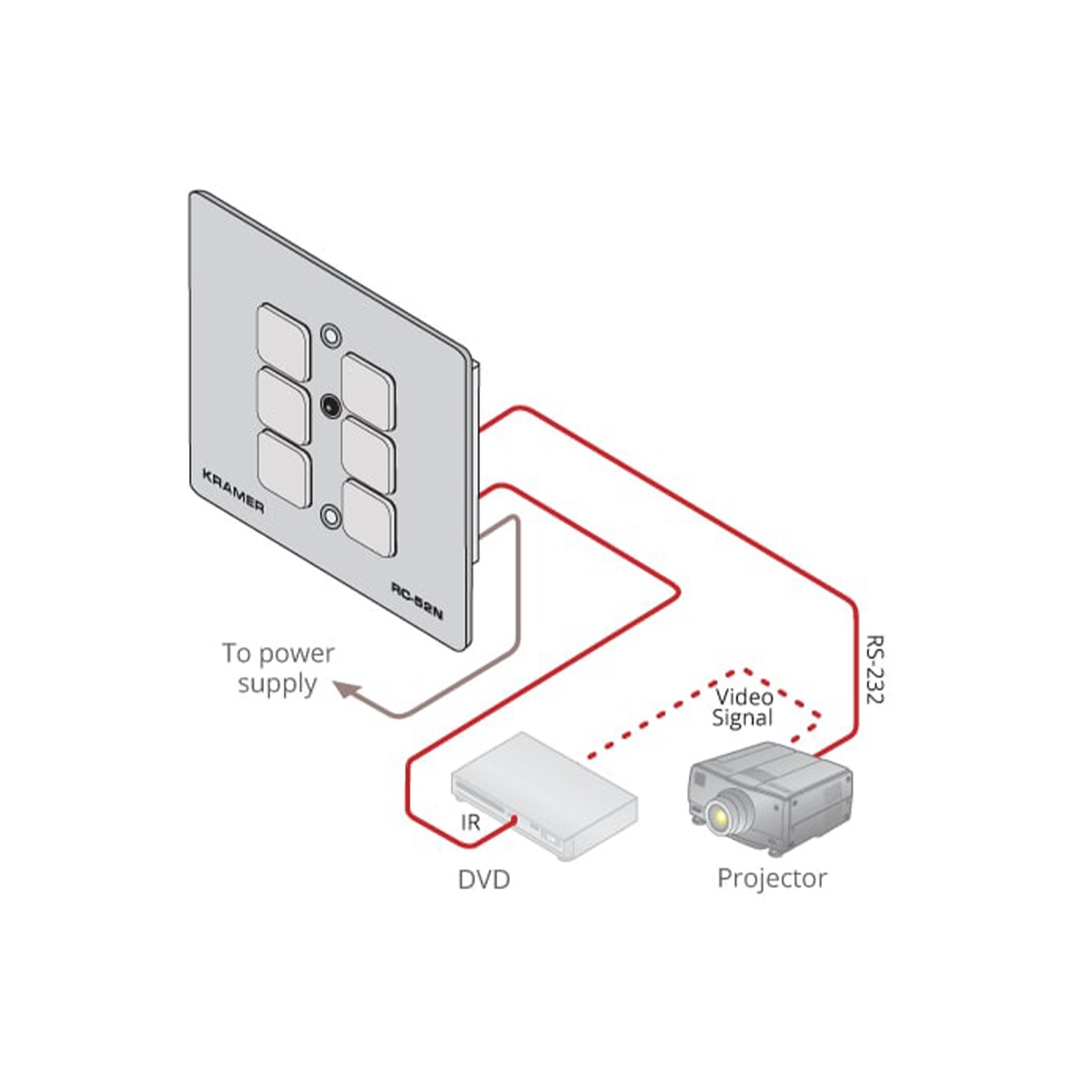

The RC-52N is a compact room controller designed for simple and convenient control of small spaces. It supports serial and IR-controlled devices, such as projectors and displays.
- 6 yellow–colored, backlit buttons
- Custom-labeled, removable button caps
- 1 bidirectional RS–232 port
- 1 IR emitter port
- 1 IR sensor for learning
- Mounts in standard 1-gang US, EU, or UK wall junction boxes
- Supported by: K–Config Only
| PORTS | 1 RS−232 on a terminal block connector, 1 IR OUT on a terminal block connector, 1 IR sensor (for learning), 1 mini USB port for configuration upload |
| POWER CONSUMPTION | 5V DC, 150mA |
| INCLUDED ACCESSORIES | Power supply, label set, screwdriver |
| Product Dimensions |
US: 6.90cm x 2.00cm x 11.43cm (2.72" x 0.79" x 4.50" ) W, D, H 8.60cm x 2.30cm x 8.60cm (3.39" x 0.91" x 3.39" ) W, D, H EU: 8.00cm x 2.30cm x 8.00cm (3.15" x 0.91" x 3.15" ) W, D, H UK: 8.60cm x 2.30cm x 8.60cm (3.39" x 0.91" x 3.39" ) W, D, H |
| Product Weight |
US: 0.1kg (0.2lbs) approx 0.1kg (0.2lbs) approx EU: 0.1kg (0.2lbs) approx UK: 0.1kg (0.2lbs) approx |
| Shipping Dimensions |
US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H EU: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H |
| Shipping Weight |
US: 0.5kg (1.1lbs) approx 0.5kg (1.1lbs) approx EU: 0.5kg (1.1lbs) approx UK: 0.5kg (1.1lbs) approx |
