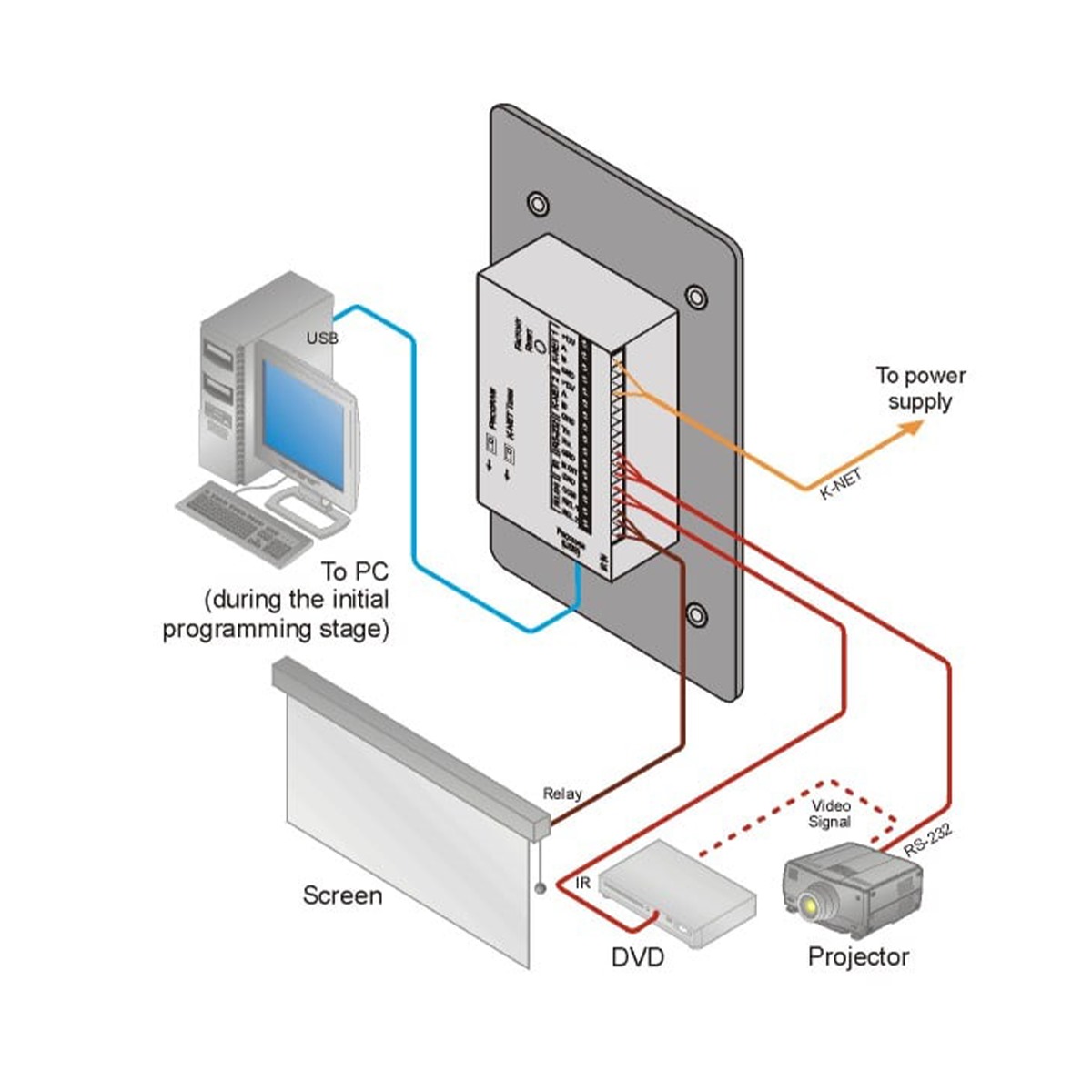

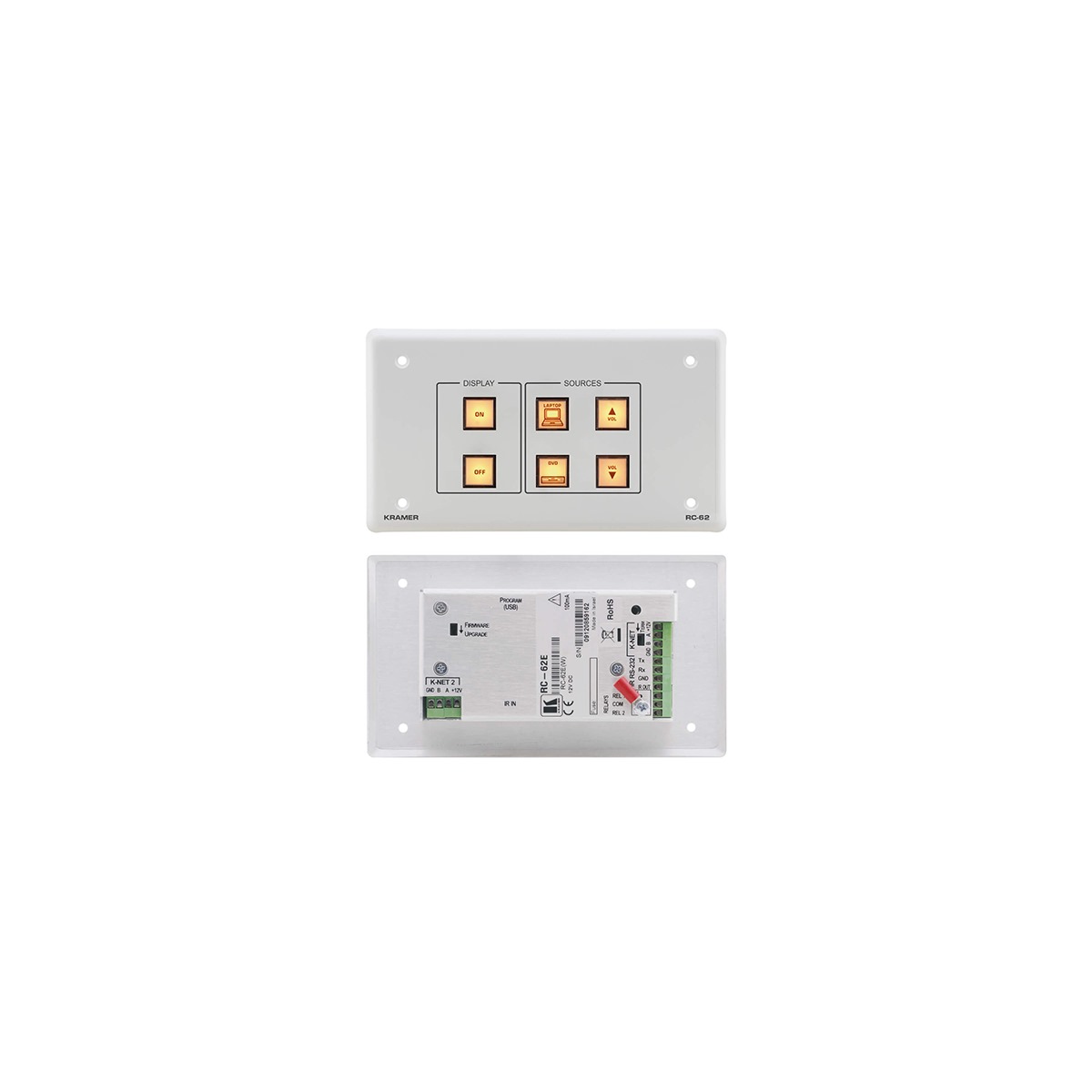

The RC-62 is a 6-button control keypad that connects via KNET™ to a master room controller and auxiliary keypads for remote control. It can operate as a standalone room controller or as part of a SummitView™ system. It is ideal for classrooms and meeting rooms, providing convenient control of multimedia devices, screens, and shades.
- 6 RGB–color, backlit buttons
- Custom-labeled, removable button caps
- SummitView™ compatible
- 2 KNET™ ports
- 1 Bidirectional RS–232 port
- 1 IR emitter port
- 2 Relay ports
- 1 IR sensor for learning
- Mounts in standard 2-gang EU, UK, or 1-gang US wall junction boxes
- Supported by: K–Config Only
| PORTS | 1 RS−232 on terminal block connectors; 2 K−NET on terminal block connectors; 1 USB port |
| OUTPUTS | 2 relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non−inductive load); 1 IR emitter on terminal block connectors |
| POWER CONSUMPTION | 12V DC, 100mA |
| ADAPTER | SummitView™ kits: 12V, 5A; independent: 12V/500mA |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | −40° to +70°C (−40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non-condensing |
| INCLUDED ACCESSORIES | Label set, screwdriver |
| Product Dimensions |
US: 6.90cm x 3.40cm x 11.43cm (2.72" x 1.34" x 4.50" ) W, D, H UK: 15.10cm x 2.60cm x 8.60cm (5.94" x 1.02" x 3.39" ) W, D, H EU: 15.10cm x 2.60cm x 8.00cm (5.94" x 1.02" x 3.15" ) W, D, H |
| Product Weight |
US: 0.0kg (0.0lbs) approx UK: 0.6kg (1.2lbs) approx EU: 0.1kg (0.3lbs) approx |
| Shipping Dimensions |
US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H EU: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H |
| Shipping Weight |
US: 0.4kg (0.9lbs) approx UK: 0.1kg (0.3lbs) approx EU: 0.6kg (1.2lbs) approx |
