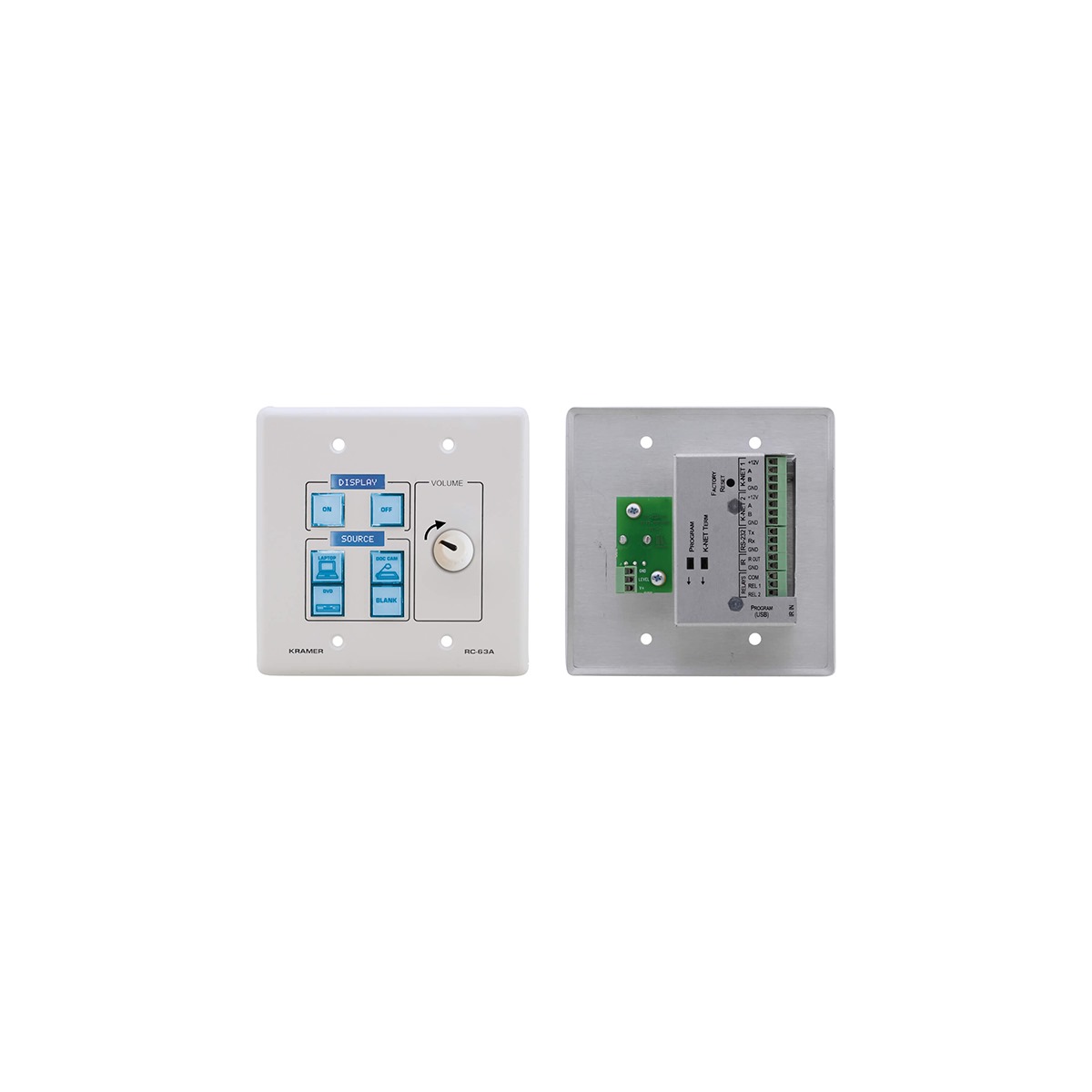

RC-63A 6–button KNET™ Control Keypad

The RC-63A is a 6-button control keypad that connects via KNET™ to a master room controller and auxiliary keypads for remote control. It can operate as a standalone room controller or as part of a SummitView™ system. It is ideal for classrooms and meeting rooms, providing convenient control of multimedia devices, screens, and shades.

Contact to Seller
  • 6 RGB–color, backlit buttons
  • Custom-labeled, removable button caps
  • Analog knob for volume control
  • SummitView™ compatible
  • 2 KNET™ ports
  • 1 bidirectional RS–232 port
  • 1 IR emitter port
  • 2 relay ports
  • 1 IR sensor for learning
Download Product catalog
PORTS 1 RS−232 on terminal block connectors, 2 K-NET on terminal block connectors, 1 Mini USB for programming
OUTPUT 2 relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non-inductive load), 1 IR emitter on terminal block connectors
POWER CONSUMPTION 12V DC, 100mA
FUSE 500mA, FSMD 2920
ADAPTER SummitView™ kits: 12V, 5A; independent: 12V, 500mA
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE −40° to +70°C (−40° to 158°F)
HUMIDITY 10% to 90%, RHL non-condensing
