RC-63DLN 6–button KNET™ Control Keypad

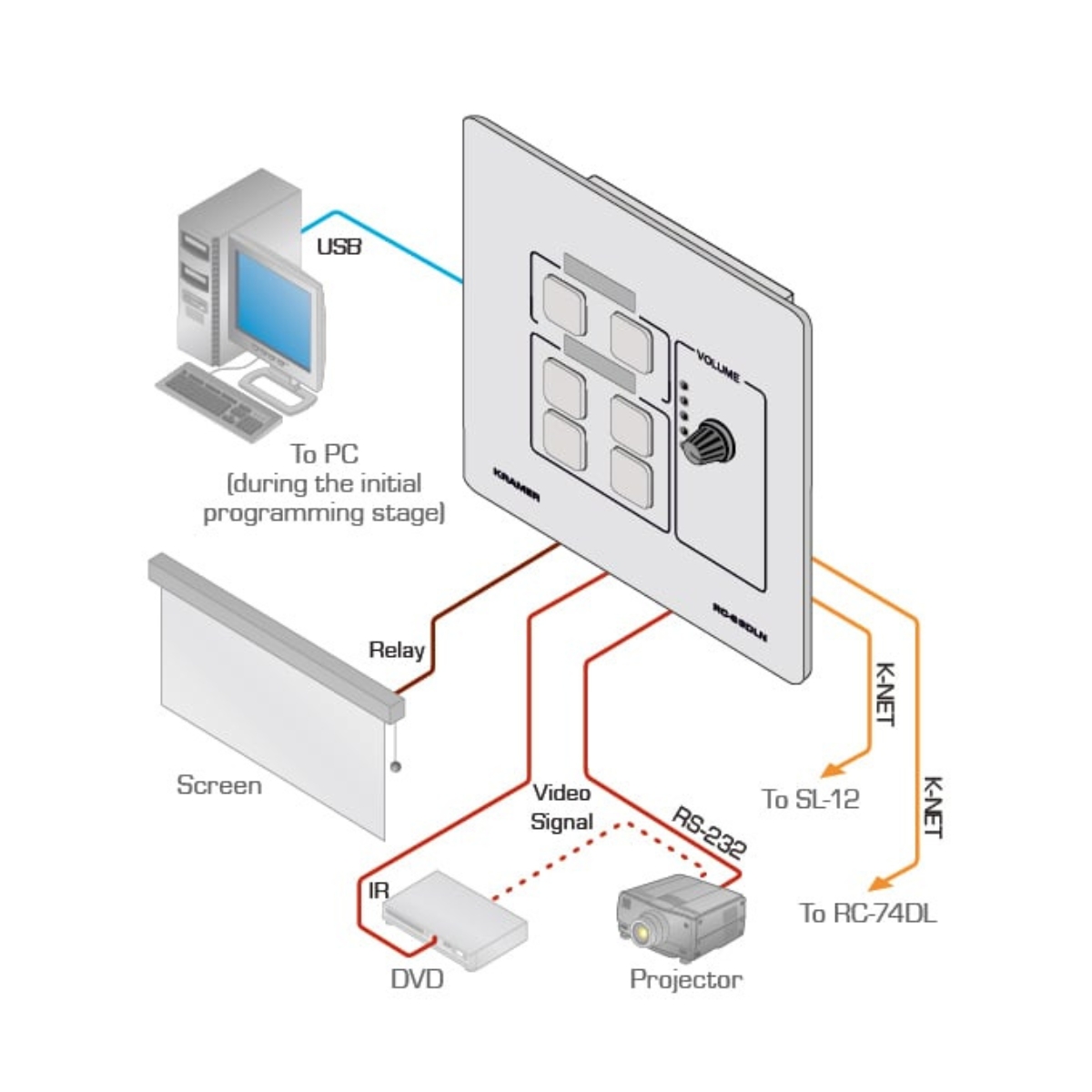

The RC-63DLN is a 6-button control keypad with a knob and LCD displays. It connects via KNET™ to master room controllers and auxiliary keypads for remote control. It can operate as a standalone room controller or as part of a multi-unit KNET™ system. It is ideal for classrooms and meeting rooms, providing convenient control of multimedia devices, screens, and shades.
- 6 RGB–color, backlit buttons
- Custom-labeled, removable button caps
- Digital knob for volume control
- 2 8–characters program–configurable LCD displays
- 2 KNET™ ports
- 1 Bidirectional RS–232 port
| PORTS | 1 RS−232 on terminal block connectors, 2 K-NET on terminal block connectors, 1 mini USB for programming |
| OUTPUT | 2 Relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non-inductive load), 1 IR emitter on terminal block connectors |
| POWER CONSUMPTION | 12V DC, 100mA |
| FUSE | 500mA, FSMD 2920 |
| ADAPTER: | 12V, 500mA |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | −40° to +70°C (−40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non-condensing |
| INCLUDED ACCESSORIES | Power supply, label set, screwdriver |
| Product Dimensions | US: 11.43cm x 2.50cm x 11.43cm (4.50" x 0.98" x 4.50" ) W, D, H UK: 15.10cm x 2.30cm x 8.60cm (5.94" x 0.91" x 3.39" ) W, D, H EU: 15.10cm x 2.30cm x 8.00cm (5.94" x 0.91" x 3.15" ) W, D, H |
| Product Weight | US: 0.1kg (0.2lbs) approx UK: 0.1kg (0.2lbs) approx EU: 0.1kg (0.2lbs) approx |
| Shipping Dimensions |
US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H EU: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H |
| Shipping Weight |
US: 0.4kg (0.9lbs) approx UK: 0.4kg (0.9lbs) approx EU: 0.4kg (0.9lbs) approx |
