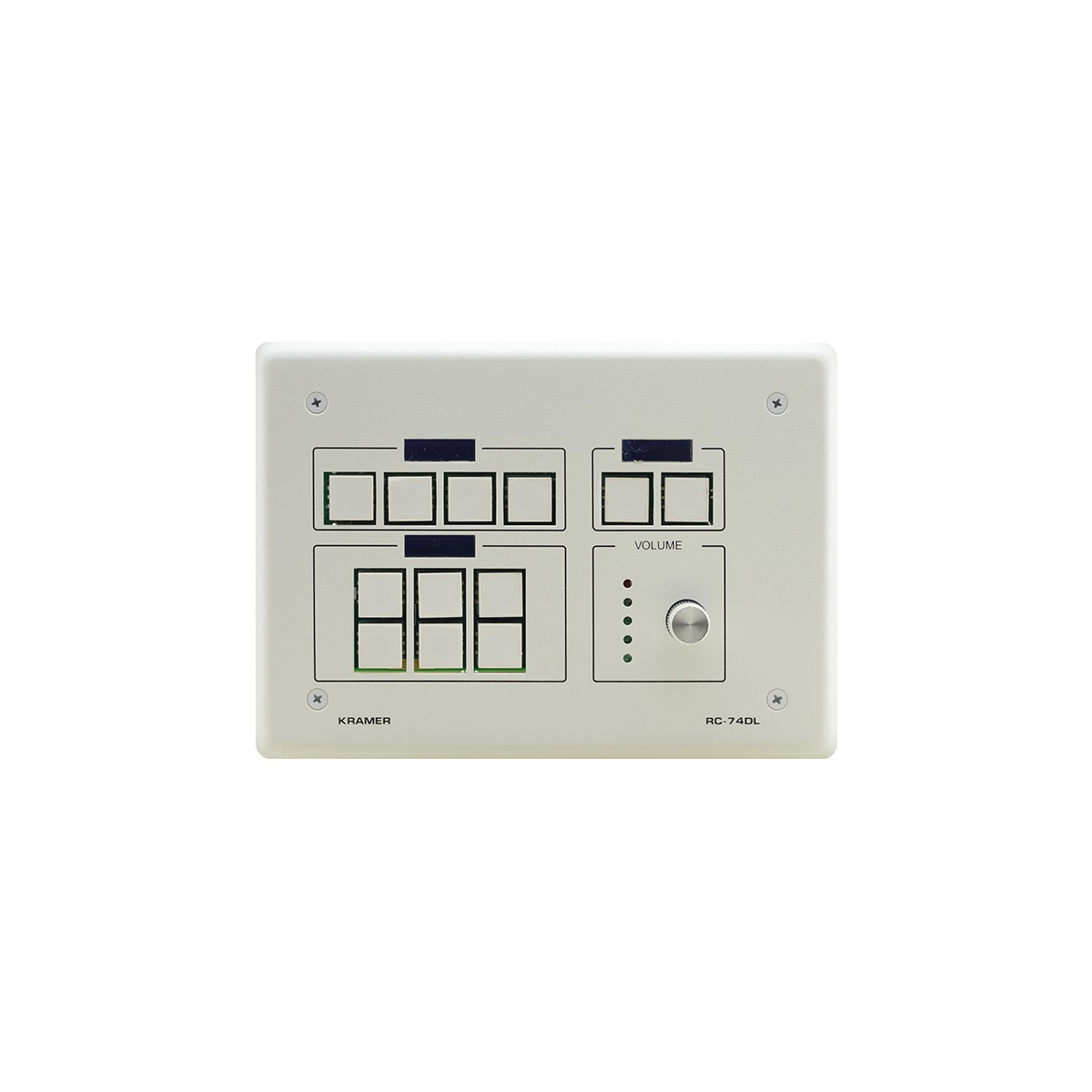

RC-74DL 12–button Ethernet and KNET
The RC-74DL is a 12-button control keypad with a knob and LCD displays. It supports Ethernet connectivity for Kramer Site-CTRL™ remote AV control and monitoring, as well as KNET™ connectivity for master room controllers and auxiliary keypads. It can operate as a standalone room controller or as part of a multi-unit KNET™ or Ethernet system. It is ideal for auditoriums and meeting rooms, providing convenient control of multimedia systems, screens, lighting, and shades.
- 12 RGB–color, backlit buttons
- Custom labeled, removable button caps
- Digital knob for volume control
- 3 8–characters program–configurable LCD displays
- 1 Ethernet port
- 2 KNET™ ports
- 3 Bidirectional RS–232 ports
- 2 IR emitter port
| PORTS | 1 RS−485, 3 RS−232, 2 GPI/O, 2 K−NET on terminal block connectors, 1 Ethernet on an RJ−45 connector, 1 infrared sensor, 1 mini USB for programming |
| OUTPUTS | 2 IR emitters, 4 relays (36V AC or DC, 2A, 60V AC maximum on non-inductive load), on terminal block connectors |
| DEFAULT IP SETTINGS: | IP number 192.168.1.39; Mask – 255.255.0.0; Gateway – 0.0.0.0 |
| POWER CONSUMPTION | 12V DC, 570mA |
| OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F) | OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE: −40° to +70°C (−40° to 158°F) | STORAGE TEMPERATURE: −40° to +70°C (−40° to 158°F) |
| Product Dimensions | US: 16.20cm x 2.30cm x 11.43cm (6.38" x 0.91" x 4.50" ) W, D, H |
| Product Weight | US: 0.6kg (1.3lbs) approx |
| Shipping Dimensions | US: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H |
