The RC-63A is a 6-button control keypad that connects via KNET™ to a master room controller and auxiliary keypads for remote control. It can function as a standalone room controller or as part of a SummitView™ system. It is ideal for classrooms and meeting rooms, offering convenient control of multimedia devices, screens, and shades.
- 2 IR Ports.
- IR Learning Function — Learns commands from IR remotes.

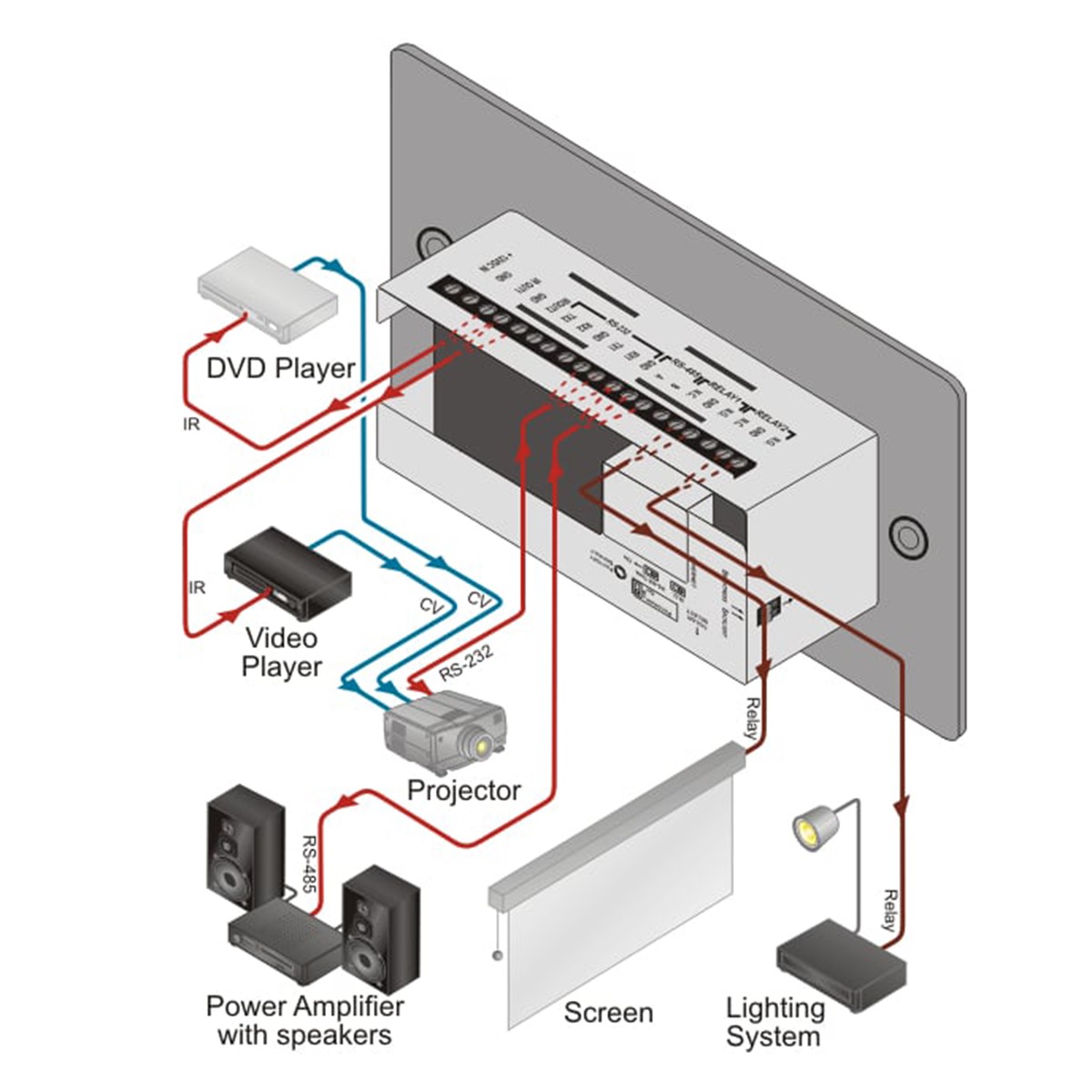

- 2 Relay Contact Closure Ports — Conveniently control other room items related to the AV system, such as raising and lowering drapes, the screen, or the projector.
- 2 Bidirectional RS–232 and 1 RS–485 Ports — Control additional devices via serial control protocols.
- Lock–Out Feature — The RC–8RK/RC–8RKL can be locked and unlocked to prevent tampering.
| PORTS | 1 RS−232 on terminal block connectors, 2 K-NET on terminal block connectors, 1 Mini USB for programming |
| OUTPUT | 2 relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non-inductive load), 1 IR emitter on terminal block connectors |
| POWER CONSUMPTION | 12V DC, 100mA |
| FUSE | 500mA, FSMD 2920 |
| ADAPTER | SummitView™ kits: 12V, 5A; independent: 12V, 500mA |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | −40° to +70°C (−40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non-condensing |
| INCLUDED ACCESSORIES | Power supply, label set, screwdriver |
| Product Dimensions |
UK: 15.10cm x 5.40cm x 8.60cm (5.94" x 2.13" x 3.39" ) W, D, H EU: 5.40cm x 15.10cm x 8.00cm (2.13" x 5.94" x 3.15" ) W, D, H US: 11.43cm x 2.50cm x 11.43cm (4.50" x 0.98" x 4.50" ) W, D, H |
| Product Weight |
UK: 0.0kg (0.0lbs) approx EU: 0.0kg (0.0lbs) approx US: 0.2kg (0.4lbs) approx |
| Shipping Dimensions |
UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H EU: 0.00cm x 0.00cm x 0.00cm (0.00" x 0.00" x 0.00" ) W, D, H US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H |
