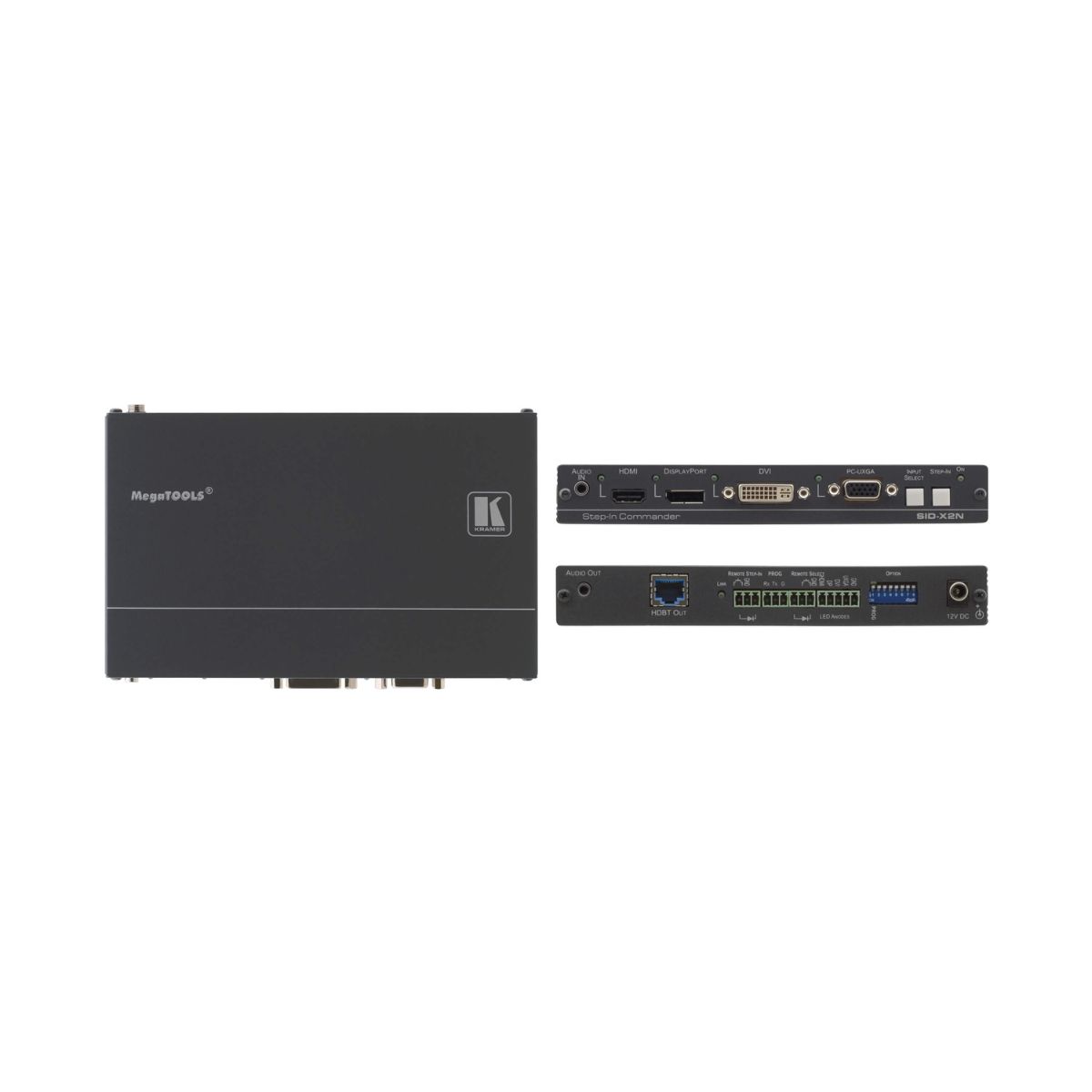

SID-X2N

The SID−X2N is an HDBaseT twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.

Contact to Seller
  •  Max. Data Rate — 6.75Gbps (up to 1080p @60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p @60Hz 24bpp) in ultra mode.
  •  HDTV Compatible.
  •  HDCP Compliant — Works with sources that support HDCP repeater mode.
  •  HDMI Support — Deep Color, x.v.Color™ and 3D.
  •  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
Download Product catalog

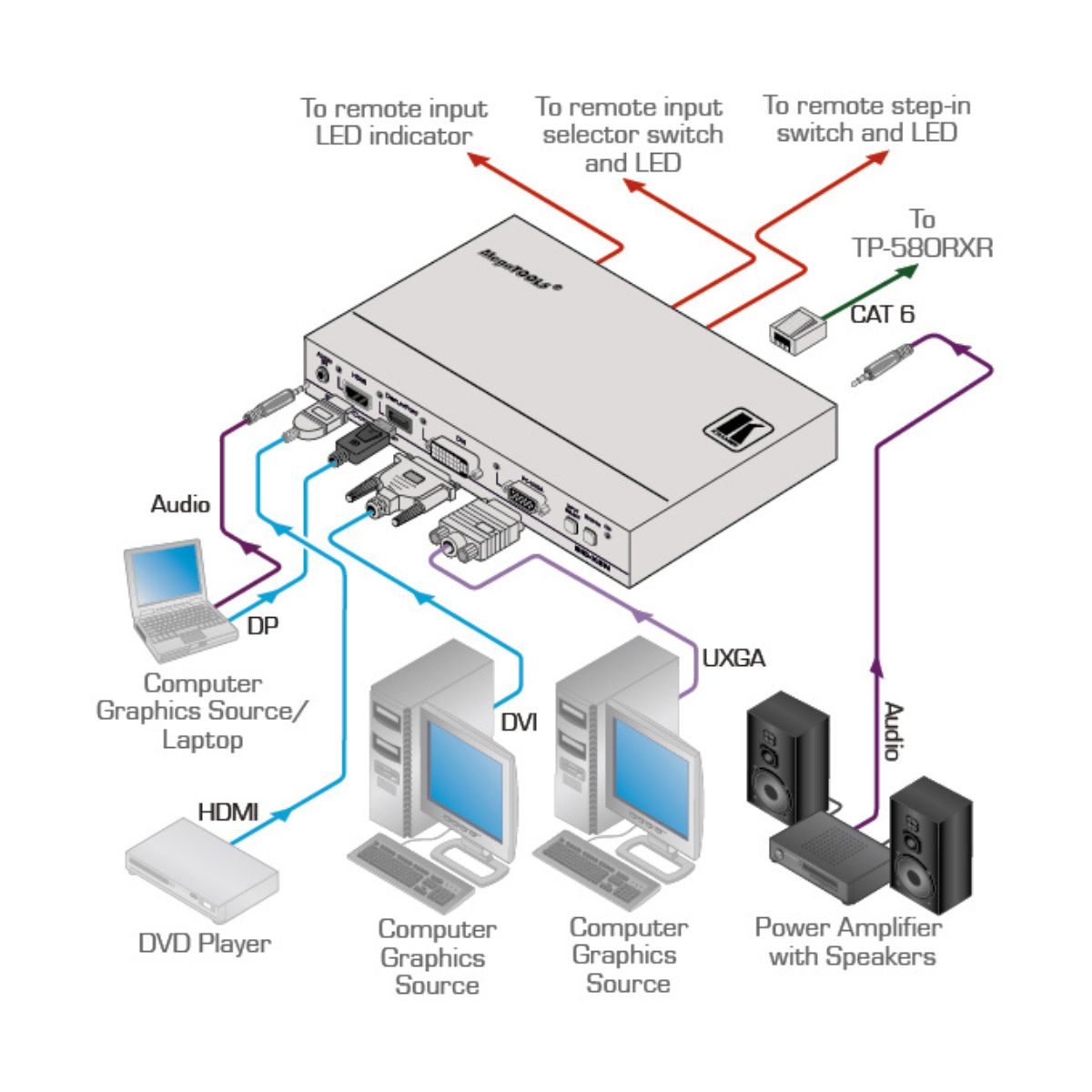

INPUTS
  • 1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI–D on a DVI–I connector
  • 1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack

OUTPUTS
  • 1 HDBaseT TP on an RJ–45, 1 unbalanced stereo audio in a 3.5mm mini jack

PORTS
  • 1 RS–232 3–pin terminal block for programming

CONTROLS
  • Front panel buttons, remote step–in switch, and remote input selection switches

ANALOG AUDIO INPUT
  • Maximum level — 3Vpp

REMOTE LED IMPEDANCE
  • 5V, 300Ω approx
