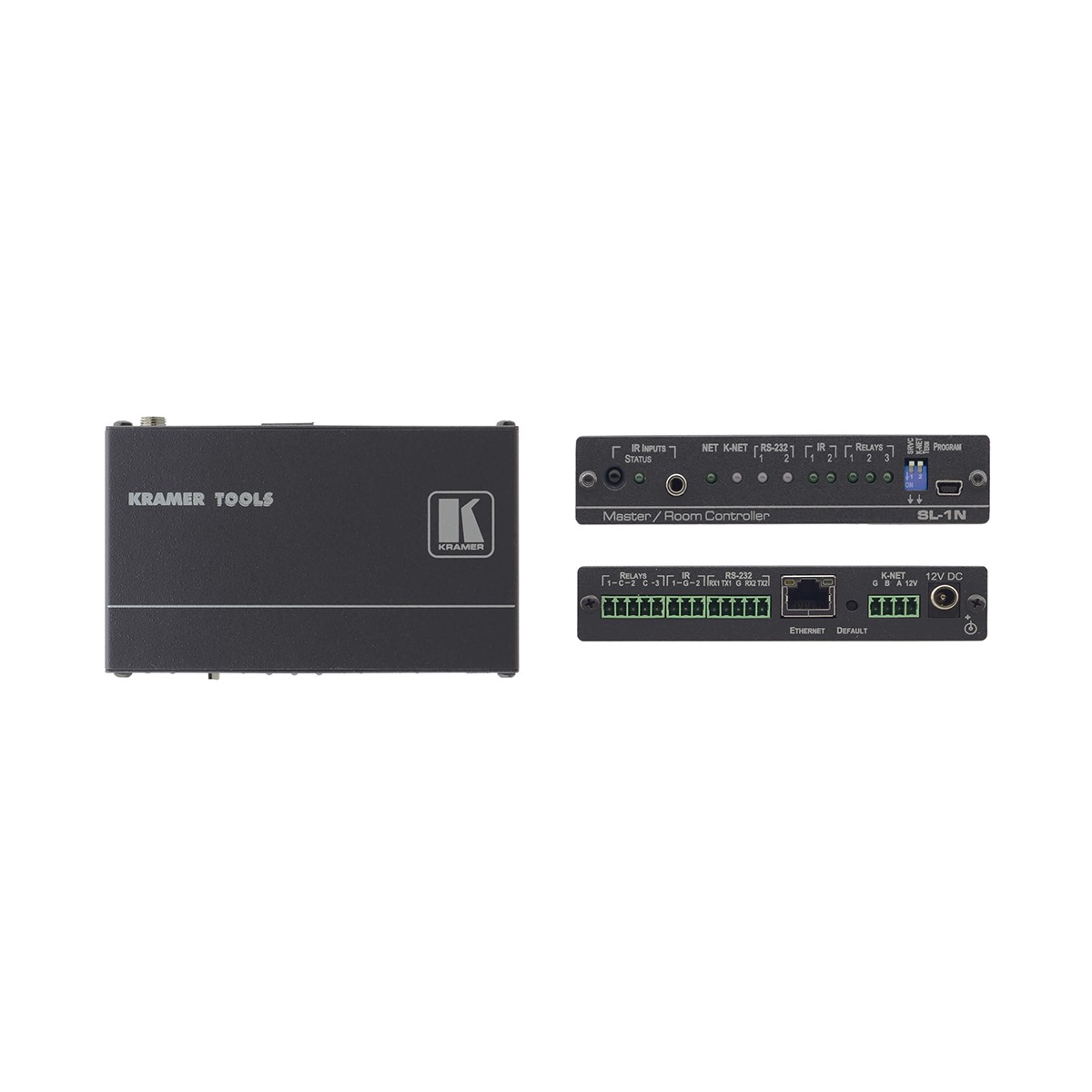

SL-1N Ethernet Room Controller

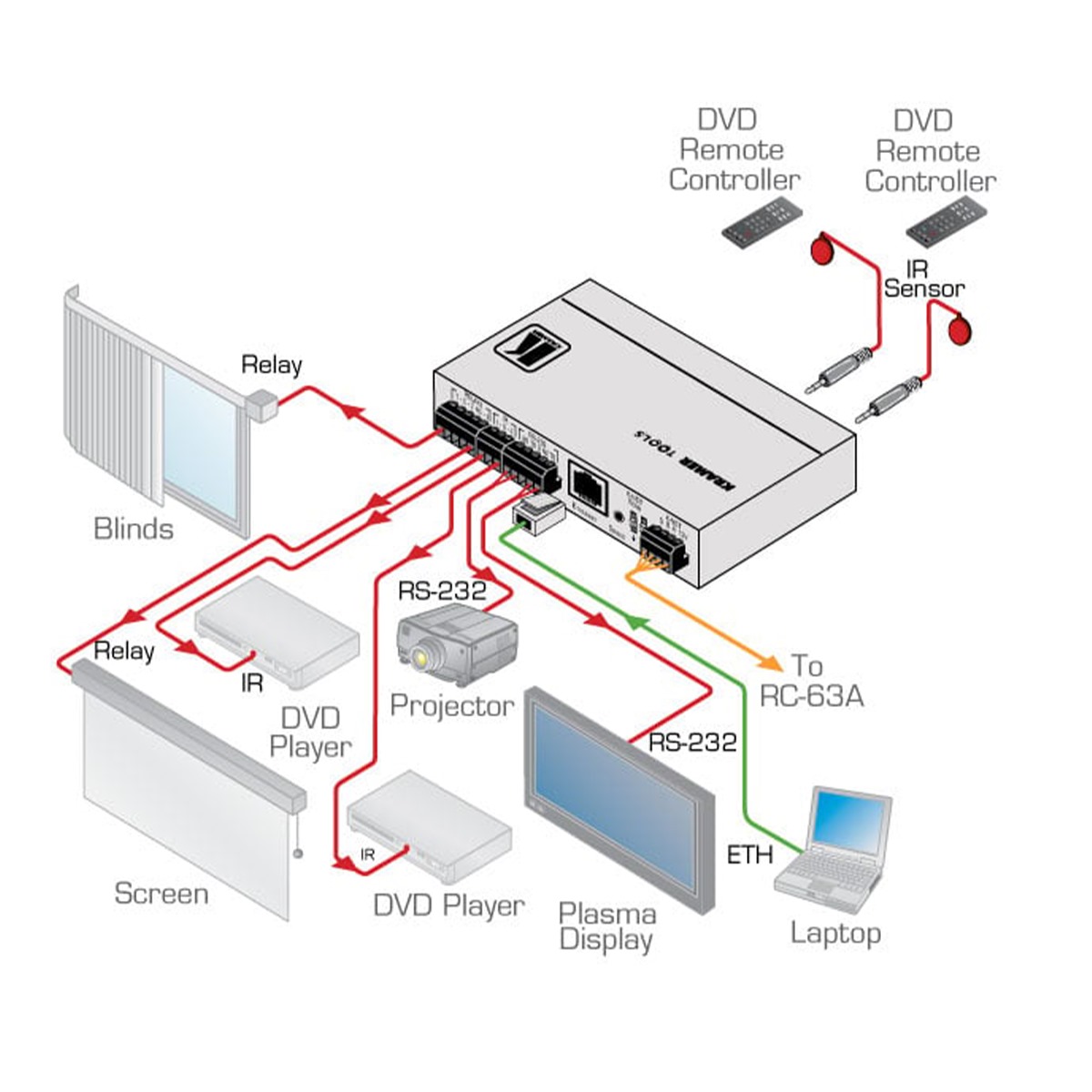

The SL-1N is an Ethernet-based master room controller featuring 2 bidirectional RS-232 ports, 2 IR ports, and 3 relays for controlling AV equipment, lighting, screens, and other devices. It supports expandable remote I/O and provides K-NET connectivity and power to auxiliary room controllers and keypads.
- 2 Bidirectional RS–232 ports
- 2 IR emitter ports
- 3 relay ports
- 1 IR sensor and 1 IR input port for learning
- 1 Ethernet port
- 1 K–NET™ port
- K–Config™ programming software compatible
- Site–CTRL™ software compatible
- Supported by: K–Config Only
| BIDIRECTIONAL PORTS | 2 RS−232 serial on 3−pin terminal blocks, 1 K−NET on a 4-pin terminal block connector, 1 Ethernet on an RJ−45 connector, 1 Mini USB connector for local programming services |
| INPUTS | 1 built−in IR sensor, 1 IR-in on 3.5 mm mini-jack (for learning) |
| OUTPUTS | 2 IR−out and 3 relays (36V AC or DC, 2A, 60VAC maximum on non−inductive load) on 2−pin terminal block connectors |
| INDICATORS | LED indicator for each port and function |
| POWER CONSUMPTION | 12V DC, 180mA |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | −40° to +70°C (−40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non-condensing |
| INCLUDED ACCESSORIES | Power supply |
| Product Dimensions | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
| Product Weight | 0.2kg (0.4lbs) approx |
| Shipping Dimensions | 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H |
