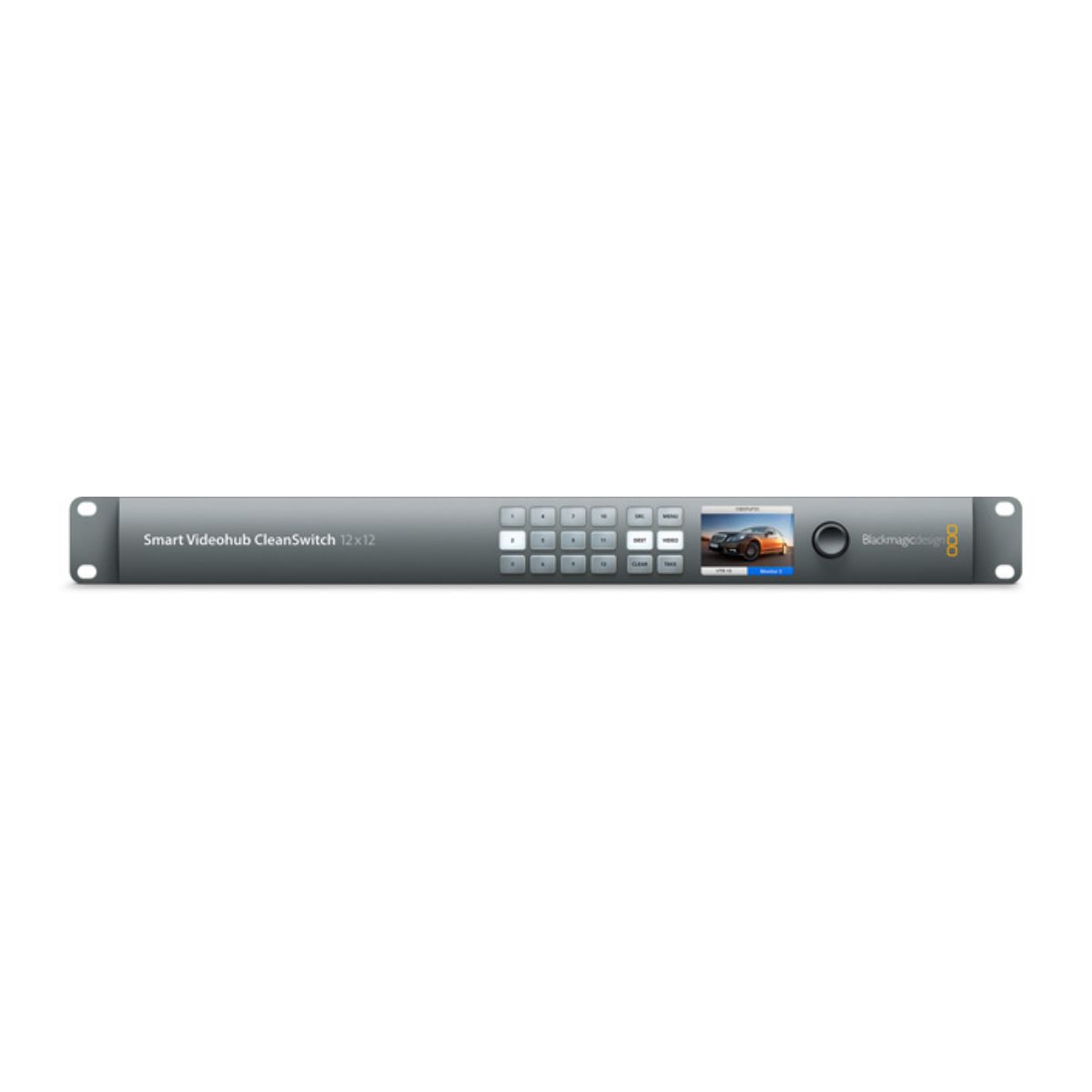

Compact 6G-SDI router with built-in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring, and remote Ethernet control.

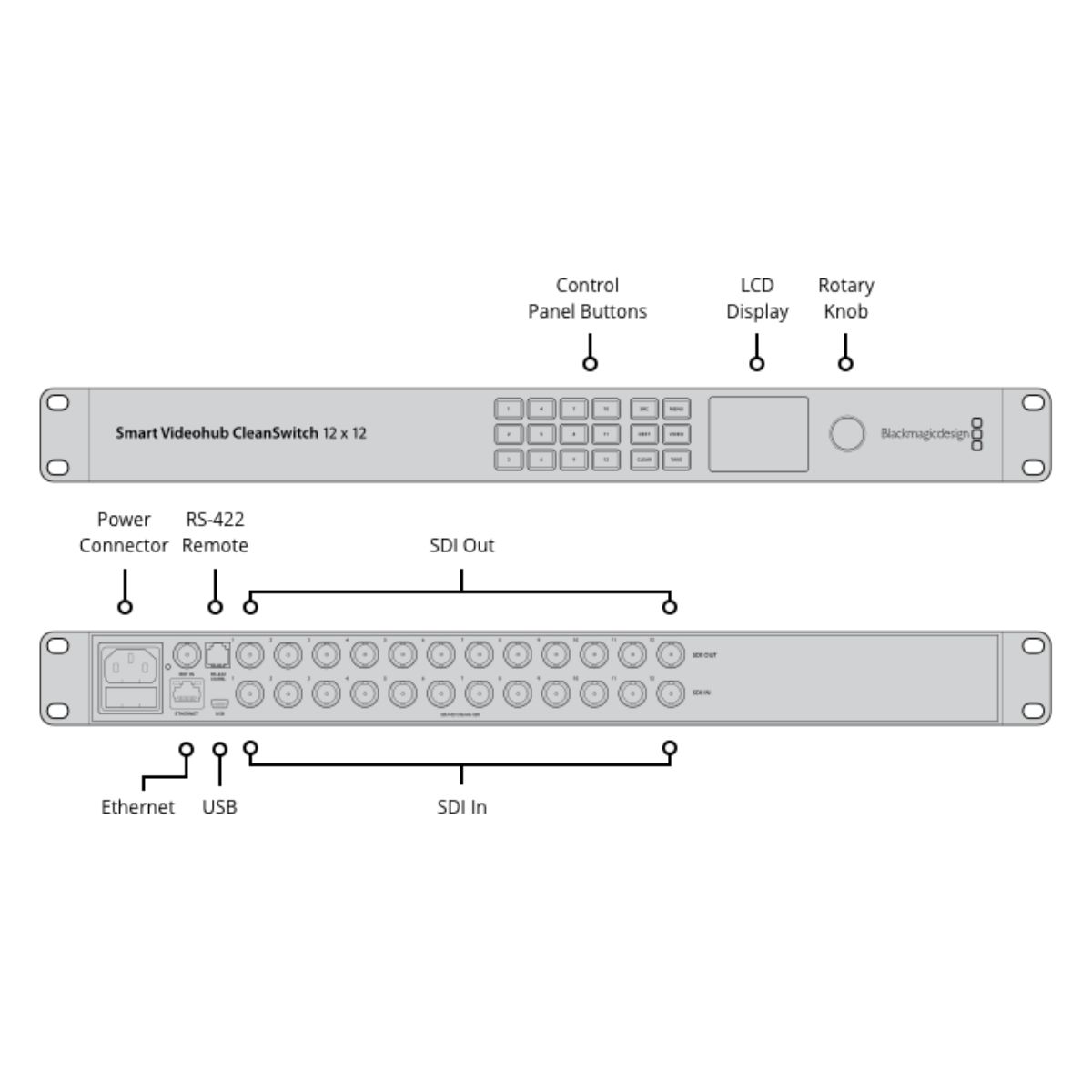

Connections
|
SDI Video Inputs |
12 x 10-bit SD-SDI, HD-SDI, and 6G-SDI. |
|
SDI Video Outputs |
12 x 10-bit SD-SDI, HD-SDI, and 6G-SDI. |
|
SDI Rates |
3 |
|
Video Input Re-Sync |
On all 12 inputs for the clean switch. |
|
SDI Reclocking |
On all SDI outputs. |
|
Reference Input |
Tri-Sync or Black Burst. |
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL. |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|
2K Video Standards |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
|
4K Video Standards |
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601. |
Warranty |
3 Year Limited Manufacturer’s Warranty. |
