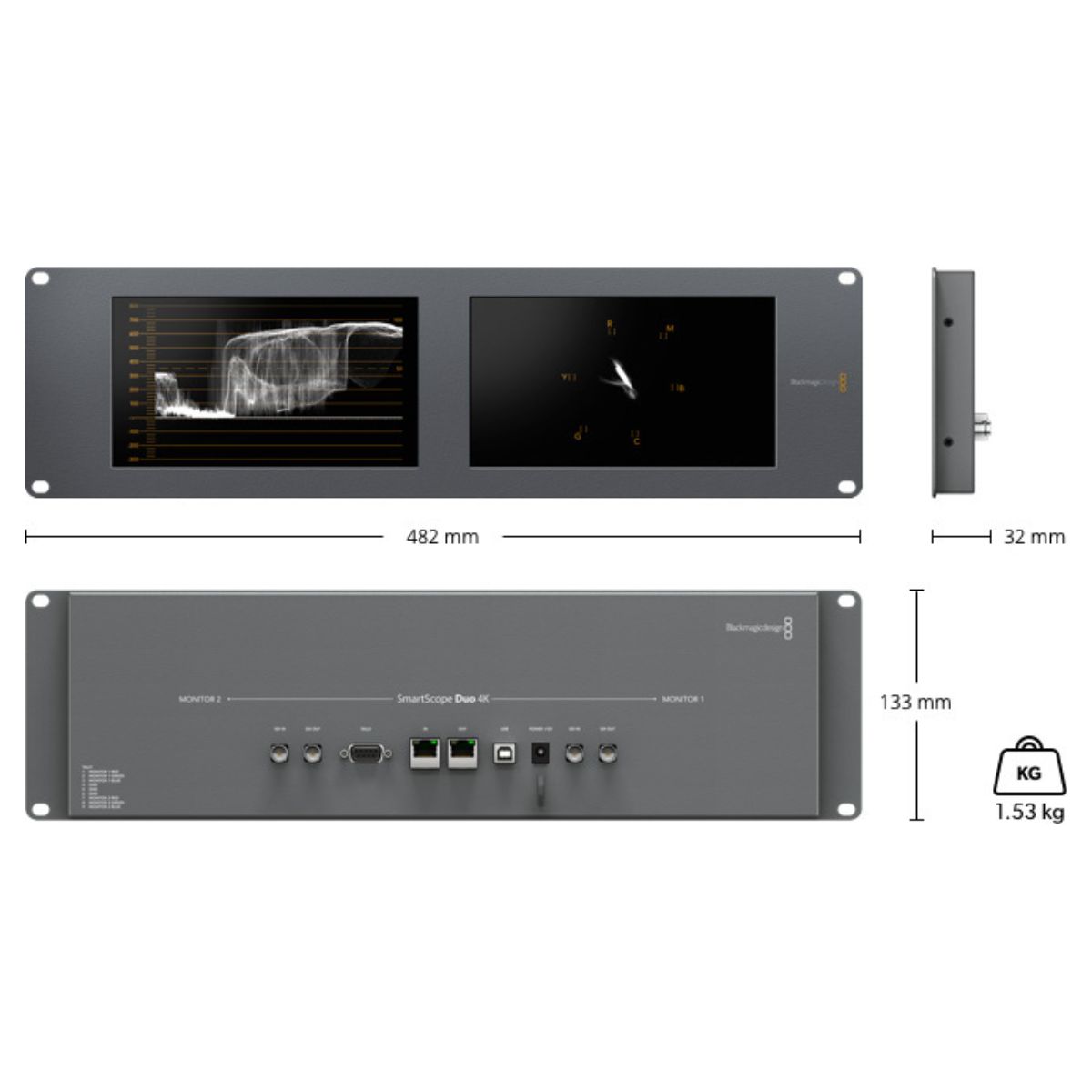

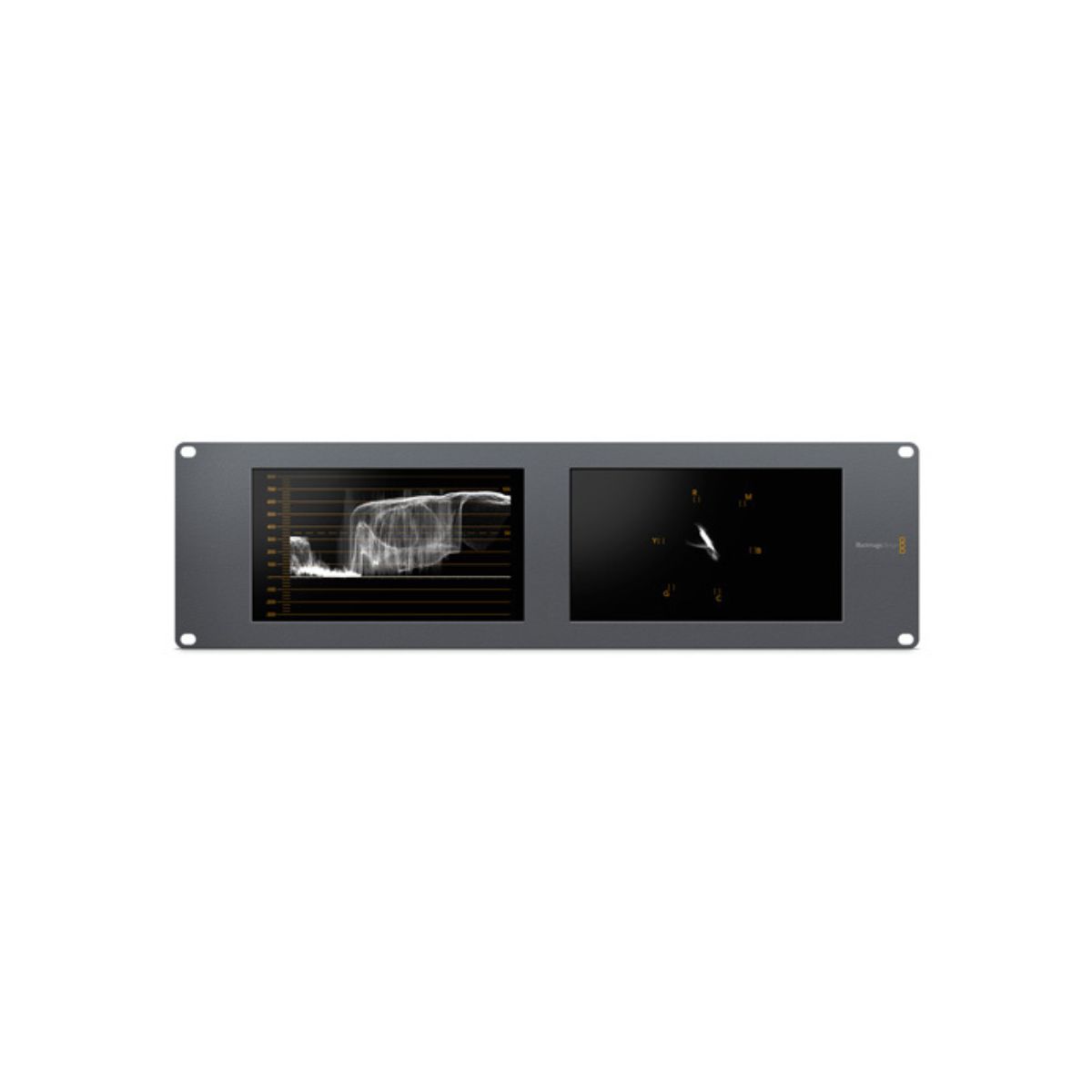

SmartScope Duo 4K
SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram, and audio phase level displays. Each monitor is independent, so it can display any combination of scope or picture view!

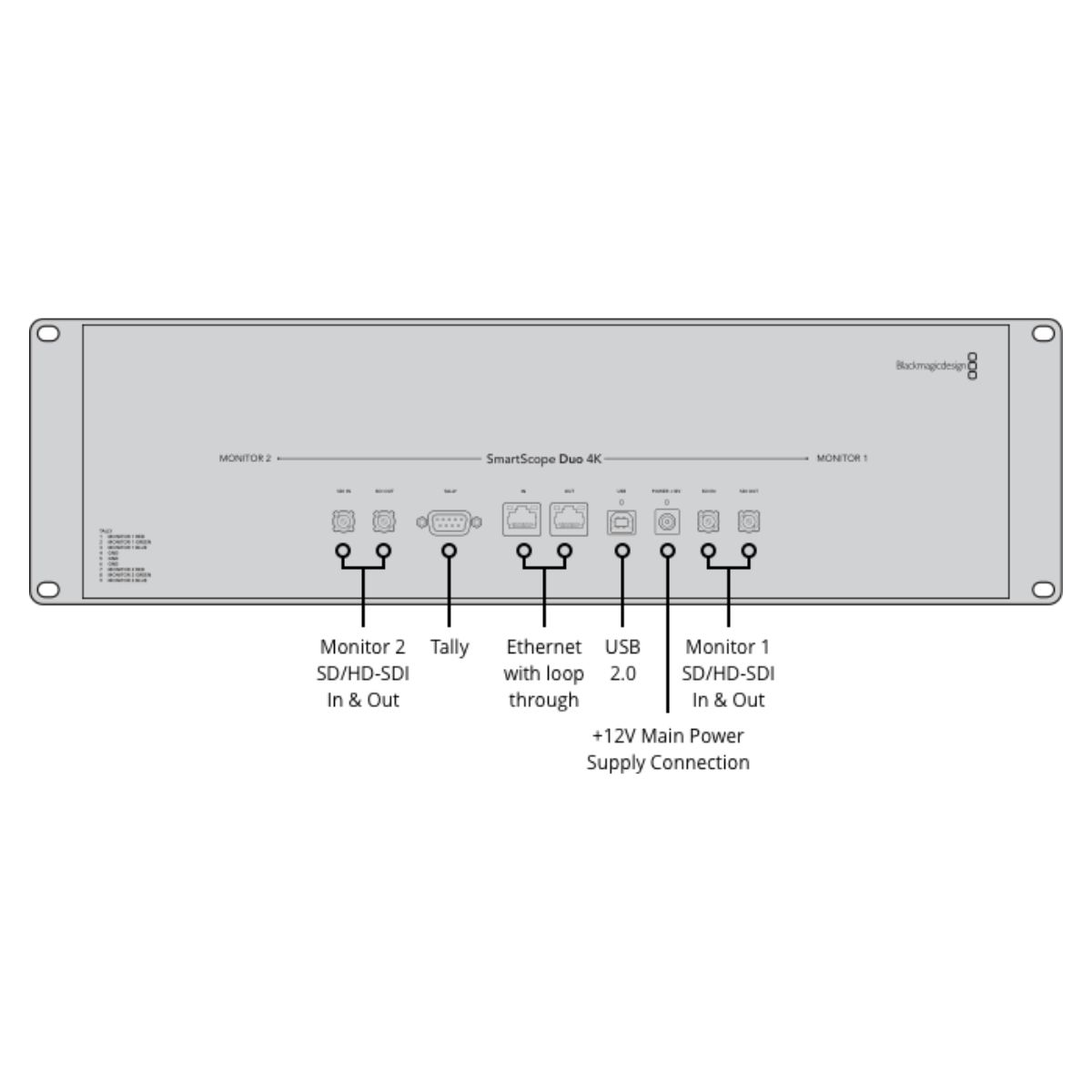

Connections
|
SDI Video Input |
Automatically switches between SD, HD, and 6G-SDI. Reclocked loop through output. |
|
SDI Video Output |
1 x 10-bit loop through SD, HD, and 6G-SDI switchable. |
|
SDI Audio Input |
16 channels embedded in SD, HD, and UHD. |
|
SDI Audio Output |
16 channels embedded in SD, HD, and UHD. |
|
Multi Rate Support |
Standard definition SDI, high definition SDI, and 6G-SDI. |
Standards
|
SD Format Support |
525i29.97 NTSC, 625i50 PAL |
|
HD Format Support |
720p50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60 |
|
2K Format Support |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
|
Ultra HD Format Support |
2160p23.98, 24, 25, 29.97, 30 |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, Level B, and SMPTE 425M. |
|
Audio Sampling |
Television sample rate of 48KHz |
