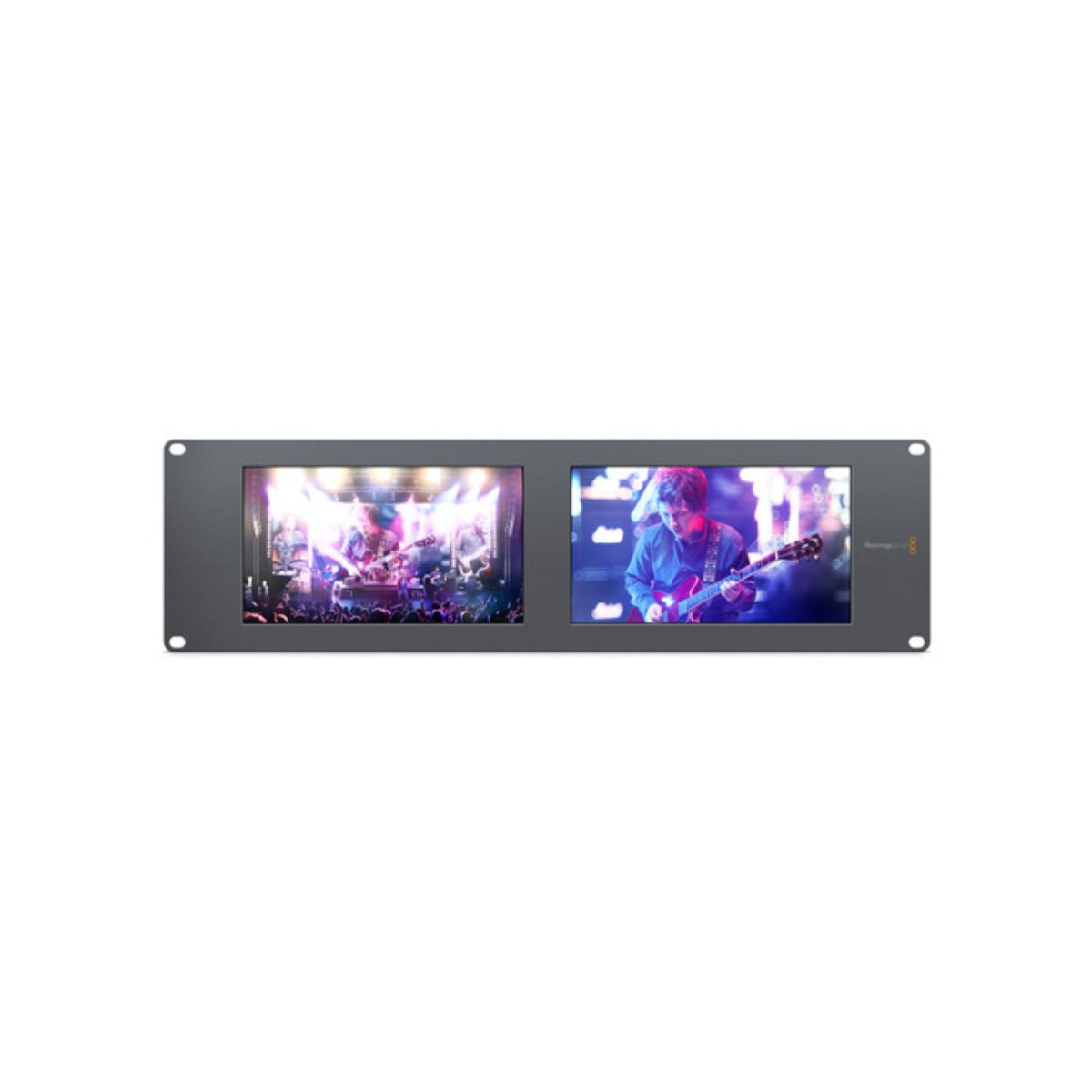

Featuring two large independent 8-inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD, and 3Gb/s SDI video standards. SmartView Duo is perfect for post-production, broadcast, and live event monitoring. For easy setup, all screens can be remotely adjusted via Ethernet connection. With SmartView Duo, you can install SDI monitoring everywhere you need!

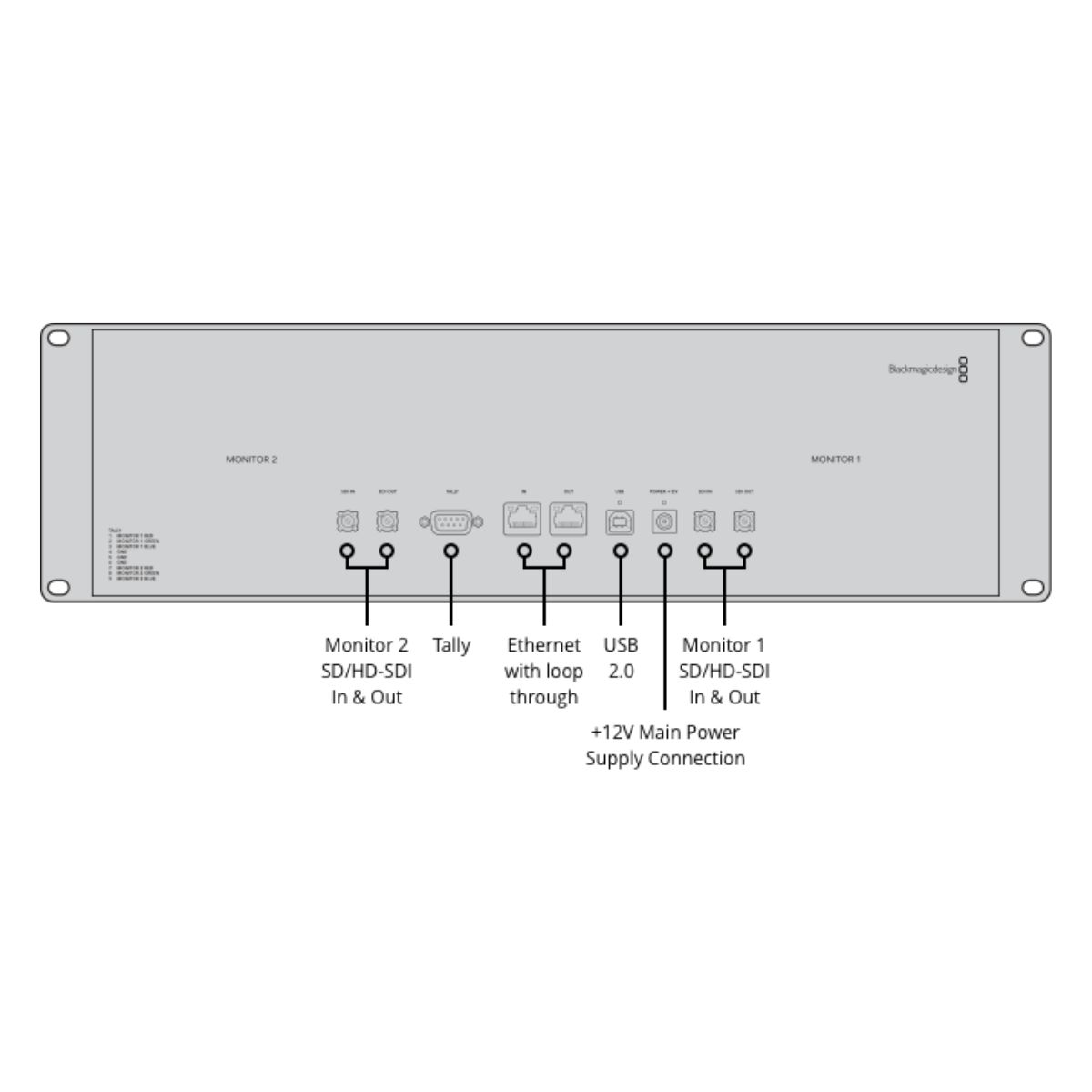

Connections
|
SDI Video Input |
Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output. |
|
Multi Rate Support |
Auto detection of 2K, HD or standard definition inputs. |
|
Updates and Configuration |
Via USB 2.0 high speed (480 Mb/s) |
|
Ethernet |
10/100 BaseT with loop through. |
|
Tally |
9-pin D connector |
Standards
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M |
|
SDI Color Space |
REC 601, REC 709 |
|
SDI Auto Switching |
Automatically selects between SD, HD and 3 Gb/s SDI. |
|
Video Sampling |
4:2:2 and 4:4:4 |
|
SDI Format Support |
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|
2K Format Support |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
