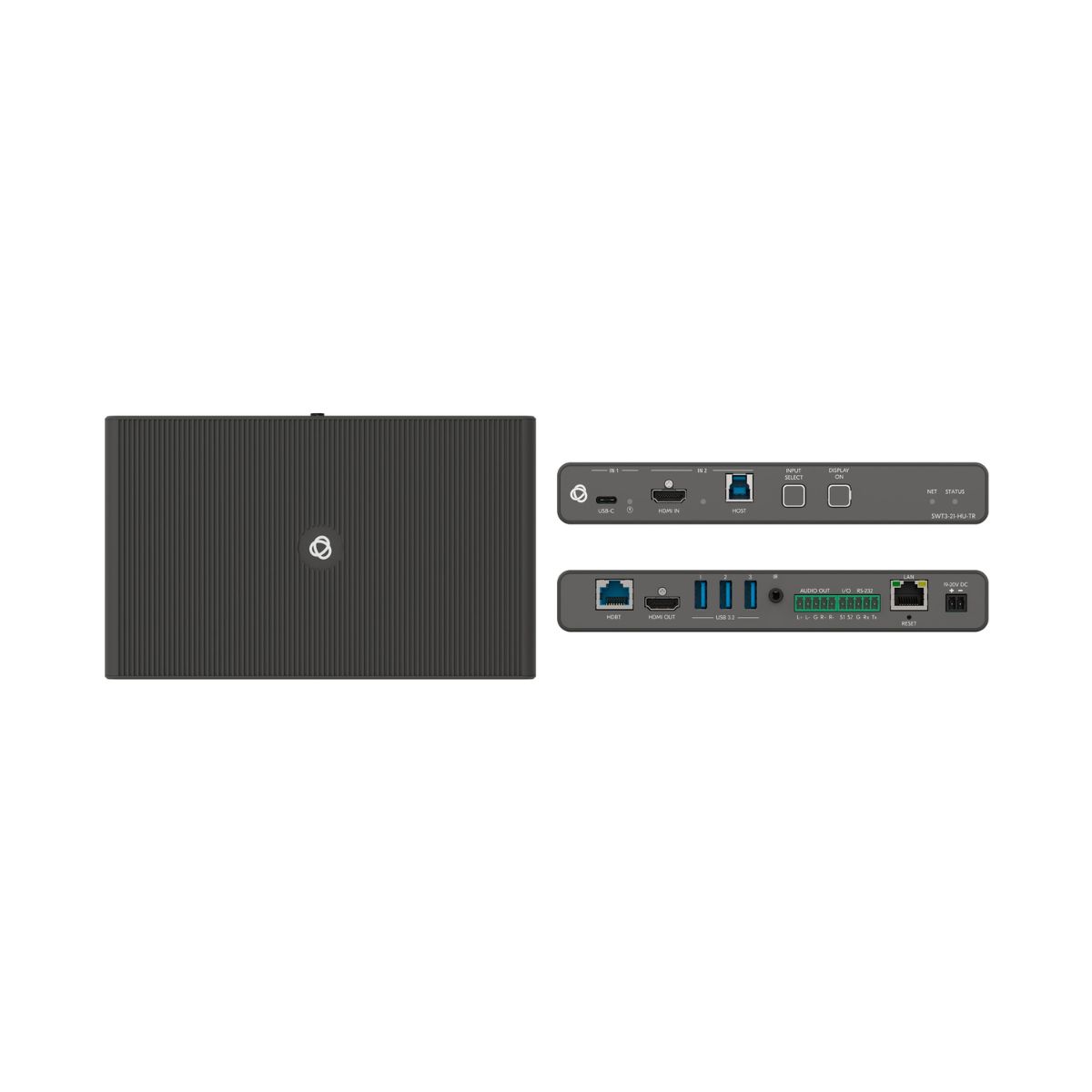

SWT3-21-HU-TR

SWT3−21−HU−TR is a high−performance auto−switcher with one USB−C and one HDMI/USB input, HDMI output, and long−range HDBaseT 3.0. The HDBaseT 3.0 port is configurable as either a transmit (output) or a receive (input) link. The unit extends a 4K60Hz (4:4:4) HDMI, USB 2.0, RS−232, IR

Contact to Seller
  • 4K60 4:4:4 AV and USB 3.2 coupled–signals switching
  • Flexible 40m HDBT 3.0 switcher transmitter or Receiver
  • K–Pair Auto–Switching Capability
  • Built–in USB–C docking with charging
  • Secured remote control and management
Download Product catalog

Inputs
  • 1 DP Alt Mode & PD 3.0 USB-C: On a USB type–C female connector
  • 1 HDMI: On an HDMI female connector
  • 1 HDBT: On an RJ–45 female connector (configurable direction)

Outputs
  • 1 HDBT: On an RJ–45 female connector (configurable direction)
  • 1 HDMI: On an HDMI female connector
  • 1 Balanced Stereo Audio Line: On 5–pin terminal block connector

Ports
  • 2 USB 3.2 Host: On a USB–C & USB–B female connectors
  • 3 USB 3.2 Device: On USB type–A female connectors
  • 1 RS–232: On a 3–pin terminal block
  • 1 IR: On a 3.5mm mini jack for IR extension
  • 2 GPIO: On a 2–pin terminal block

Extension Line
  • Reach: Up to 40m (131ft), using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b

USB Features
  • USB 3.2 Data Rate: Up to 10Gbps
  • Integrated USB Hubs: 1
  • Standards Compliance: USB 3.2 GEN 2, 2.0, and 1.1
