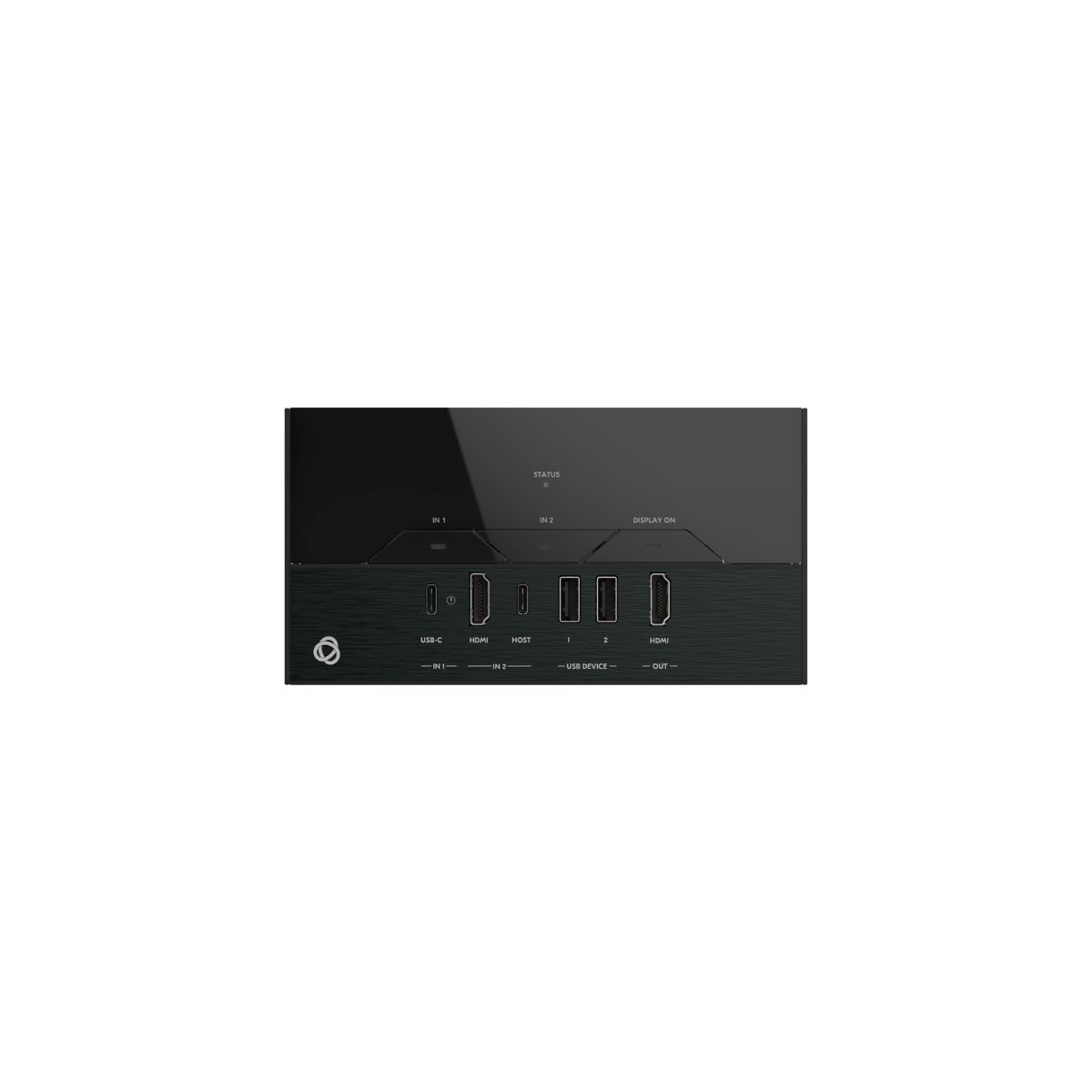

SWT3-22-HU-WP-T

SWT3−22−HU−WP−T is a high−performance auto−switcher transmitter with one USB−C and one HDMI/USB inputs and independently routable HDMI and extended−range HDBaseT 3.0 outputs, that extends 4K60Hz (4:4:4) HDMI, USB 2.0,

Contact to Seller
  • 4K60 4:4:4 AV and USB 3.2 coupled–signals switching
  • K–Pair Auto–Switching Capability
  • Built–in USB–C docking
  • 100m HDBT 3.0 & HDMI independent outputs
  • Secured remote control and management
Download Product catalog

Inputs
  • 1 DP Alt Mode & PD 3.0 USB-C: On a USB Type–C female connector
  • 1 HDMI: On an HDMI female connector

Outputs
  • 1 HDBT PoE accepting: On an RJ–45 female connector
  • 1 HDMI: On an HDMI female connector
  • 1 Balanced Stereo Audio Line: On a 5–pin terminal block connector

Ports
  • 2 USB 3.2 Host: On USB–C female connectors
  • 2 USB 3.2 Device: On USB Type–A female connectors
  • 1000BaseT Ethernet: On an RJ–45 female connector for LAN connection & extension
  • 1 RS–232: On a 3–pin terminal block
  • 2 GPIO: On a 2–pin terminal block

Extension Line
  • Reach: Up to 100m (330ft), using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b

USB Features
  • USB 3.2 Data Rate: Up to 10Gbps
  • Integrated USB Hubs: 1
  • Standards Compliance: USB 3.2 GEN 2, 2.0, and 1.1
