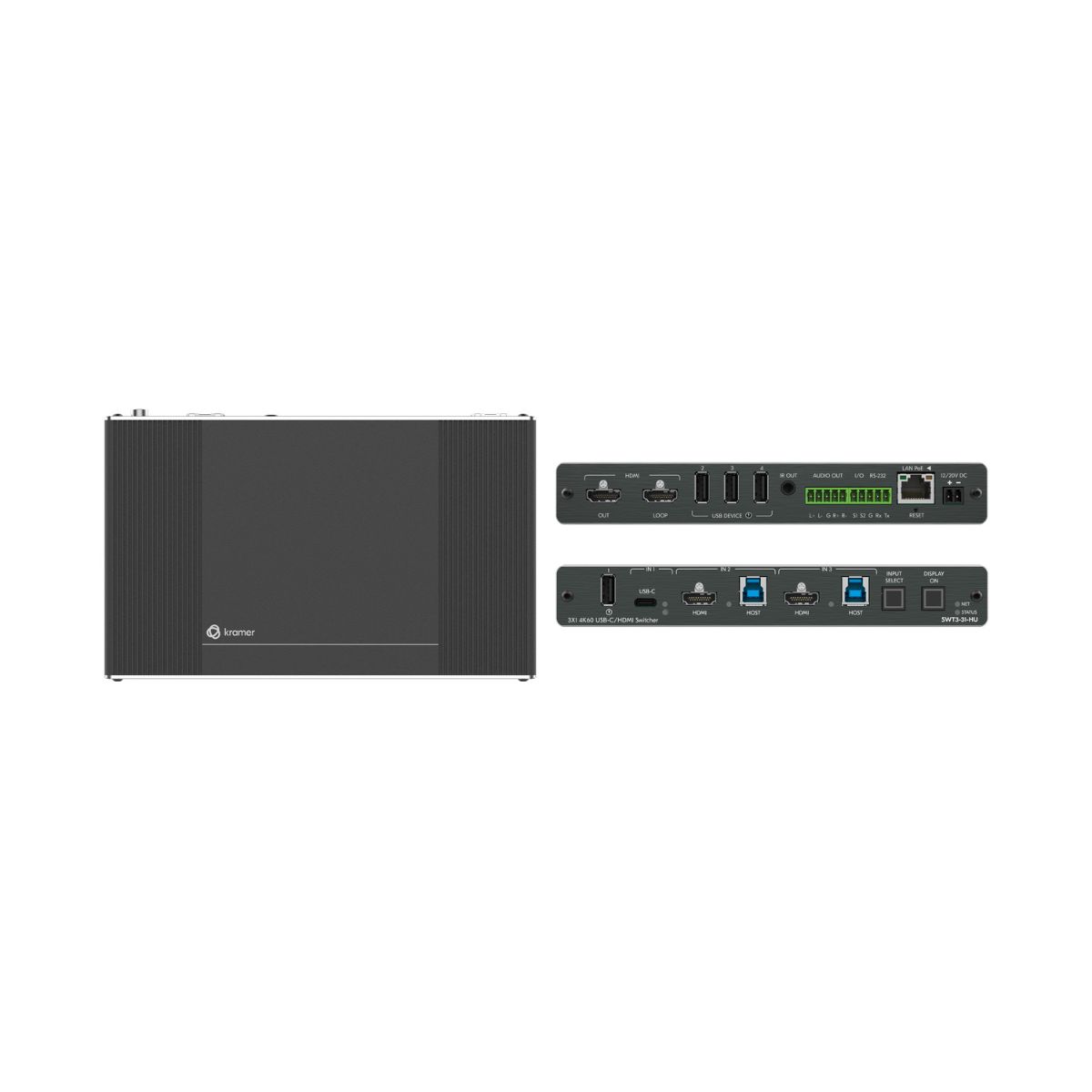

SWT3-31-HU

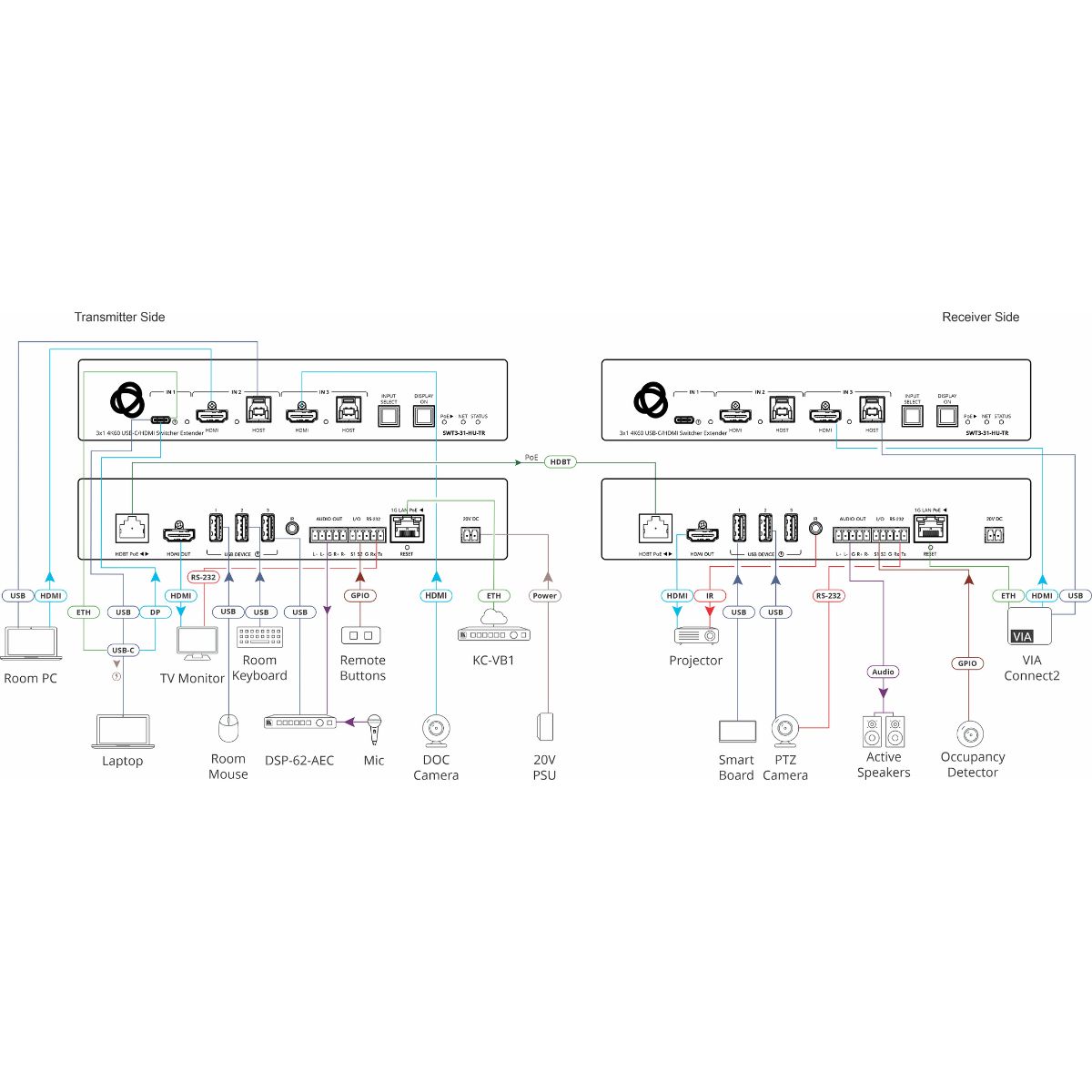

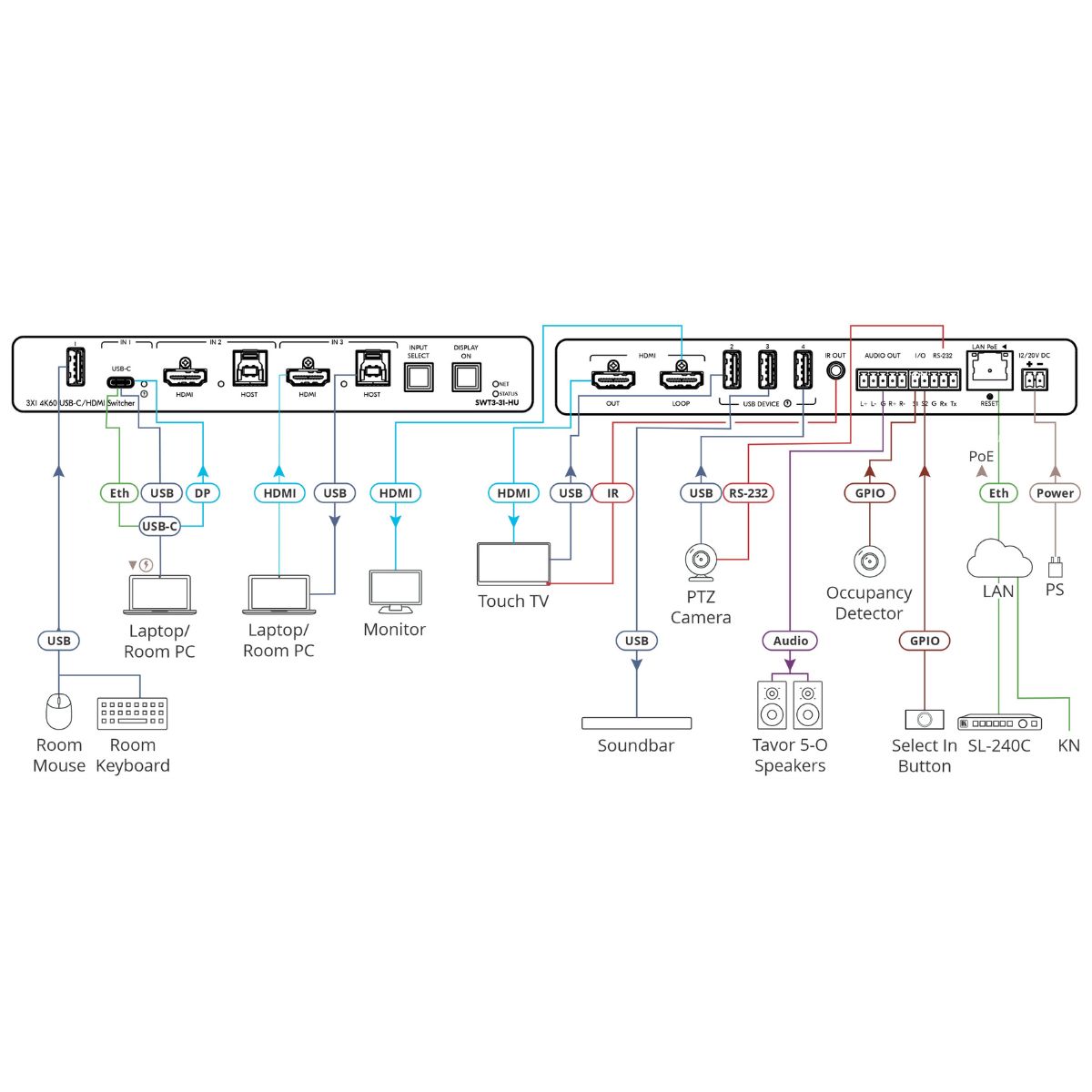

SWT3−31−HU is a high−performance auto−switcher with one USB−C and two HDMI/USB inputs and HDMI output. The connected USB peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient hybrid meeting operation with both room and online participants.

Contact to Seller
  • 4K60 4:4:4 AV and USB 3.2 coupled–signals switching
  • Built–in USB–C docking
  • PoE powering
  • Secured remote control and management
Download Product catalog

Inputs
  • 1 DP Alt Mode & PD 3.0 USB-C: On a USB Type–C female connector
  • 2 HDMI: On an HDMI female connector

Outputs
  • 1 HDMI: On an HDMI female connector
  • 1 HDMI Loop: On an HDMI female connector
  • 1 Balanced Stereo Audio Line: On a 5–pin terminal block connector
  • 1 IR: On a 3.5mm mini jack for IR extension

Ports
  • 1 USB 3.2 Host: On a USB–C female connector
  • 2 USB 3.2 Host: On a USB–B female connector
  • 4 USB 3.2 Device: On USB Type–A female connectors
  • 1 Ethernet: On an RJ–45 female connector for LAN connection
  • 1 RS–232: On a 3–pin terminal block
  • 2 GPIO: On a 2–pin terminal block

Video
  • 1 USB 3.2 Host: On a USB–C female connector
  • 2 USB 3.2 Host: On a USB–B female connector
  • 4 USB 3.2 Device: On USB Type–A female connectors
  • 1 Ethernet: On an RJ–45 female connector for LAN connection
  • 1 RS–232: On a 3–pin terminal block
  • 2 GPIO: On a 2–pin terminal block

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b

USB Features
  • USB 3.2 Data Rate: Up to 10Gbps
  • Integrated USB Hubs: 1
  • Standards Compliance: USB 3.2 GEN 2, 2.0, and 1.1
