SWT3-31-HU-TR

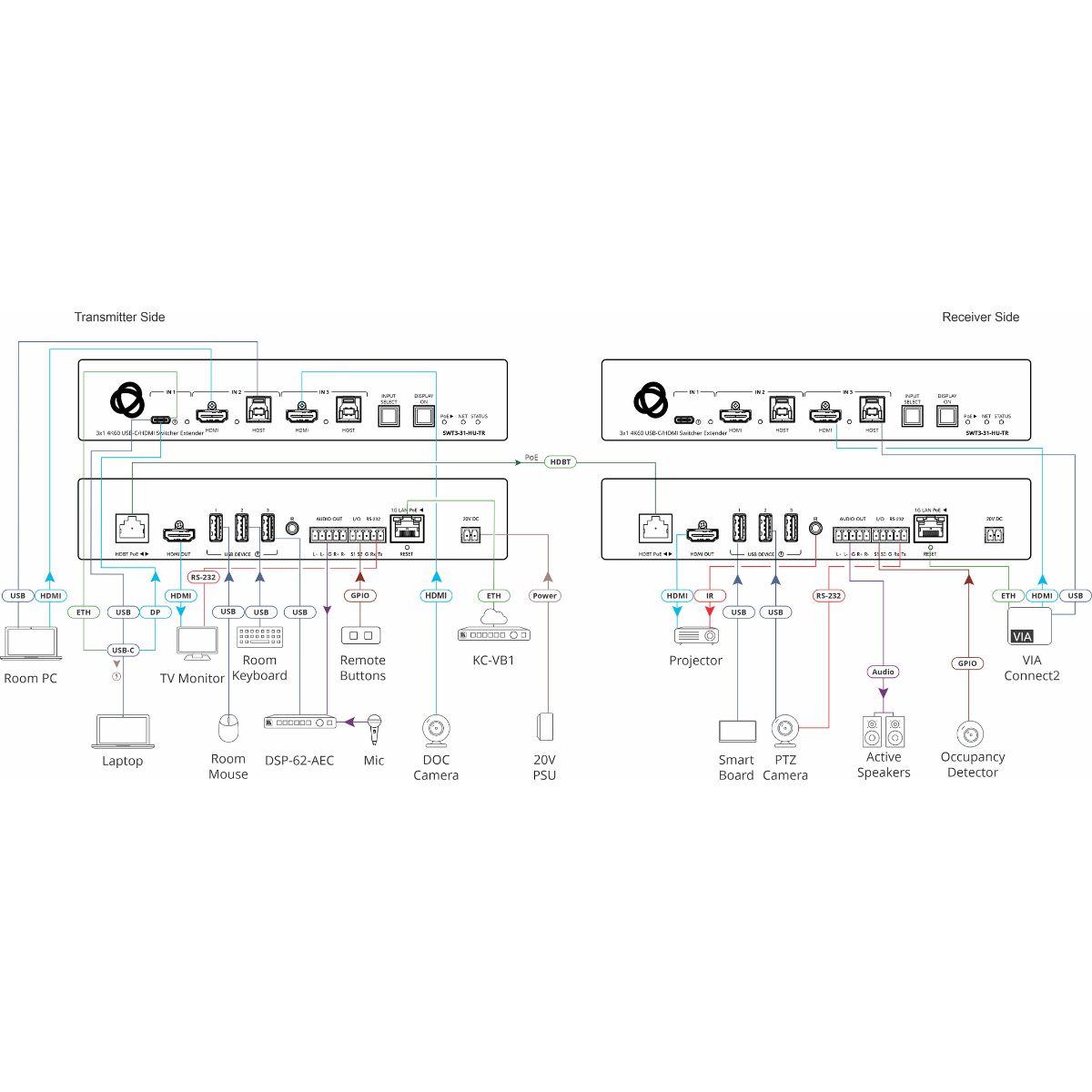

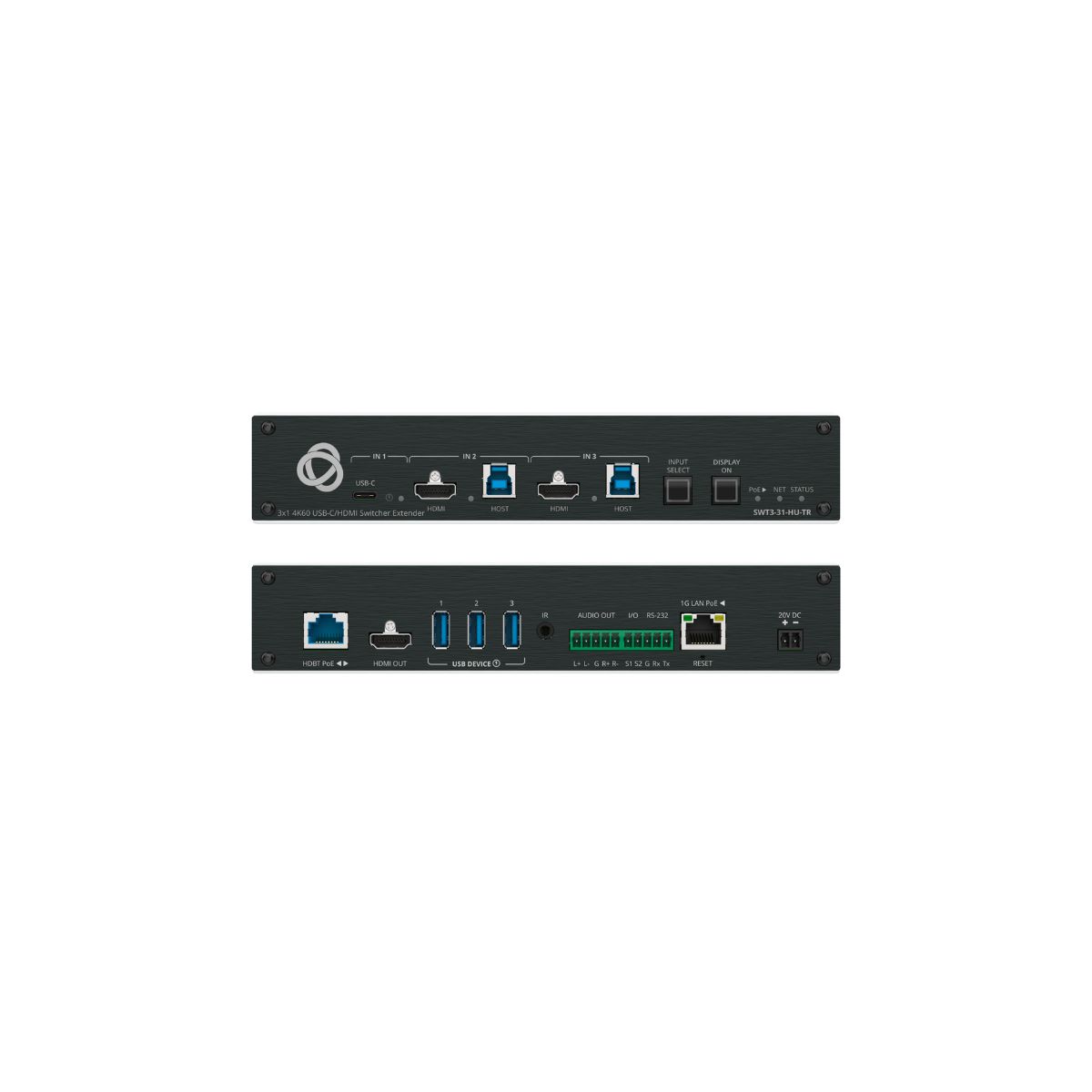

SWT3 31 HU TR is a high−performance auto−switcher with one USB−C and two HDMI/USB inputs, HDMI output, and extended−range HDBaseT 3.0, flexibly set for transmit (output) or receive (input) link, for extension of 4K60Hz (4:4:4) HDMI, USB 2.0, Ethernet, RS−232, IR, and power signals over twisted pair cable. The local and remote connected USB peripherals, such as a room camera

Contact to Seller
  • 4K60 4:4:4 AV and USB 3.2 coupled–signals switching
  • Flexible 100m HDBT 3.0 switcher transmitter or Receiver
  • K–Pair Auto–Switching Capability
  • Built–in USB–C docking
  • Flexible LAN & HDBT PoE powering
  • Secured remote control and management
Download Product catalog

Inputs
  • 1 DP Alt Mode & PD 3.0 USB-C: On a USB Type–C female connector
  • 2 HDMI: On an HDMI female connector
  • 1 HDBT 2-way PoE: On an RJ–45 female connector

Outputs
  • 1 HDBT 2-way PoE: On an RJ–45 female connector
  • 1 HDMI: On an HDMI female connector
  • 1 Balanced Stereo Audio Line: On a 5–pin terminal block connector

Ports
  • 3 USB 3.2 Host: On a USB–C & USB–B female connectors
  • 3 USB 3.2 Device: On USB Type–A female connectors
  • 1 PoE accepting 1000BaseT Ethernet: On an RJ–45 female connector for LAN connection & extension
  • 1 RS–232: On a 3–pin terminal block
  • 1 IR: On a 3.5mm mini jack for IR extension
  • 2 GPIO: On a 2–pin terminal block

Extension Line
  • Reach: Up to 100m (330ft), using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b

USB Features
  • USB 3.2 Data Rate: Up to 10Gbps
  • Integrated USB Hubs: 1
  • Standards Compliance: USB 3.2 GEN 2, 2.0 and 1.1
