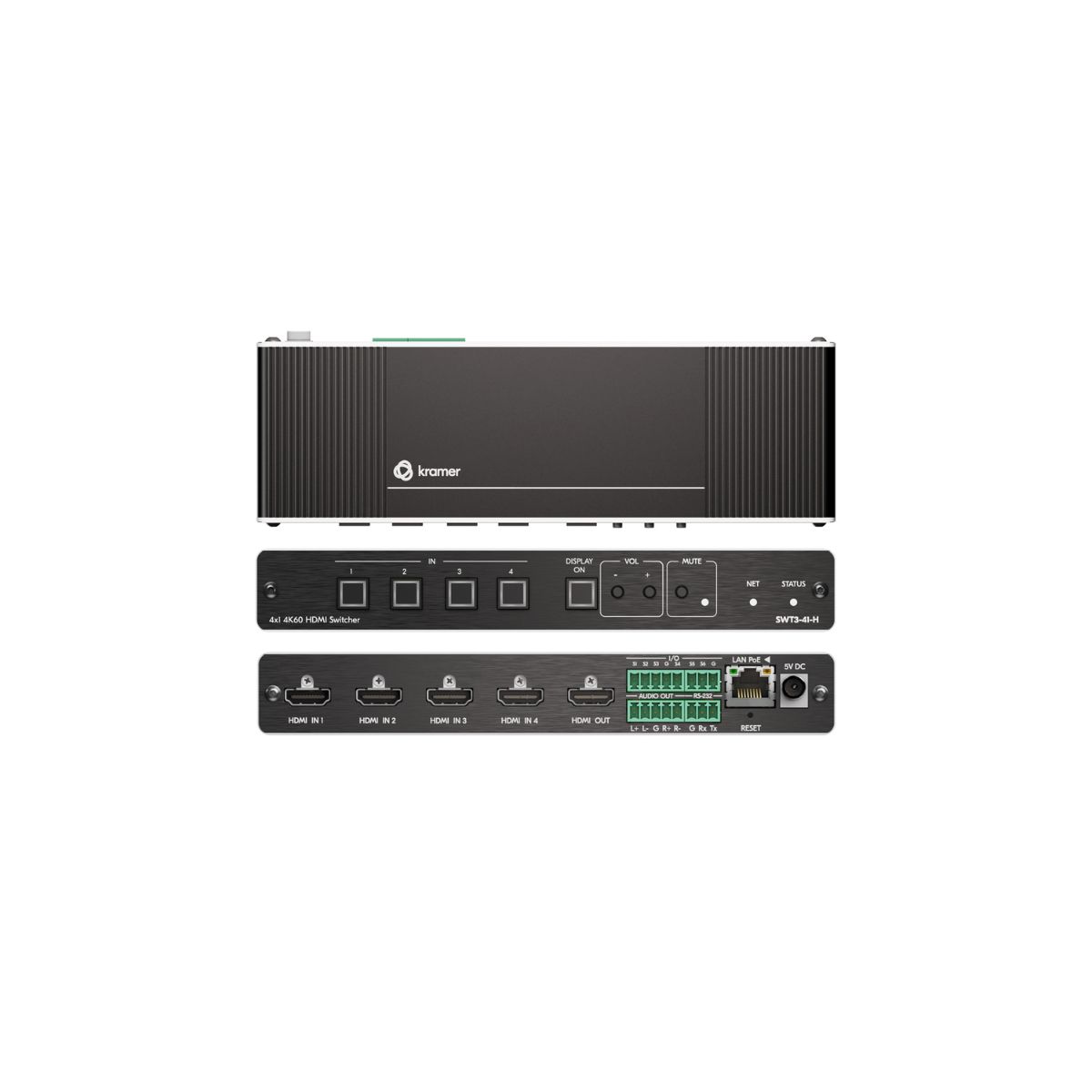

SWT3-41-H

SWT3−41−H is an intelligent 4x1 automatic switcher for 4K60 4:4:4 HDMI video signals, with plug-and-play user experience such as priority or last−connected auto−switching based on active video signal detection, and easy remote IP−driven management and control.

Contact to Seller
  • 4x1 Intelligent Switcher
  • Up to 4K@60Hz (4:4:4) Resolution
  • PoE powering
  • Secured remote control and management
Download Product catalog

Inputs
  • 4 HDMI: On a female HDMI connector

Outputs
  • 1 HDMI: On a female HDMI connector
  • 1 Balanced Stereo Audio: On 5–pin terminal block connector

Ports
  • 1 RS-232: On a 3–pin terminal block connector
  • 6 GPIO: On an 8–pin terminal block connector
  • 1 PoE-accepting Ethernet: On an RJ–45 connector

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) resolution
  • Content Protection: HDCP 2.2
  • HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b

Power
  • Power Adapter:
    Source: 5V DC, 4A
  • Consumption: 0.82A
  • PoE
    Consumption: 120mA
  • Max. Power: 5.76W

Enclosure
  • Size: DemiTOOLS®
  • Type: Aluminum
  • Cooling: Convection ventilation
