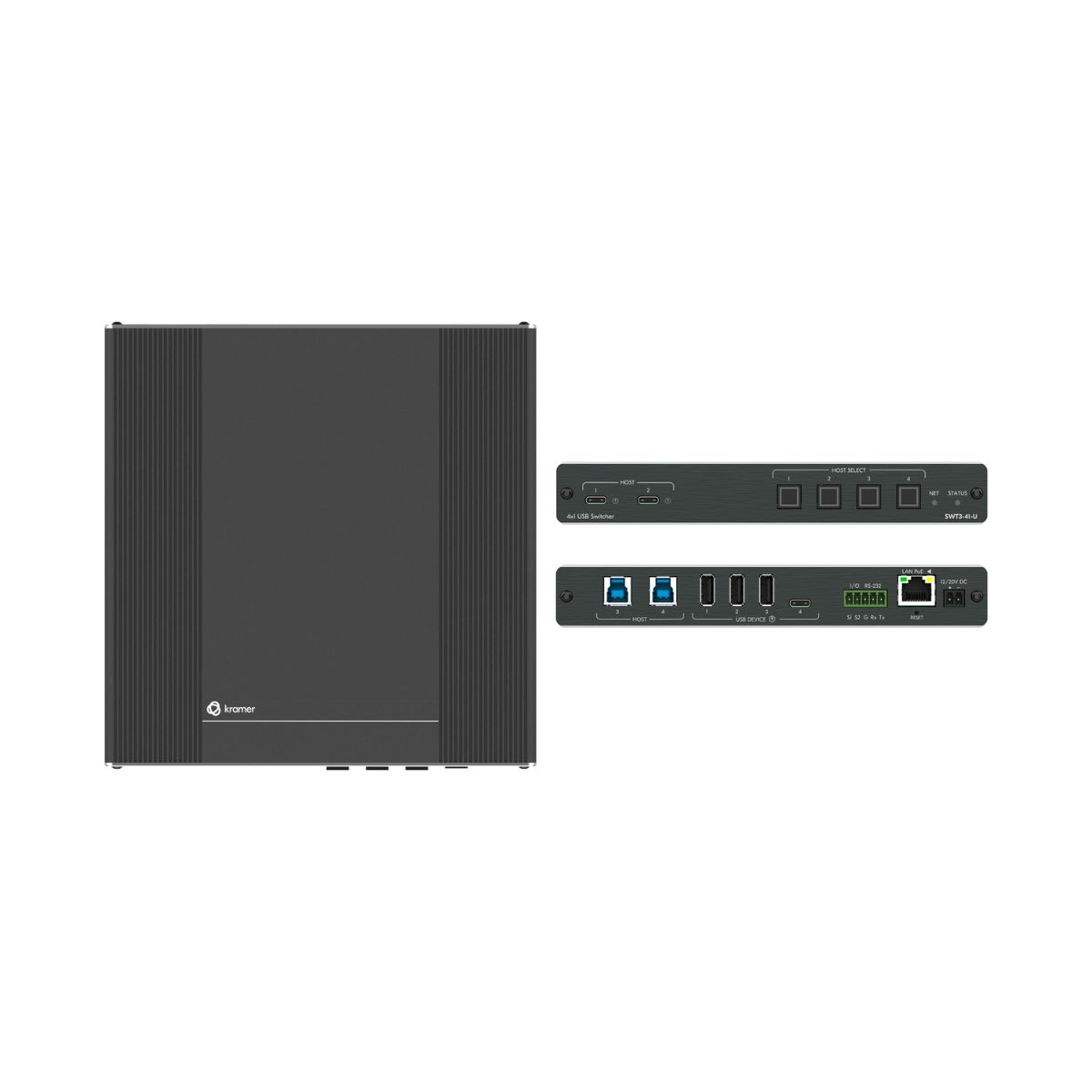

SWT3-41-U

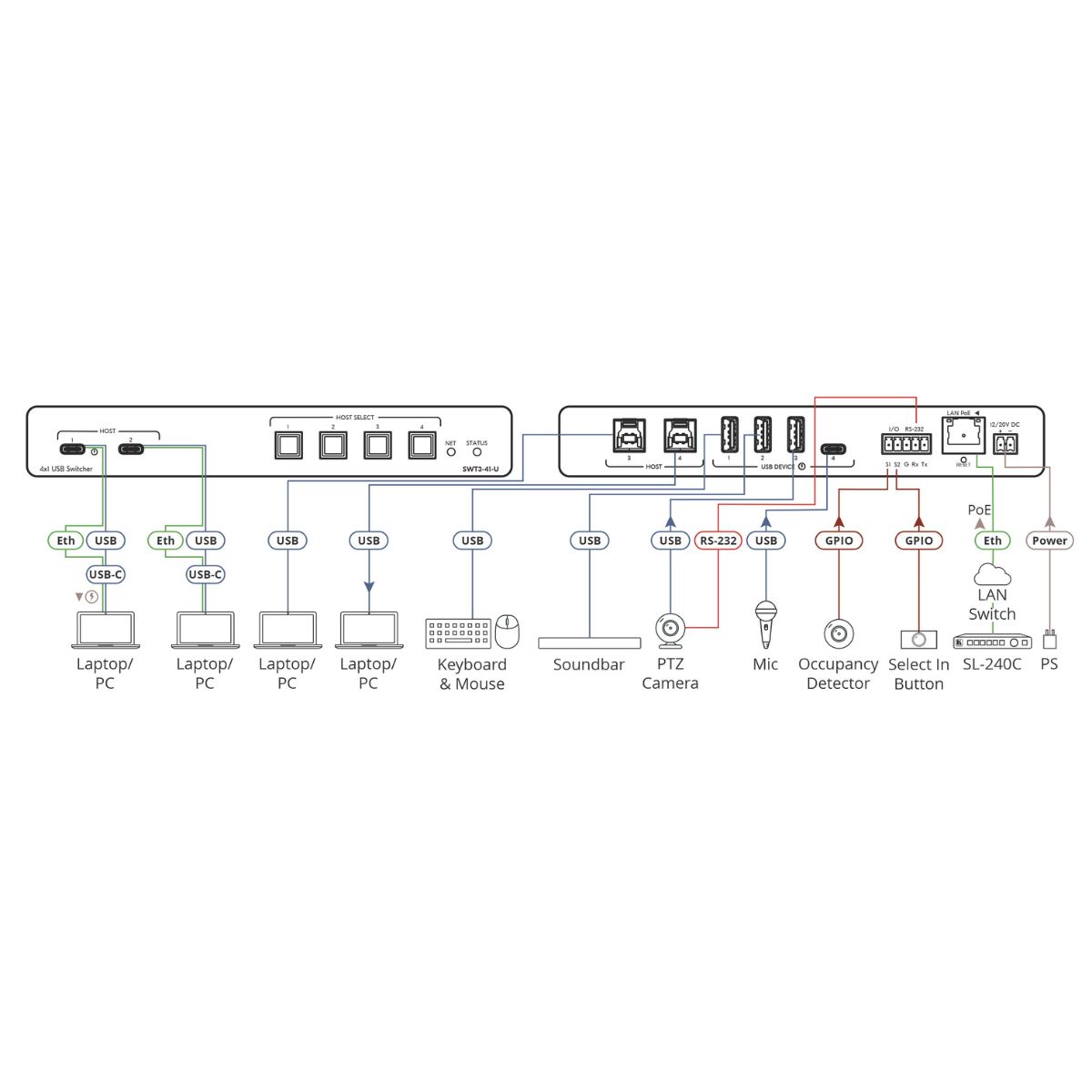

SWT3−41−U is a high−performance switcher with two USB−C and two USB−B ports for USB host devices connection and plug and play host user auto−switching experience based on active USB signal detection. The four connected USB peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient online meeting participants operation.

Contact to Seller
  • USB 3.2 host to devices switching
  • Built–in USB–C docking
  • PoE powering
  • Secured remote control and management
Download Product catalog

Hosts
  • 2 USB 3.2 & PD 3.0 Hosts: On USB type–C female connectors
  • 2 USB 3.2 Hosts: On USB–B female connectors

Devices
  • 3 USB 3.2 Devices: On USB–A female connectors
  • 1 USB 3.2 Device: On a USB type–C female connector

Ports
  • 1 Ethernet: On an RJ–45 female connector for LAN connection
  • 1 RS–232: On a 3–pin terminal block
  • 2 GPIO: On a 2–pin terminal block

USB Features
  • USB 3.2 Data Rate: Up to 10Gbps
  • Integrated USB Hubs: 1
  • Standards Compliance: USB 3.2 GEN 2, 2.0 and 1.1

Product Dimensions
  • 19.00cm x 19.50cm x 2.70cm (7.48" x 7.68" x 1.06" ) W, D, H

Product Weight
  • 0.9kg (2.0lbs) approx.
