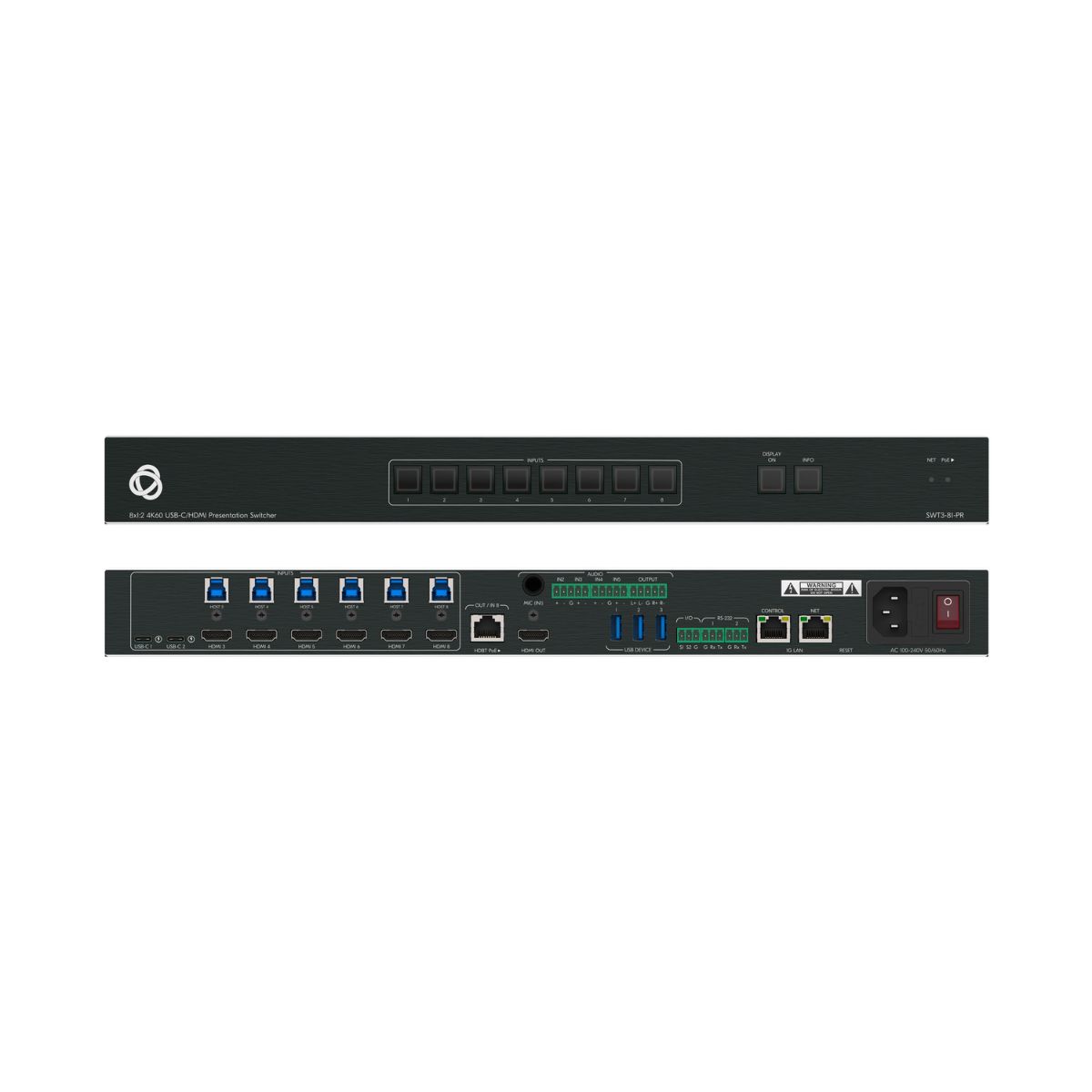

SWT3-81-PR

SWT3−81−PR is a high−performance video processing and fast−switching scaling switcher with coupled AV + USB routing. It has eight USB−C and HDMI/USB inputs, one interchangeable HDBaseT 3.0 input or output port, and mirrored HDMI output. The unit supports both local and remote content sharing and multi−view presentation capability. The switcher has integrated audio DSP and a rich set of analog and digital interfaces for a high−quality audio−visual experience during hybrid sessions in meeting spaces and halls.

Contact to Seller

Inputs
  • 2 Full-featured USB-C: On USB type–C female connectors
  • 6 HDMI: On HDMI female connectors
  • 1 Analog Mic: On a 6.3mm jack connector
  • 4 Analog Mic or 4 Balanced Mono Audio or 2 Balanced Stereo Audio: On 3–pin terminal block connectors

Outputs
  • 1 HDMI: On an HDMI female connector
  • 1 Analog Audio Balanced Stereo Line Level: On a 5–pin terminal block connector

Interchangeable Inputs/Outputs
  • 1 HDBT: On an RJ–45 female connector

Ports
  • 6 USB 3.2 Host: On USB type–B female connectors
  • 3 USB 3.2 Device: On USB type–A female connectors
  • 2 RS-232: On 3–pin terminal block connectors
  • 2 GPIO: On 2–pin terminal block connectors

Multi View
  • Windows Layouts: PiP, PoP, Quad, Stacked, Side–by–side, Split
  • Max Layout Inputs: 4

USB
  • Max USB 3.2 Data Rate: 10Gbps
  • Integrated USB Hubs (layers): 1
  • Standards Compliance: USB 3.2 GEN 2, 2.0, and 1.1



Download Product catalog
  •  Premium Presentation Switcher — High–resolution scaling switcher with AV + USB routing
  •  Fast <1sec AV Routing — Clean and instantaneous routing between switcher inputs and outputs, with smooth and uninterrupted transitions
  •  Dual–screen (MST) USB–C signal routing from one of the USB–C presenters to a local and remote display
  •  Advanced video processing for multi–view presentations including side–by–side and picture–in–picture effects
  •  High–Performance Scaling Experience — Built–in ProcAmp high–resolution scaling technology for optimal up or down image scaling
